Cigar Lighter Diagnosis
Cigar Lighter Diagnosis

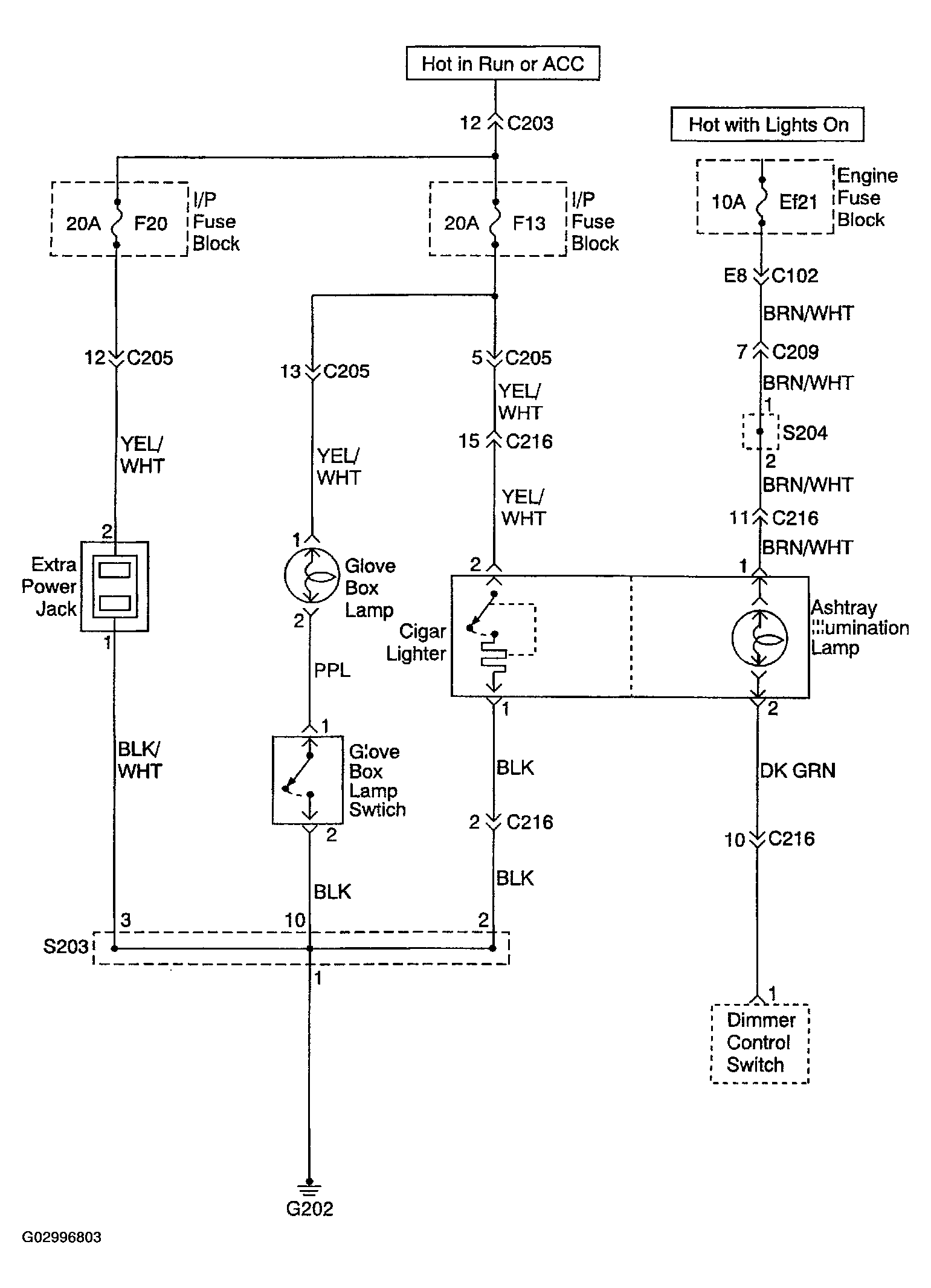

Fig 1: Cigar Lighter Inoperative Schematic
Courtesy of SUZUKI OF AMERICA CORP.

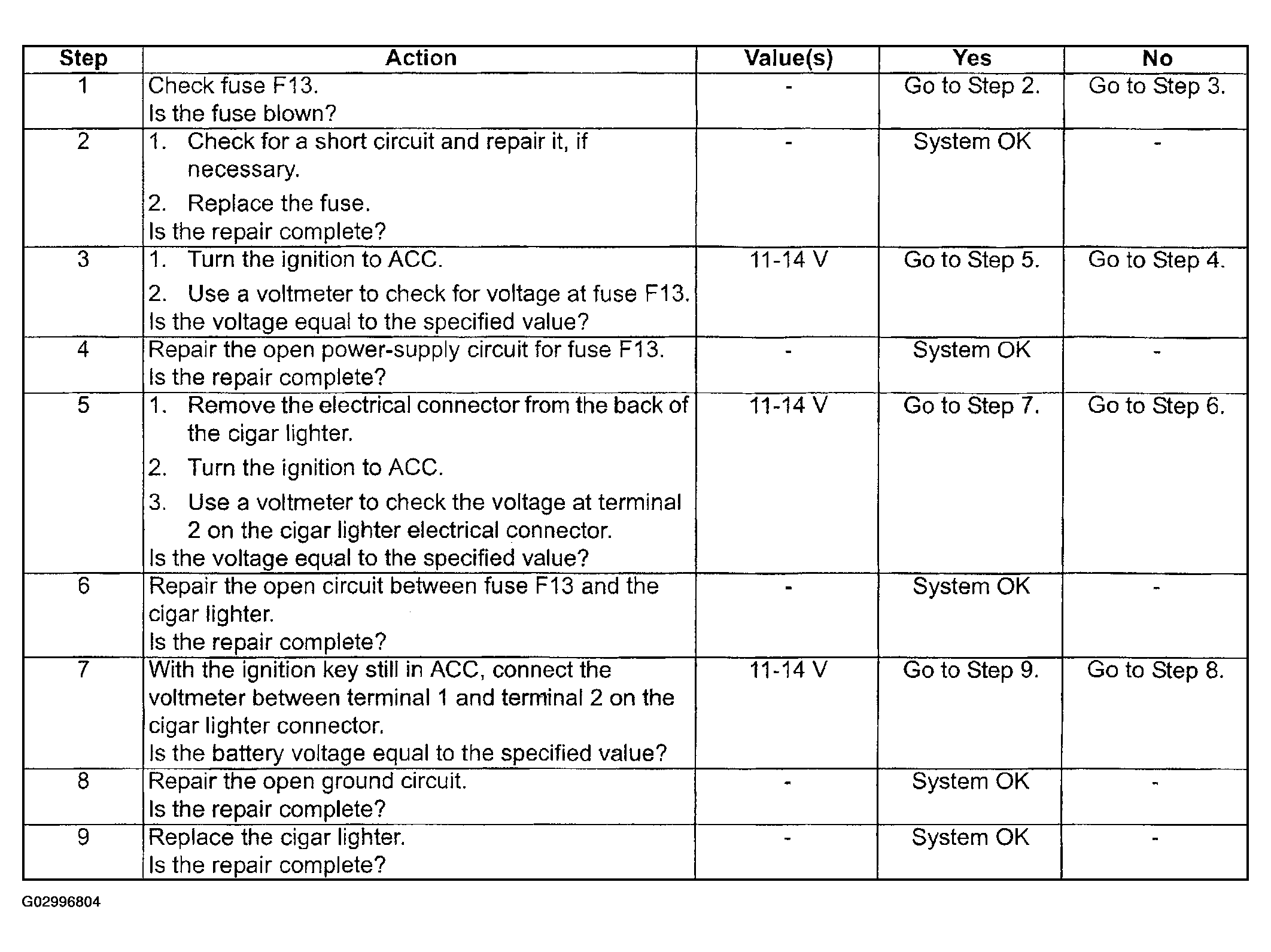

Fig 2: Cigar Lighter Inoperative Diagnosis Chart
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
