Instrument Cluster Circuit Wiring Diagram

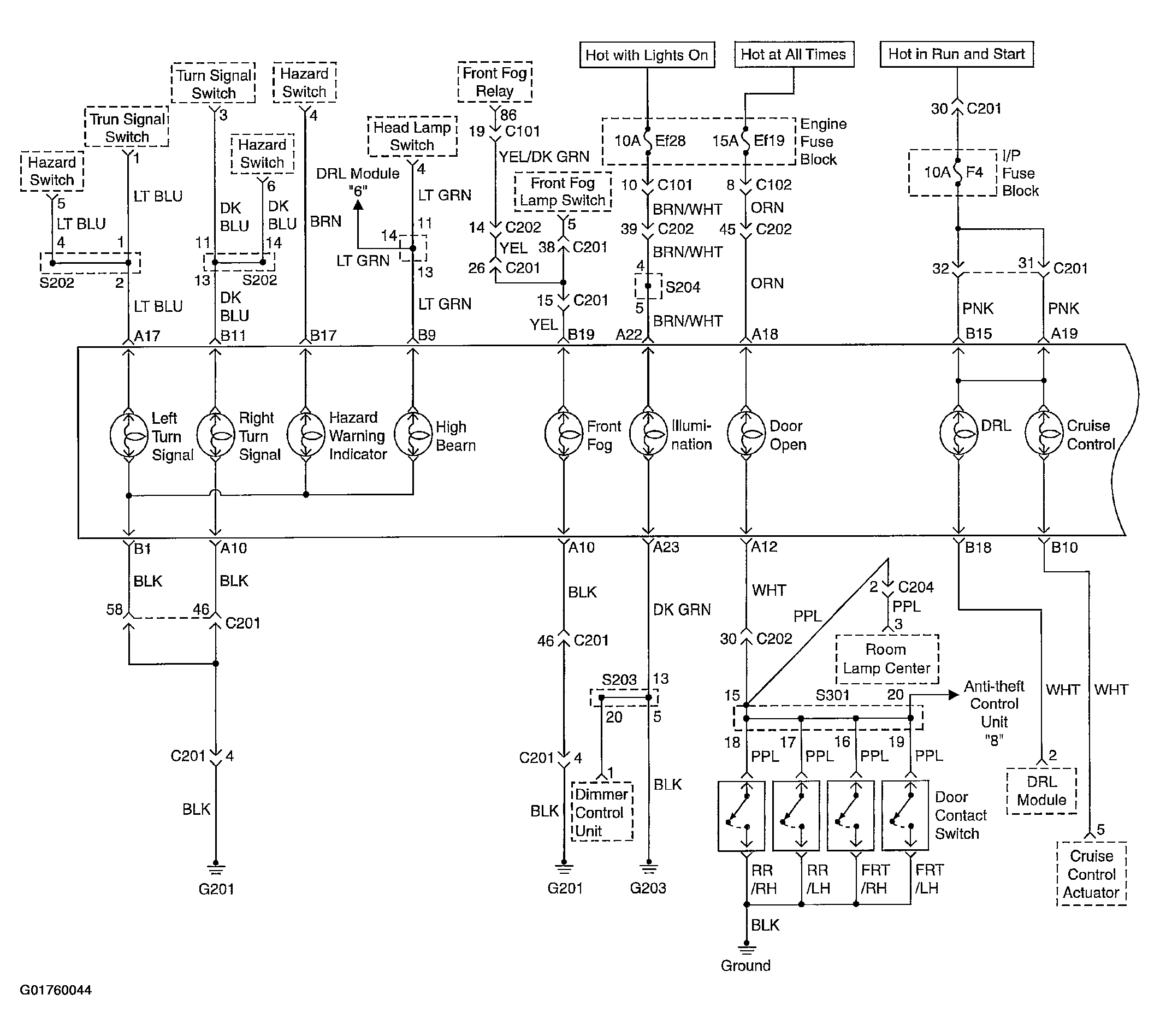

Fig 1: Identifying Instrument Cluster Circuit Wiring Diagram (1 of 2)
G01760044Courtesy of SUZUKI OF AMERICA CORP.

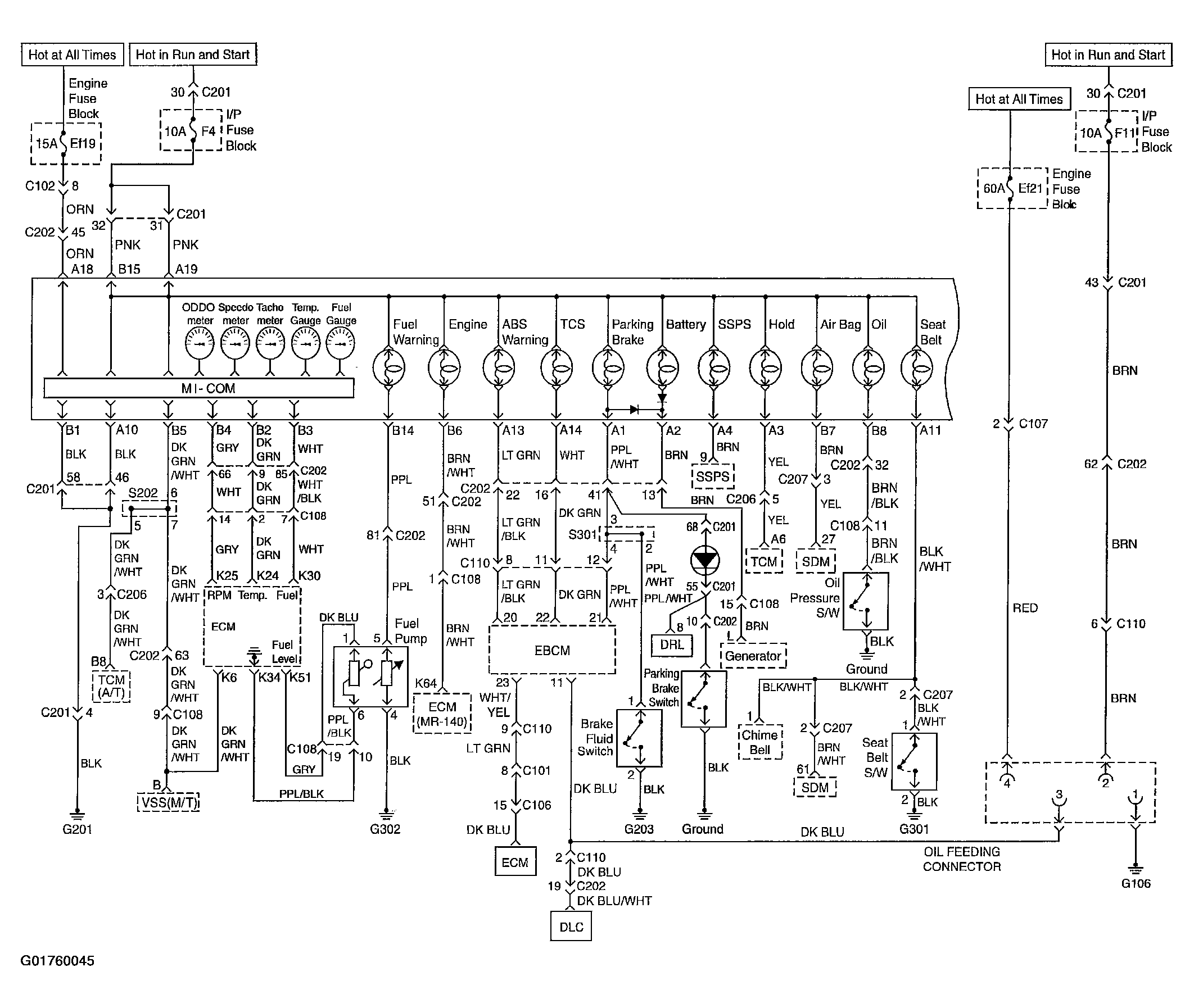

Fig 2: Identifying Instrument Cluster Circuit Wiring Diagram (2 of 2)
G01760045Courtesy of SUZUKI OF AMERICA CORP.
