Cigar Lighter and Extra Power Jack Circuit Wiring Diagram

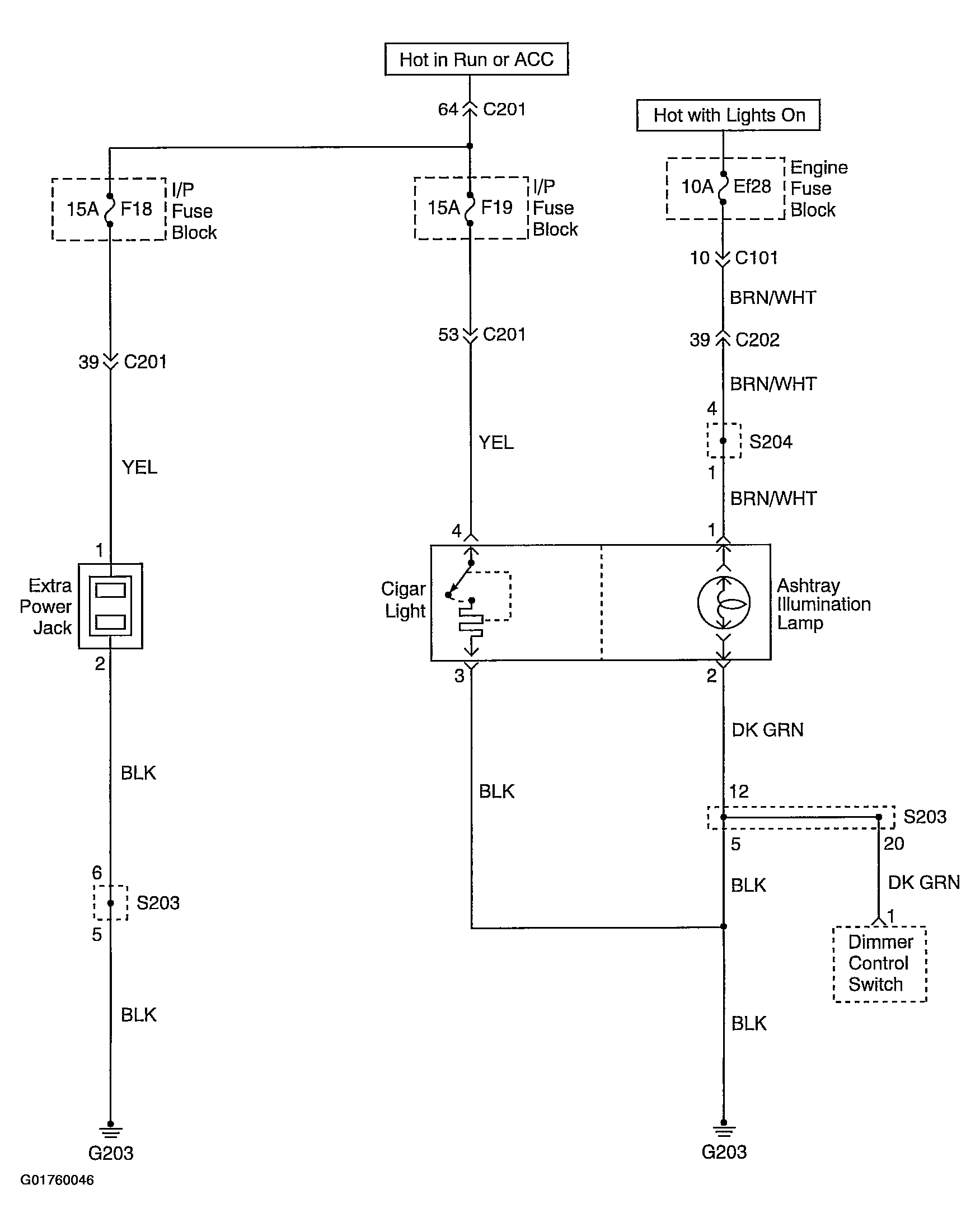

Fig 1: Identifying Cigar Lighter & Extra Power Jack Circuit Wiring Diagram

G01760046

Courtesy of SUZUKI OF AMERICA CORP.
