Digital Clock Diagnosis
>>
Digital Clock Inoperative
Digital Clock Inoperative

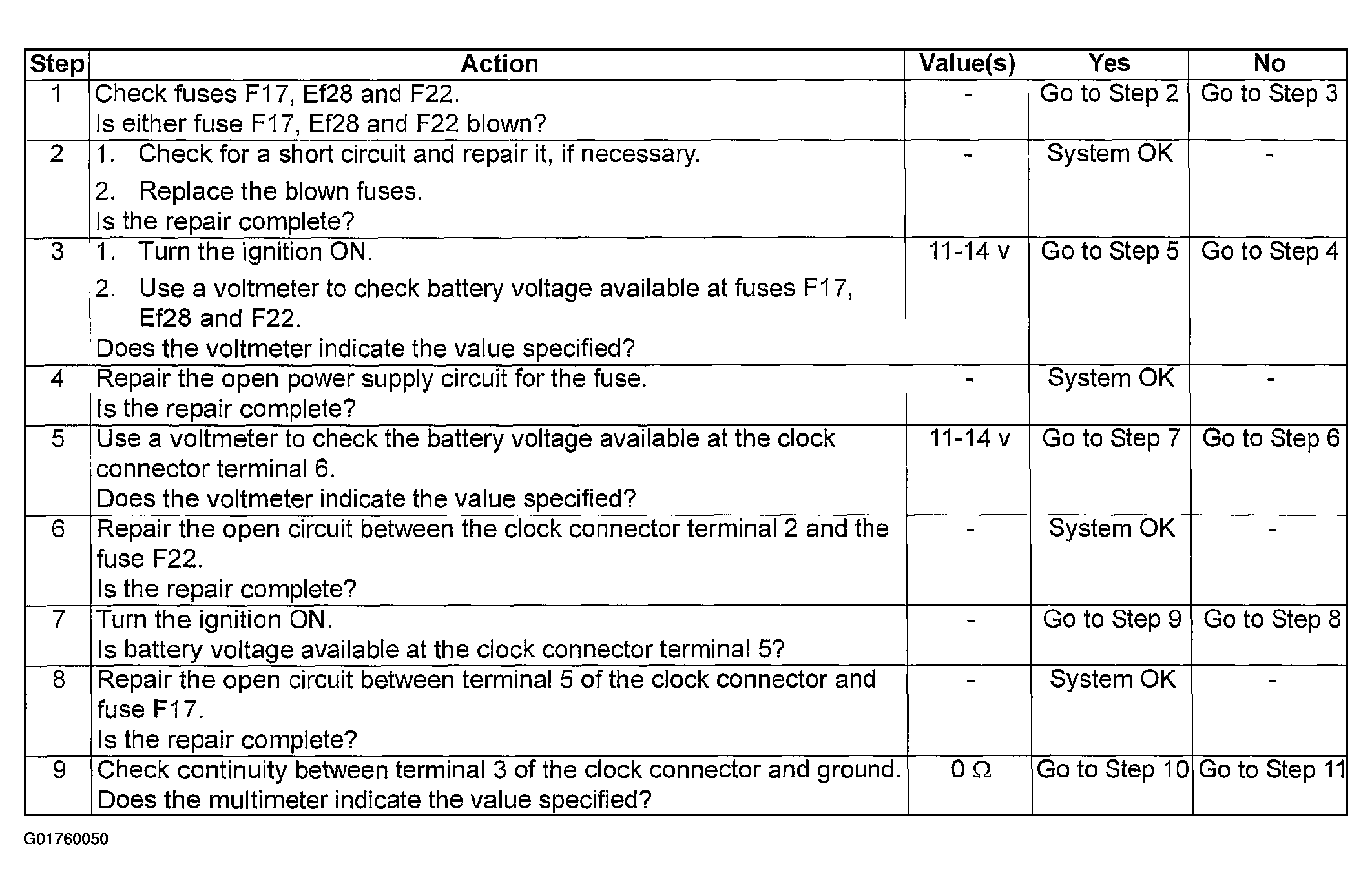

Fig 1: Digital Clock Inoperative - Diagnosis Table (1 of 2)
Courtesy of SUZUKI OF AMERICA CORP.

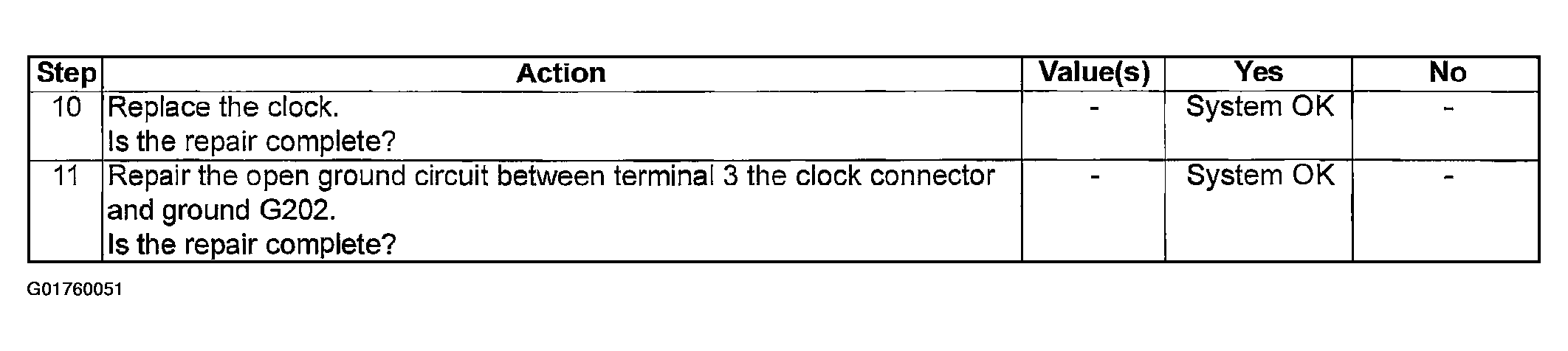

Fig 2: Digital Clock Inoperative - Diagnosis Table (2 of 2)
Courtesy of SUZUKI OF AMERICA CORP.
