Seat Belt Warning Chime Inoperative

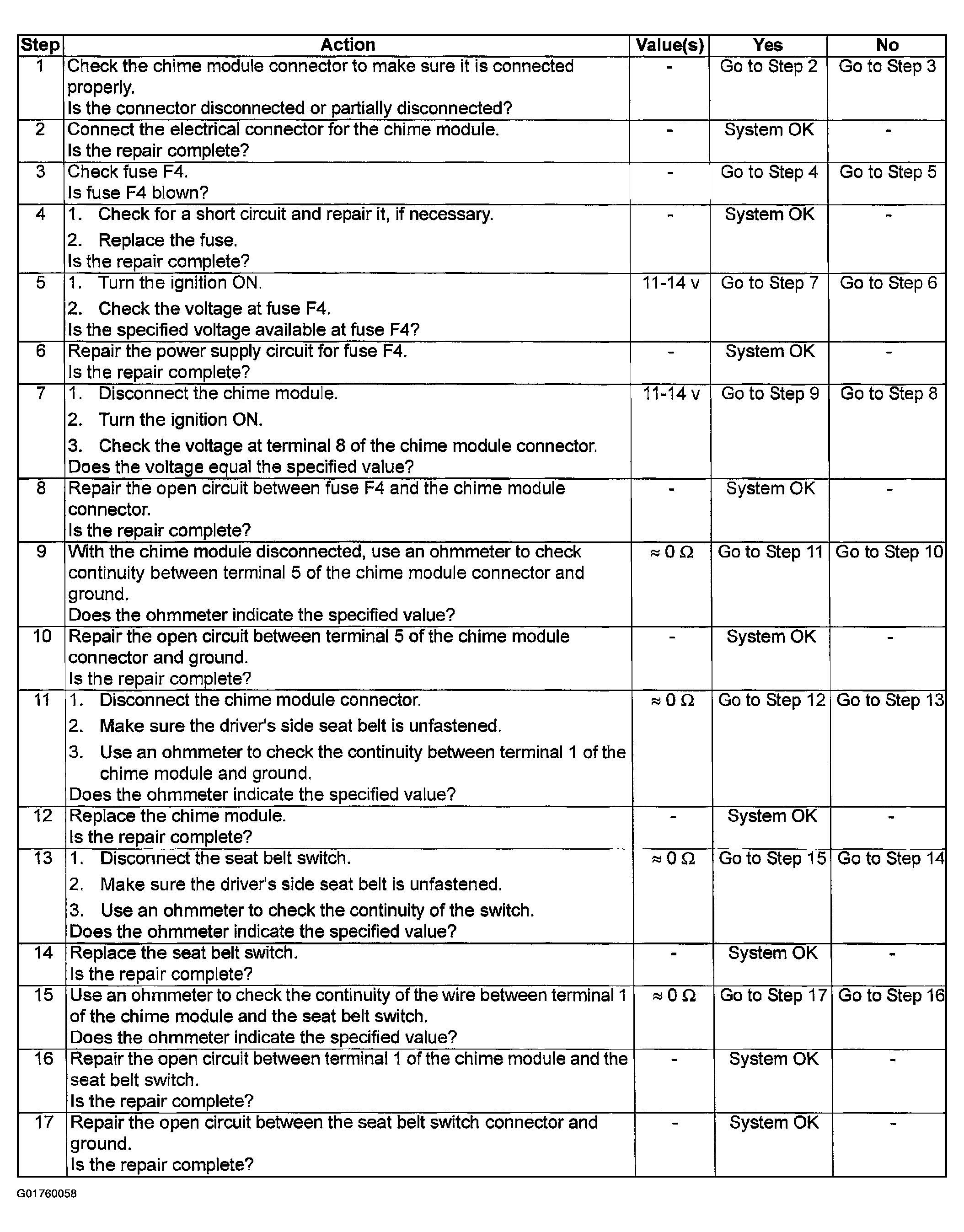

Fig 1: Seat Belt Warning Chime Inoperative - Diagnosis Table
G01760058Courtesy of SUZUKI OF AMERICA CORP.
