Instrument Panel Illumination Lamps Inoperative

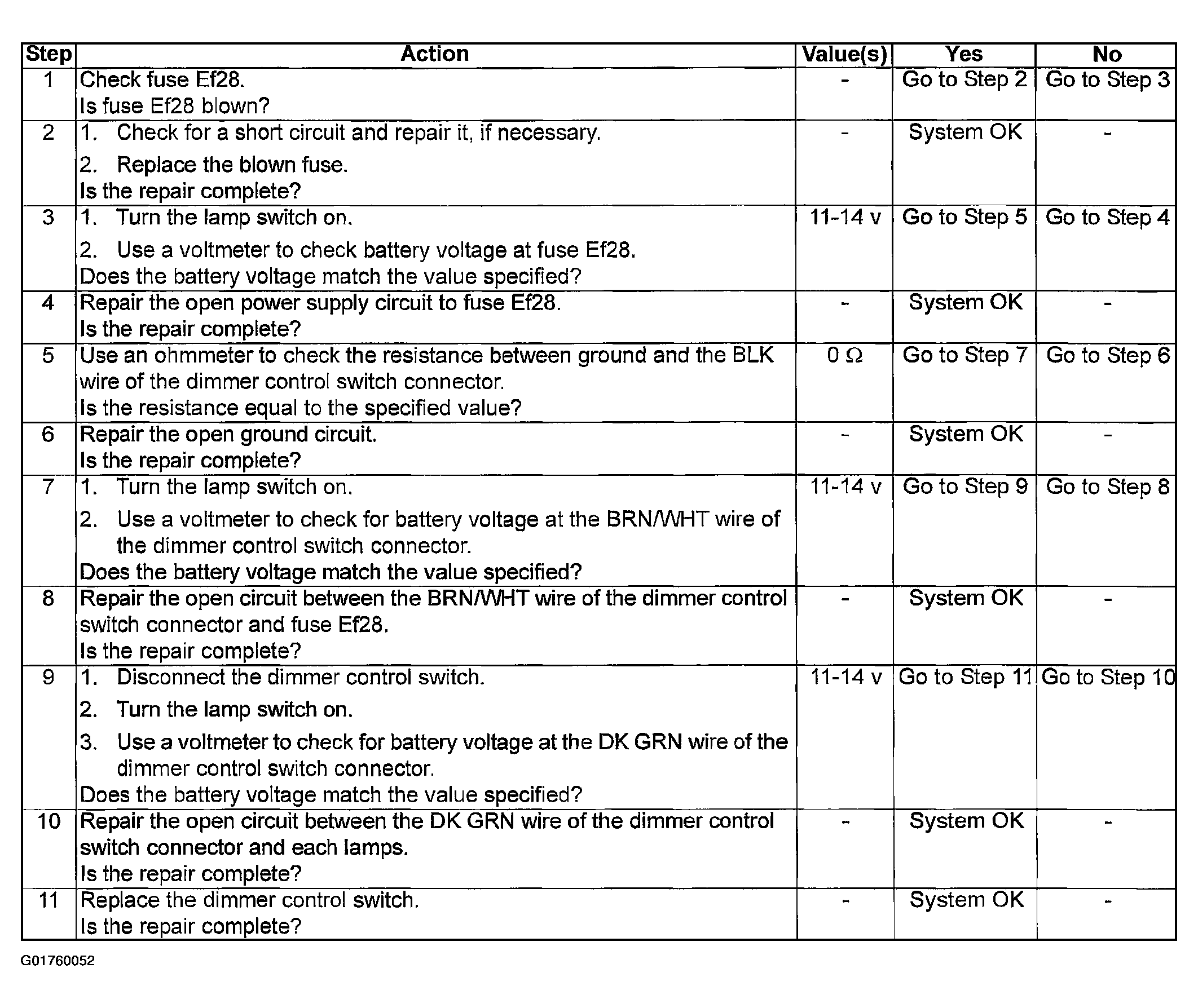

Fig 1: Instrument Panel Illumination Lamps Inoperative - Diagnosis Table

G01760052

Courtesy of SUZUKI OF AMERICA CORP.
