Key Reminder Chime Inoperative
Key Reminder Chime Inoperative

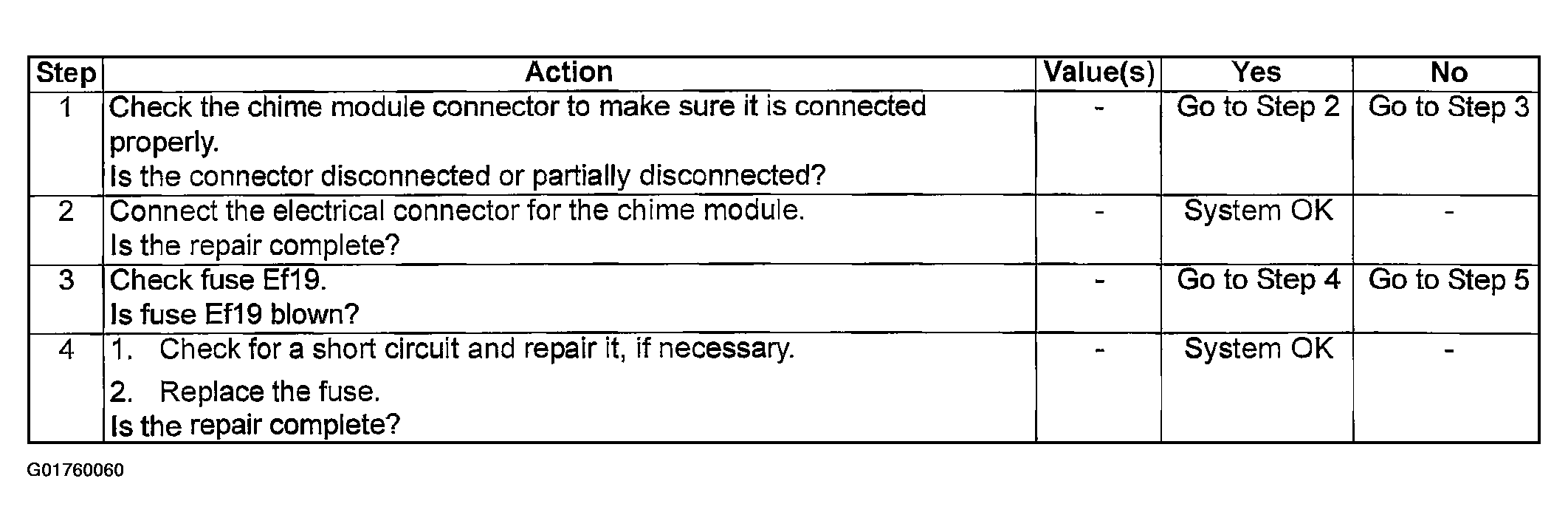

Fig 1: Key Reminder Chime Inoperative - Diagnosis Table (1 of 2)
Courtesy of SUZUKI OF AMERICA CORP.

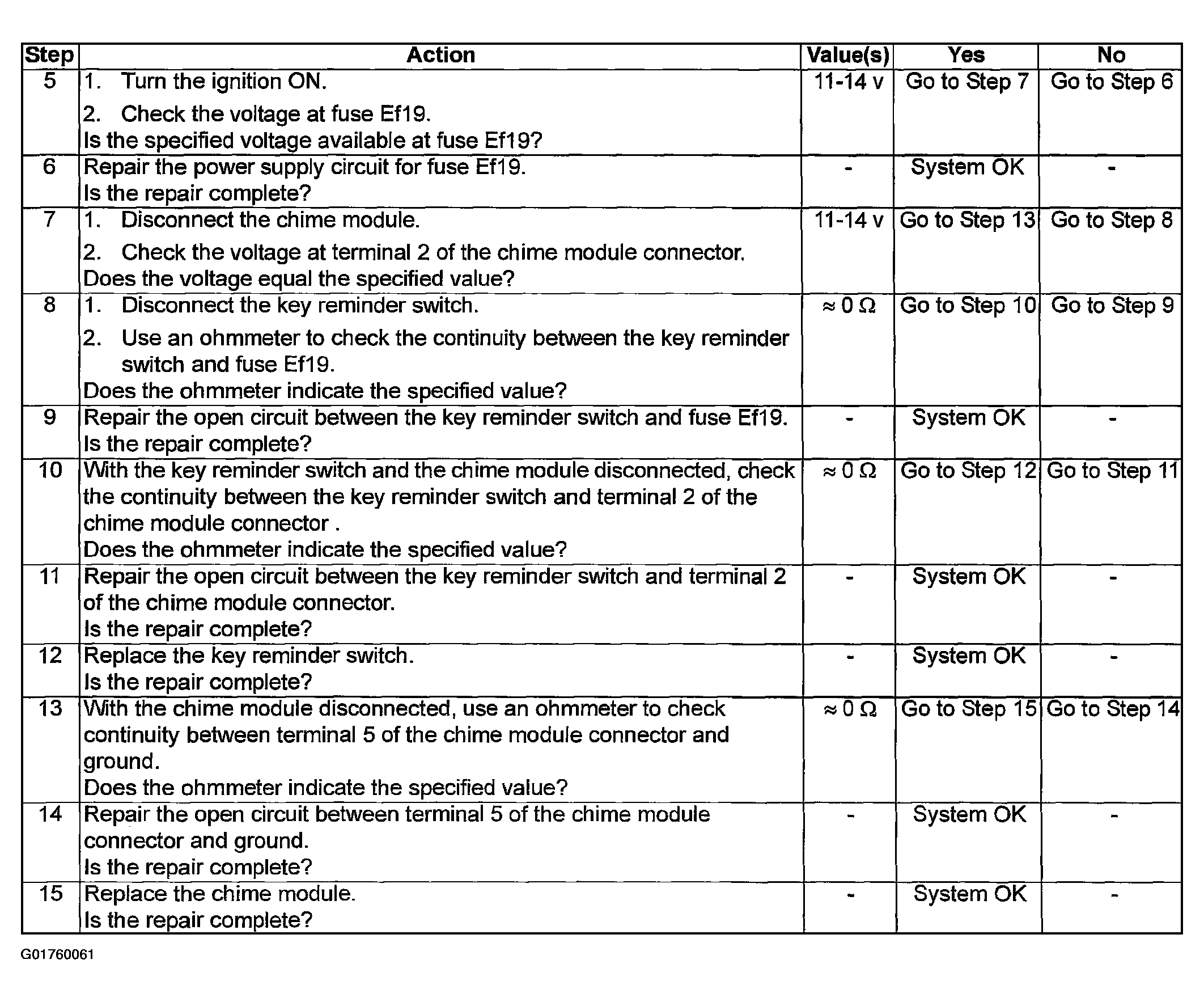

Fig 2: Key Reminder Chime Inoperative - Diagnosis Table (2 of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
