Home >> Suzuki >> 2002 >> Aerio SX, Automatic >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Disc & Drum >> Overhaul >> Rear Wheel Cylinder

Rear Wheel Cylinder

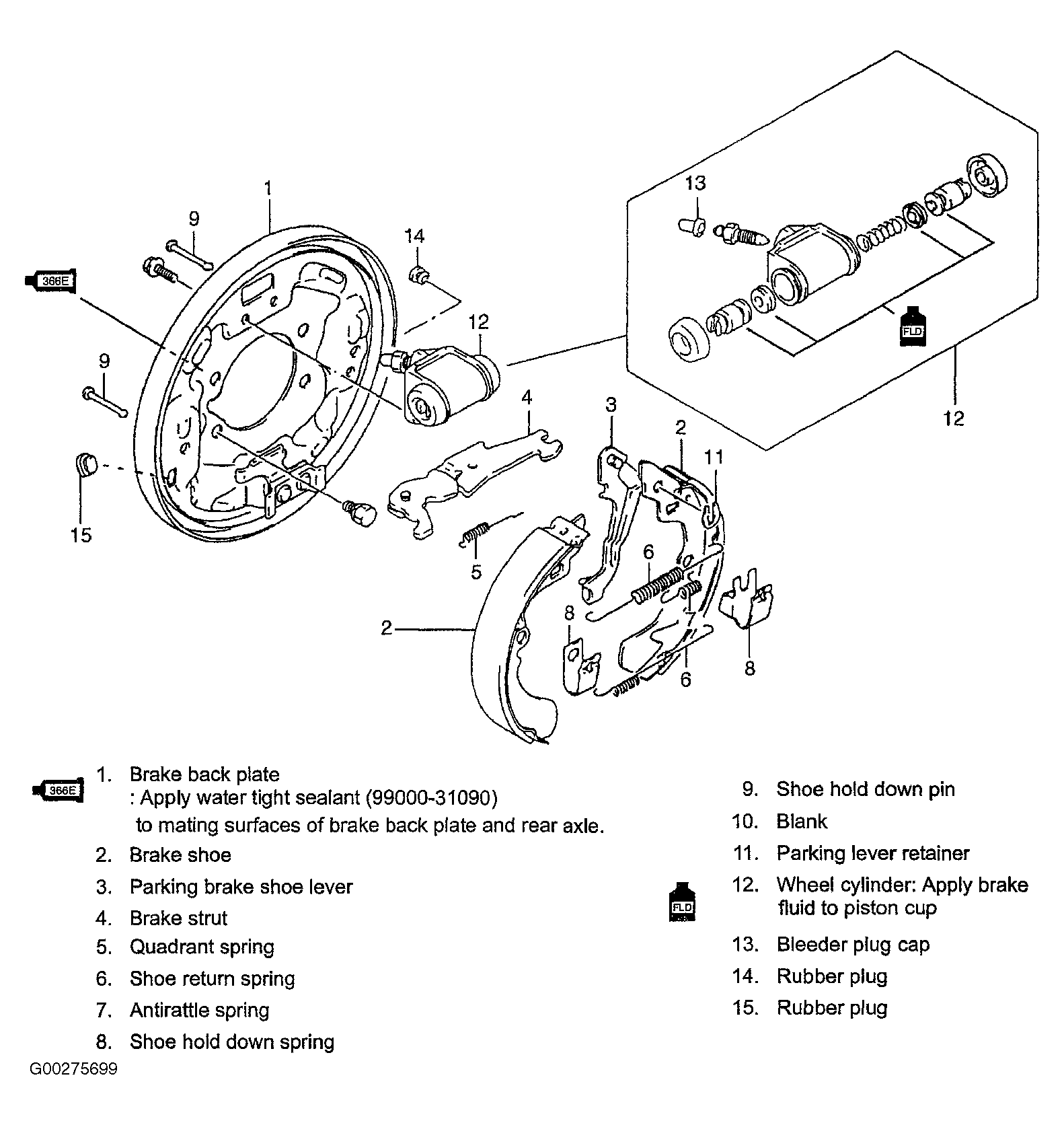

NOTE: Use illustration for exploded view of rear wheel cylinder assembly. See Figure, Figure and Figure .
