Front Brake Caliper: Notes

NOTE: When overhauling caliper, if cylinder bores are pitted or scored beyond repair, replace entire assembly.

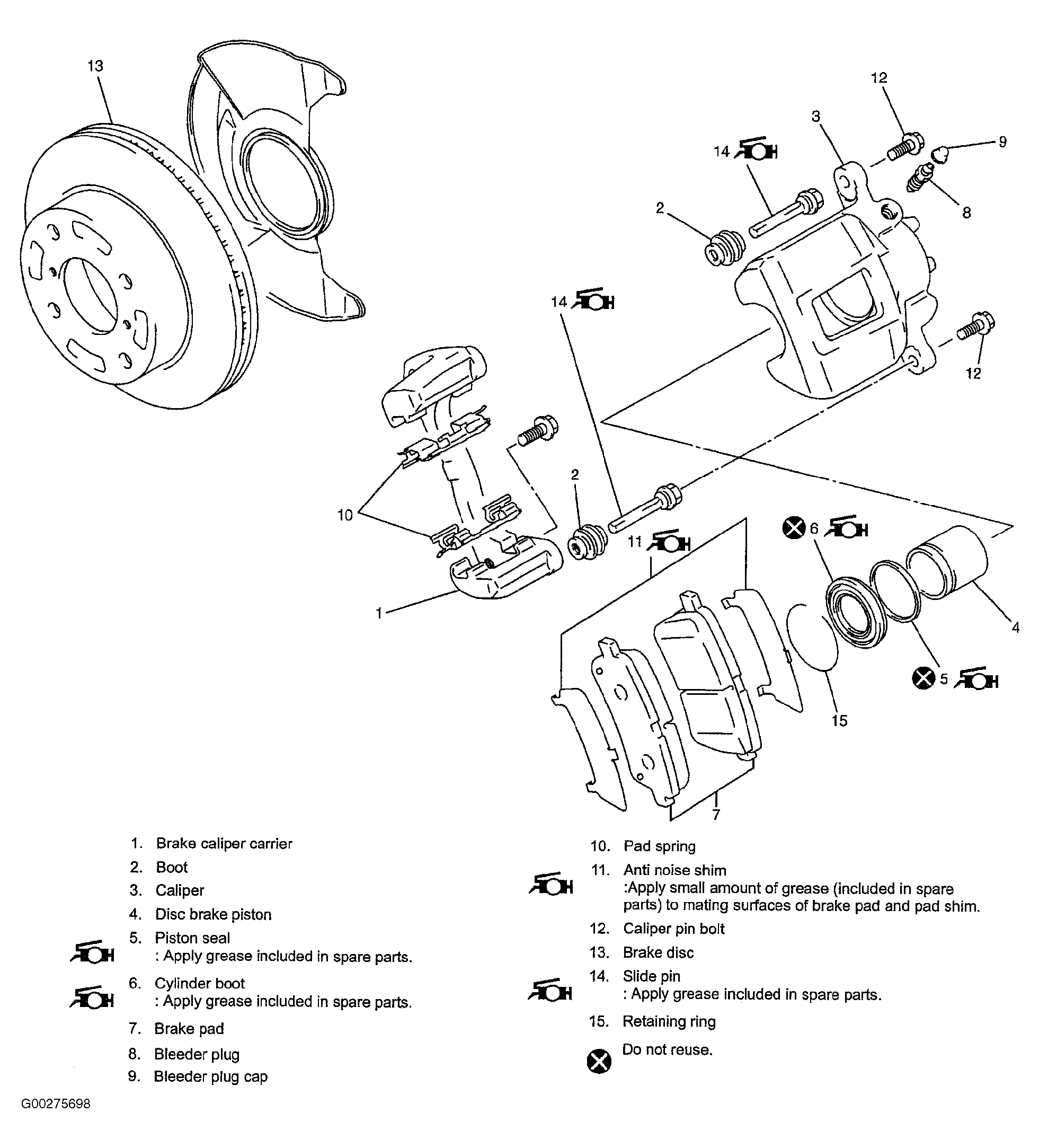

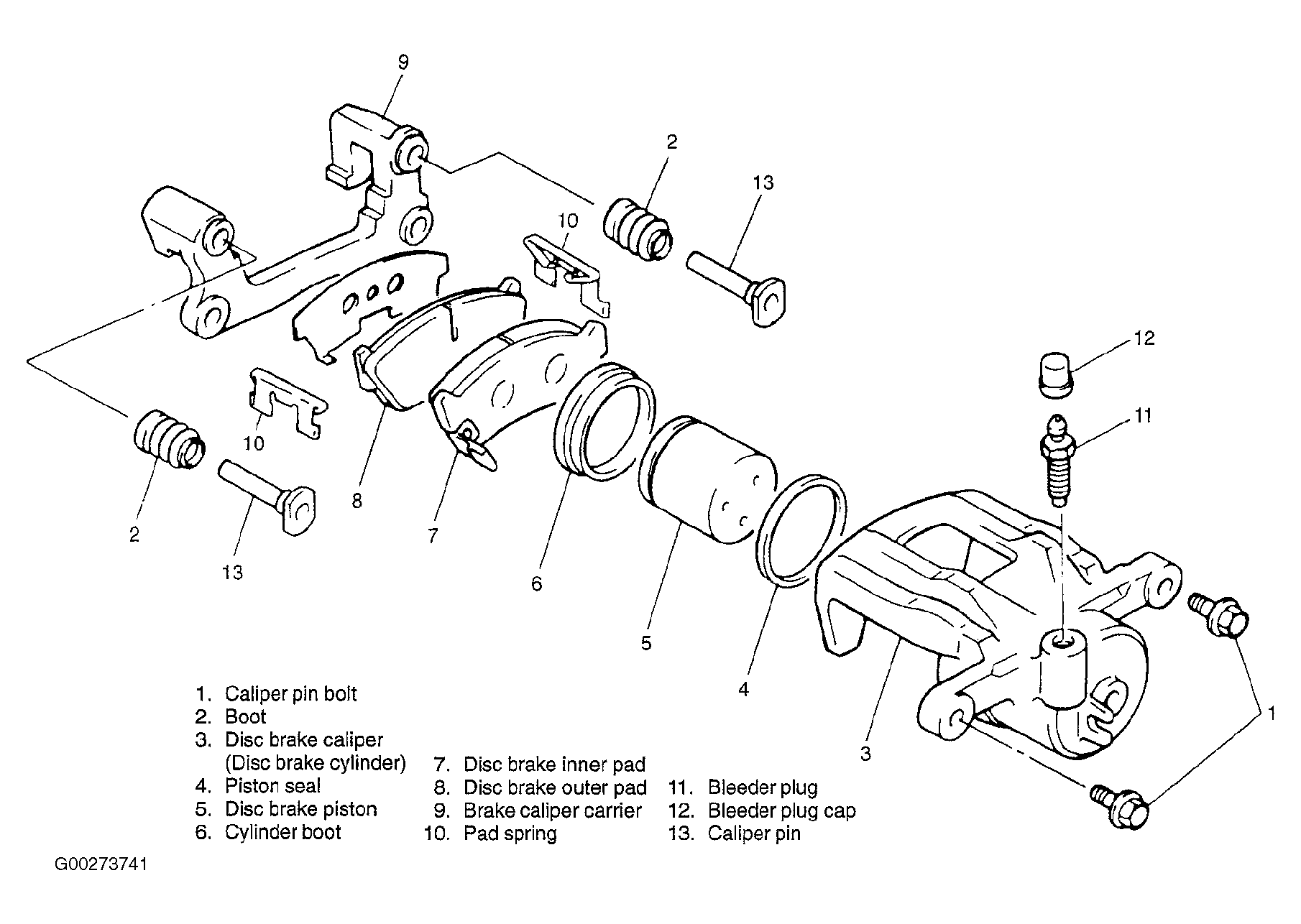

NOTE: Use illustration for exploded view of front brake caliper assembly. See Figure-Figure .
