Load Sensing Proportioning Valve: Adjustment

If rear brake pressure is higher than specification, move stay "A" to direction "a" and if it is lower, to direction "b". See Fig 1.

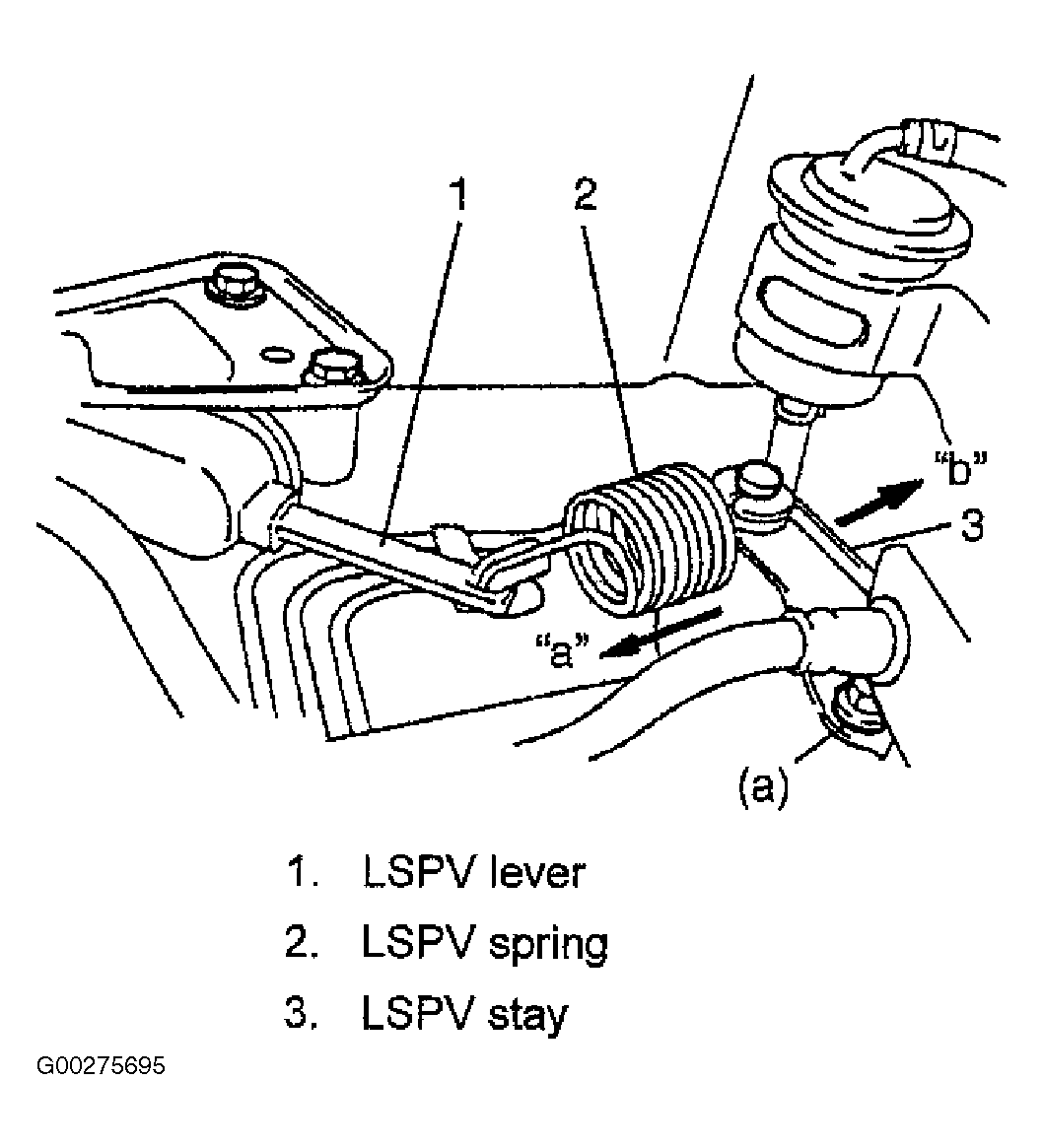

Fig 1: Adjusting Load Sensing Proportioning Valve

Courtesy of SUZUKI OF AMERICA CORP.
