Fuel Level Sensor Inspection

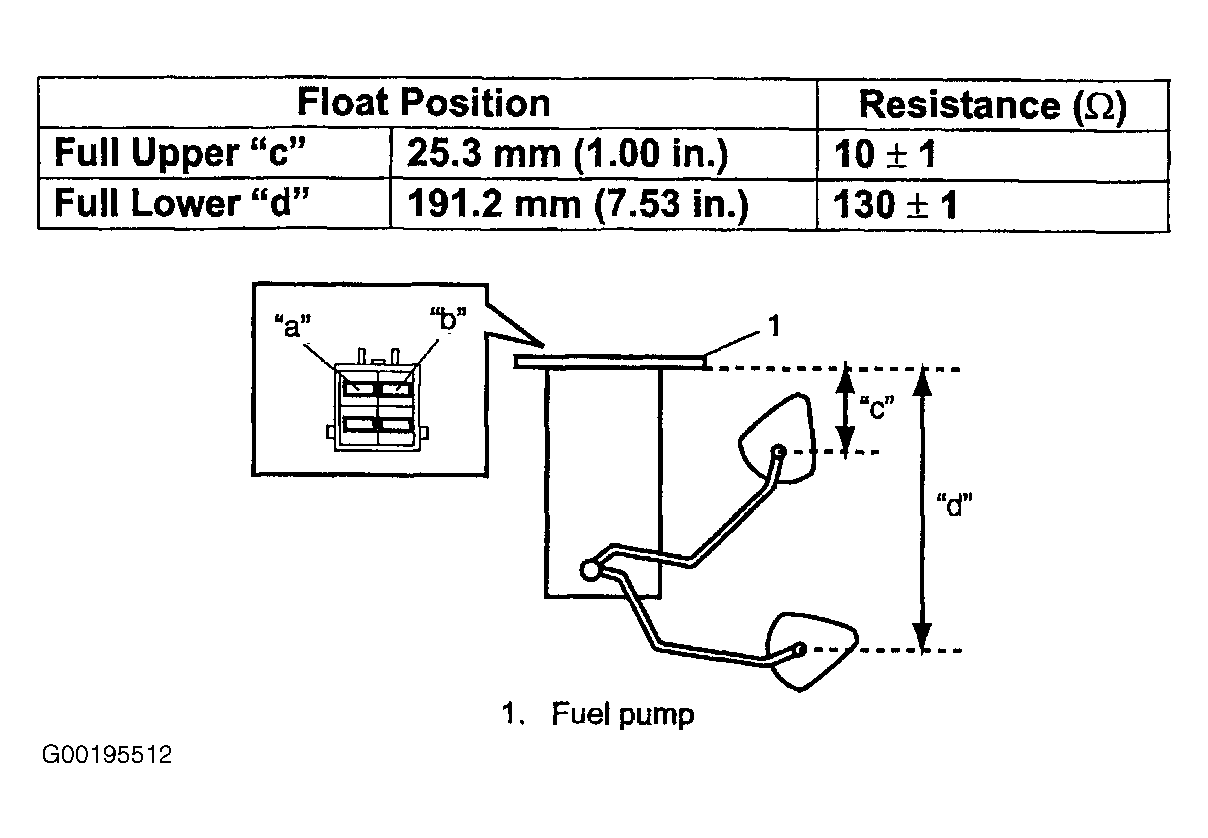

- Check that resistance between terminal "a" and "b" of fuel level sensor changes with change of float position. See Fig 1
.
- Check resistance between terminals "a" and "b" in each float position in the following. See Fig 1
.
Courtesy of SUZUKI OF AMERICA CORP.
