Blower Motor Relay Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative (-) cable at battery.
  2. Disable air bag system.

    For H25 engine model, refer to AIR BAG RESTRAINT SYSTEMS .

    For H27 engine model, refer to AIR BAG RESTRAINT SYSTEMS .

  3. Open glove box, then remove screw.
  4. Remove glove box.
  5. Disconnect relay coupler (1).
  6. Remove blower motor relay (2) by loosening its fastening screw (3).

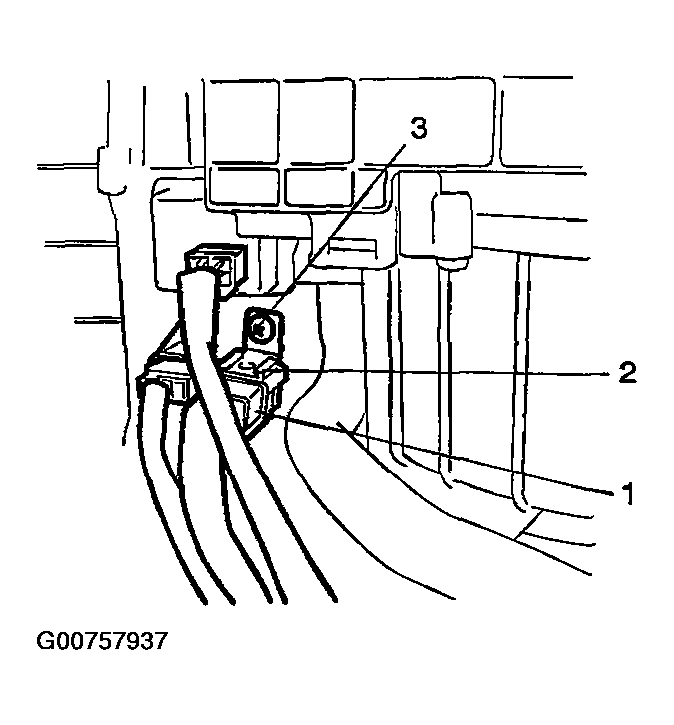

Fig 1: Removing Blower Motor Relay
G00757937Courtesy of SUZUKI OF AMERICA CORP.
