Air Intake Actuator Inspection

WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove air intake actuator. See Removal  .
  2. Connect battery positive (+) terminal to terminal "a" and battery negative (-) terminal to terminal "c". Check if position of air intake actuator is REC.
  3. Connect battery positive (+) terminal to terminal "a" and battery negative (-) terminal to terminal "b". Check if position of air intake actuator is MIX.
  4. Connect battery positive (+) terminal to terminal "a" and battery negative (-) terminal to terminal "d". Check if position of air intake actuator is FRESH.

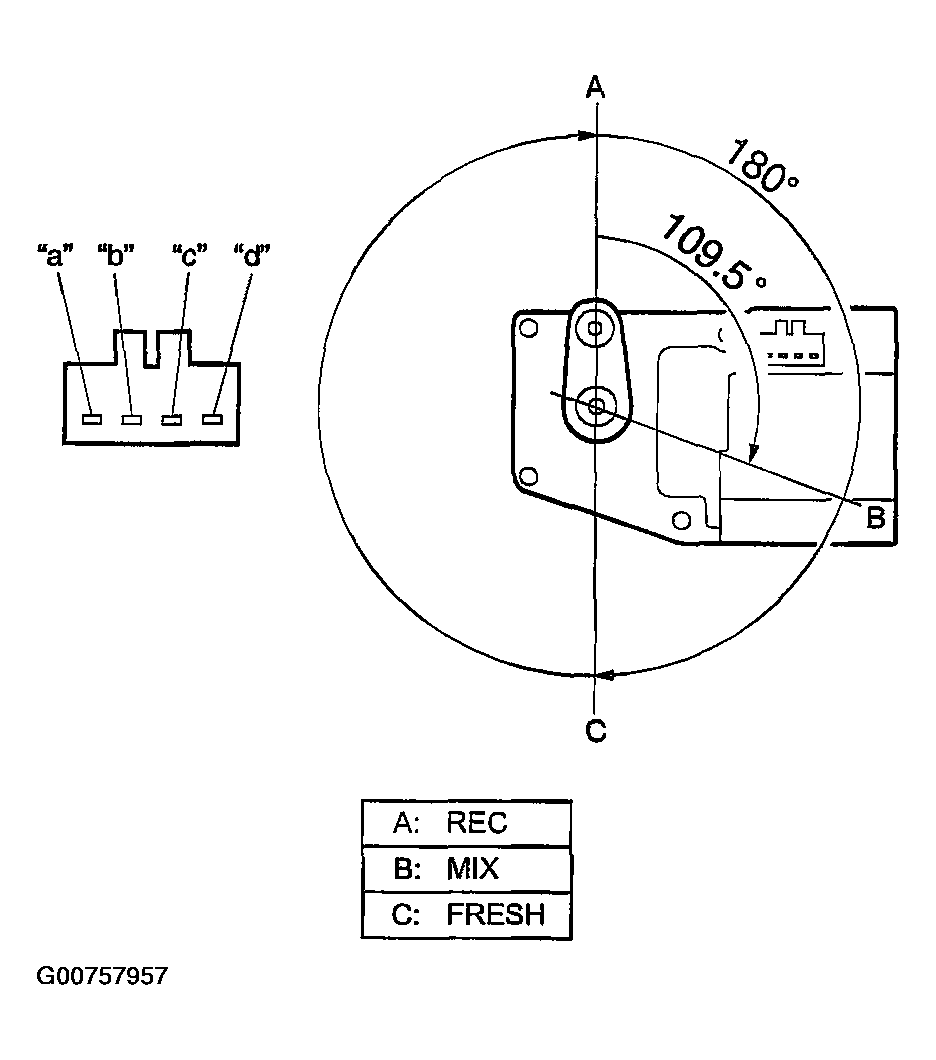

Fig 1: Identifying Air Intake Actuator
G00757957Courtesy of SUZUKI OF AMERICA CORP.
