Contact Coil and Combination Switch Assembly Removal and Installation: Installation

WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Check to make sure that vehicle's front tires are set at straight-ahead position and then ignition switch is at "LOCK" position.
Install contact coil and combination switch assembly to steering column.
NOTE: New contact coil and combination switch assembly is supplied with contact coil set and held at its center position with a lock pin (1). Remove this lock pin after installing contact coil and combination switch assembly to steering column.

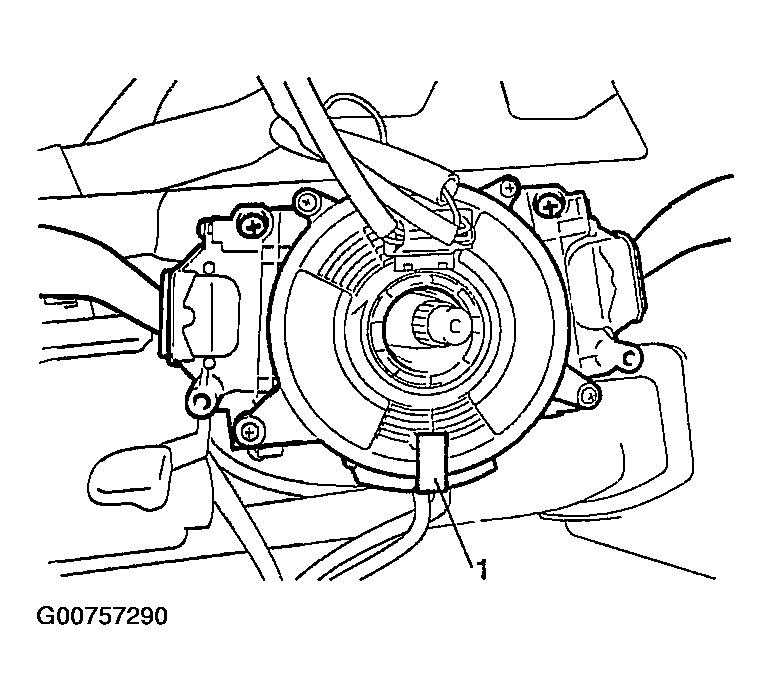

Fig 1: Installing Contact Coil & Combination Switch
Courtesy of SUZUKI OF AMERICA CORP.
Connect all connectors that have been removed in Removal .
Install steering column upper cover (2) and lower cover (3), and then tighten steering column cover screws (1).
CAUTION: When installing lower cover (3) and upper cover (2), be careful so that contact coil and combination switch lead wire is not caught between covers.

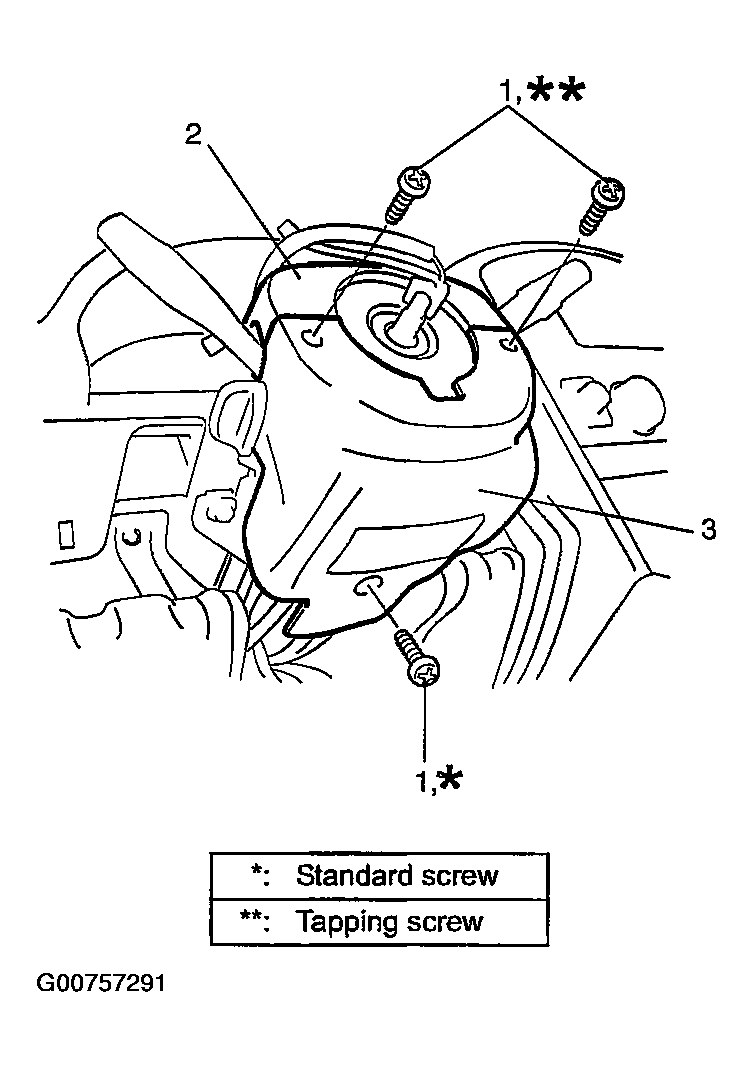

Fig 2: Installing Steering Column Upper & Lower Cover
Courtesy of SUZUKI OF AMERICA CORP.
Install steering column hole cover (1).

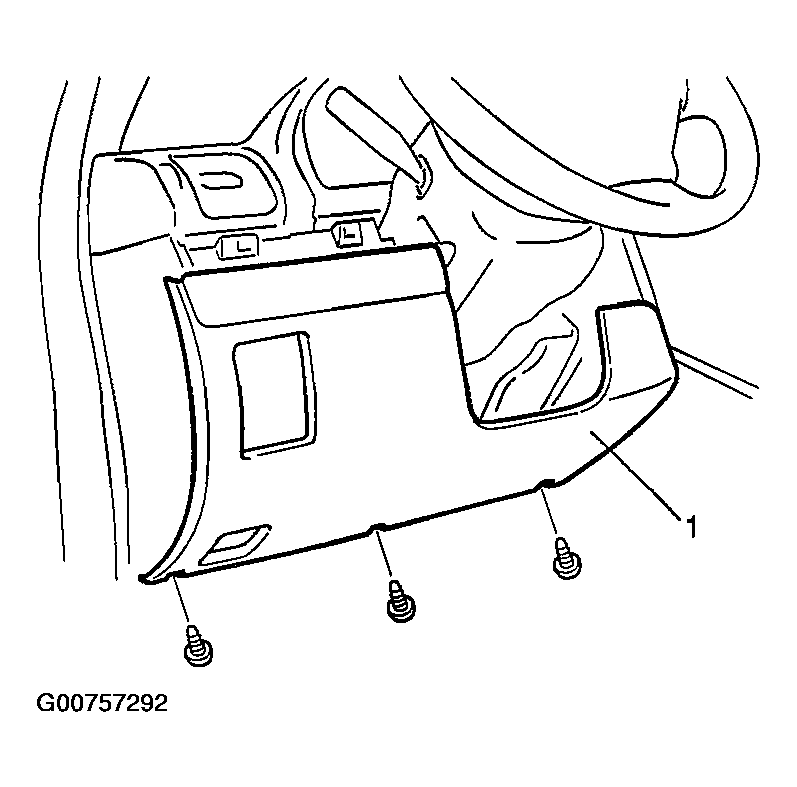

Fig 3: Installing Steering Column Hole Cover
Courtesy of SUZUKI OF AMERICA CORP.
Install steering wheel to steering column. Refer to Steering Wheel Removal and Installation .
