Manual Transmission Intermediate Case & Front Case (Location of Knock & Plug) Assembly

WARNING: This page is about a different car, the 2004 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

Install knock pin (1) and plug (2) (sealant applied) to front case as shown in the figure.
"A": Sealant 99000-31110

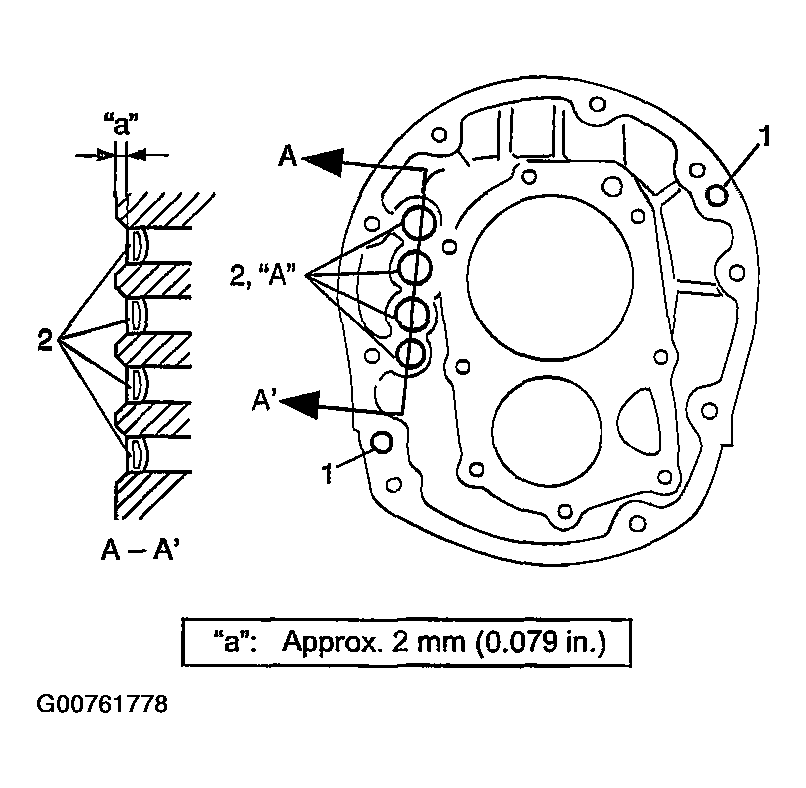

Fig 1: Installing Knock Pin & Plug To Front Case
Courtesy of SUZUKI OF AMERICA CORP.
Install knock pin (1) into front case (2) as shown in the figure.

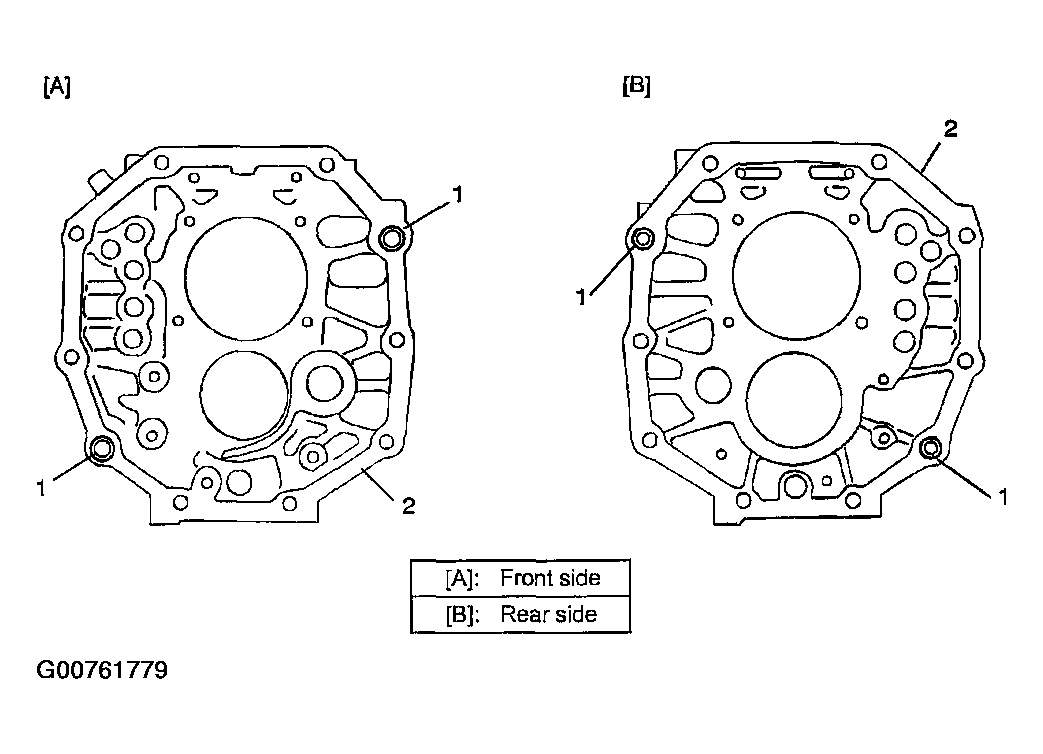

Fig 2: Installing Knock Pin Into Front Case
Courtesy of SUZUKI OF AMERICA CORP.
