Manual Transmission Gear Oil Inspection & Change

WARNING: This page is about a different car, the 2004 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

Before changing or inspecting oil, be sure to stop engine and lift vehicle horizontally.
With vehicle lifted up, check oil level and leakage. If leakage exists, correct or repair it.
Drain old oil removing drain plug (1).
NOTE:
- Do not drain transmission oil from plug (4).
- Whenever vehicle is hoisted for any service work other than oil change, check for oil leakage.
- If water or rust is mixed in drained oil, be sure to check breather hose and boot of transmission.
Fill new specified oil as shown by specified amount (up to level hole).
NOTE:
- It is highly recommended to use SAE 75W-90 gear oil.
  Gear oil specifications

  Oil grade: API GL-4

  Viscosity: SAE 75W-85, 75W-90 or 80W-90

  Transmission gear oil capacity: 2.3 liters (4.9 / 4.0 US / Imp. pt)
Torque drain plug (1) and level/filler plug (2) as specified.

CAUTION: Transmission oil must not be poured through gear shift control lever part.

Sealant: 99000-31110

Tightening torque

Oil drain plug and level/filler plug (on transmission case) (a): 37 N.m (3.7 kg-m, 27.0 lb-ft)

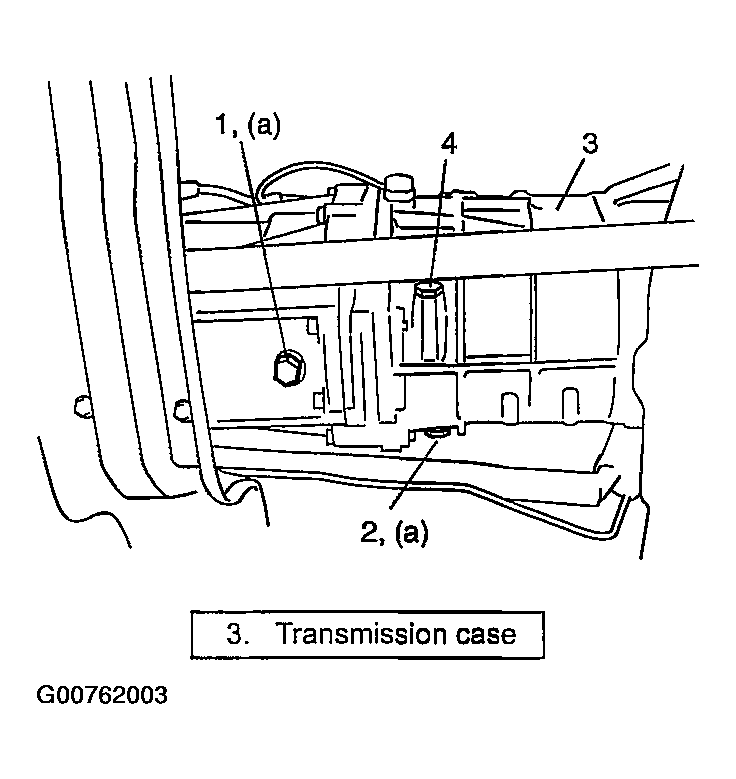

Fig 1: Locating Drain Plug & Level/Filler Plug

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: SAE Viscosity Chart

Courtesy of SUZUKI OF AMERICA CORP.
