Countershaft & Reverse Idle Gear Disassembly & Assembly: Disassembly

WARNING: This page is about a different car, the 2004 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

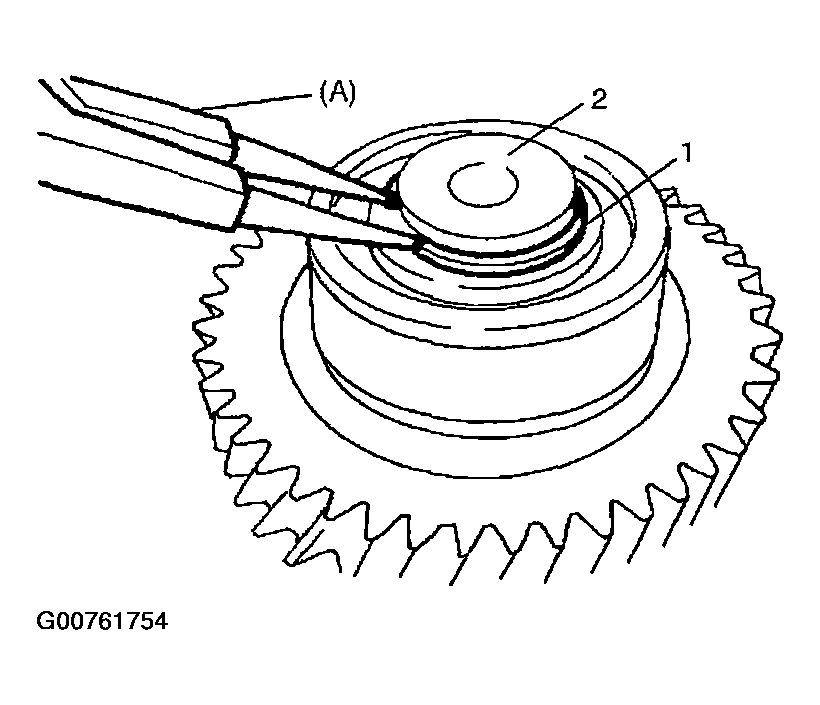

  1. Remove circlip (1) from countershaft (2).

    Special tool

    (A):  09900-06107

    Fig 1: Removing Circlip From Countershaft
    G00761754Courtesy of SUZUKI OF AMERICA CORP.
  2. Pull out countershaft front bearing (3) from countershaft by using bearing puller (4), hydraulic press (1) and rod (diameter approx. 22 mm (0.87 in.)) (2).
Fig 2: Pulling Out Countershaft Front Bearing From Countershaft
G00761755Courtesy of SUZUKI OF AMERICA CORP.
