Countershaft & Reverse Idle Gear Disassembly & Assembly: Assembly

WARNING: This page is about a different car, the 2004 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

Set inner race (2) to countershaft front bearing (1) and press-fit bearing with hydraulic press (3) and special tool.
NOTE: When installing bearing, bring it so that its groove (4) for C-ring as shown.

Special tool

(A): 09940-54950

Fig 1: Press-Fitting Bearing
Courtesy of SUZUKI OF AMERICA CORP.
Select circlip that will make its thrust clearance 0.1 mm (0.0039 in.) or less and install it.

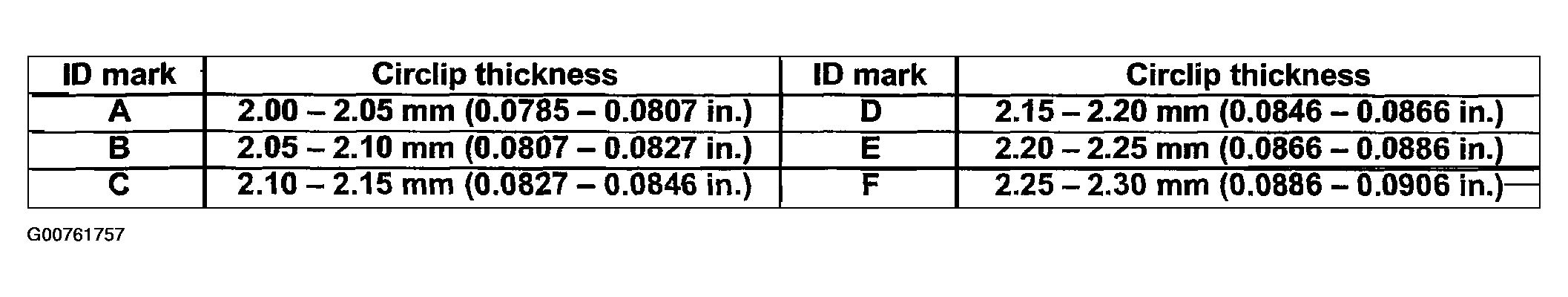

Fig 2: Circlip Thickness Specifications Table
Courtesy of SUZUKI OF AMERICA CORP.

Special tool

(B): 09900-06107

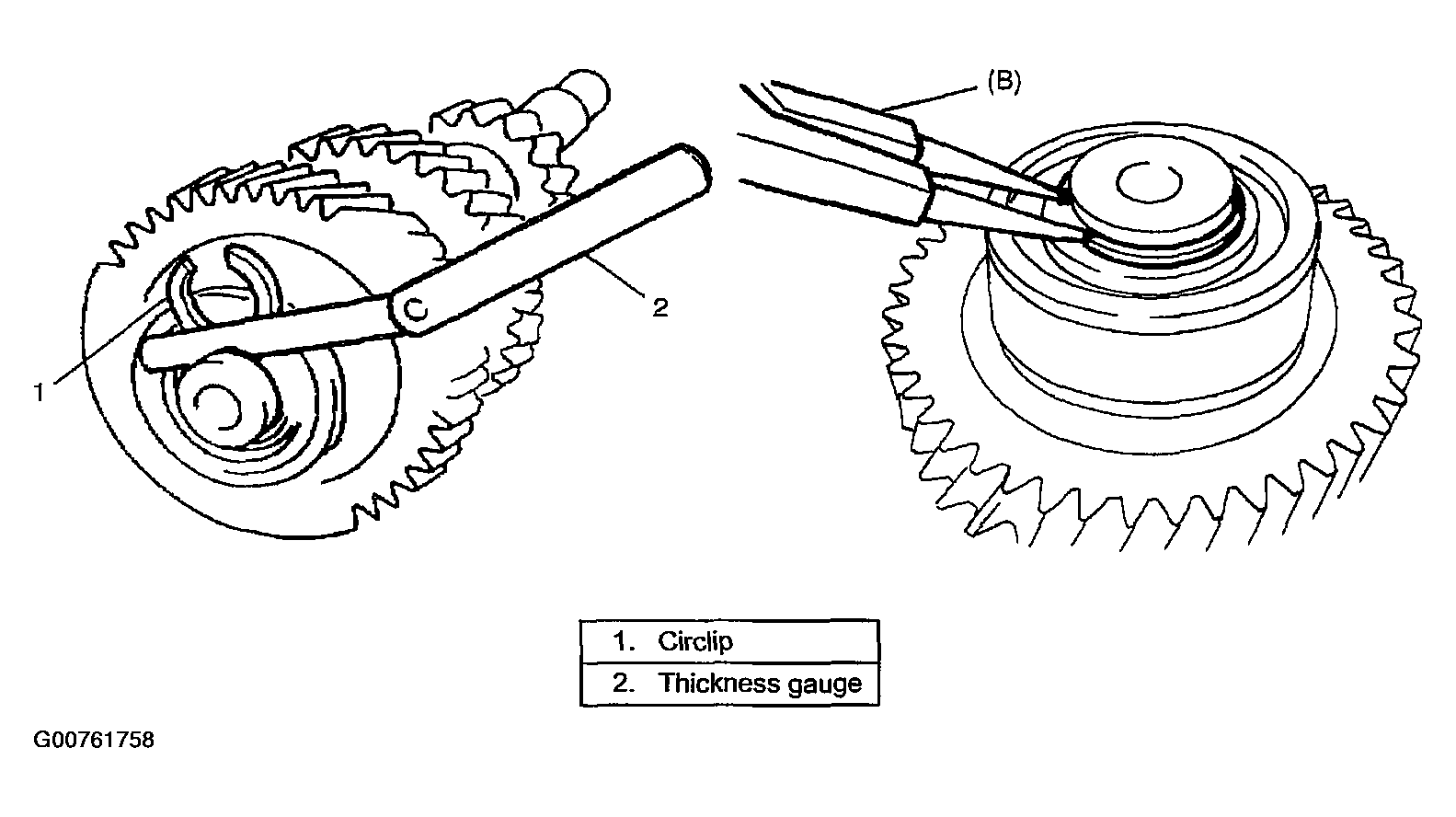

Fig 3: Measuring Thrust Clearance
Courtesy of SUZUKI OF AMERICA CORP.
