Section 96 (Overhaul - M/T)
>>
Diagnostic Information & Procedures
>>
Manual Transmission Symptom Diagnosis
Manual Transmission Symptom Diagnosis
WARNING:
This page is about a different car, the 2004 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

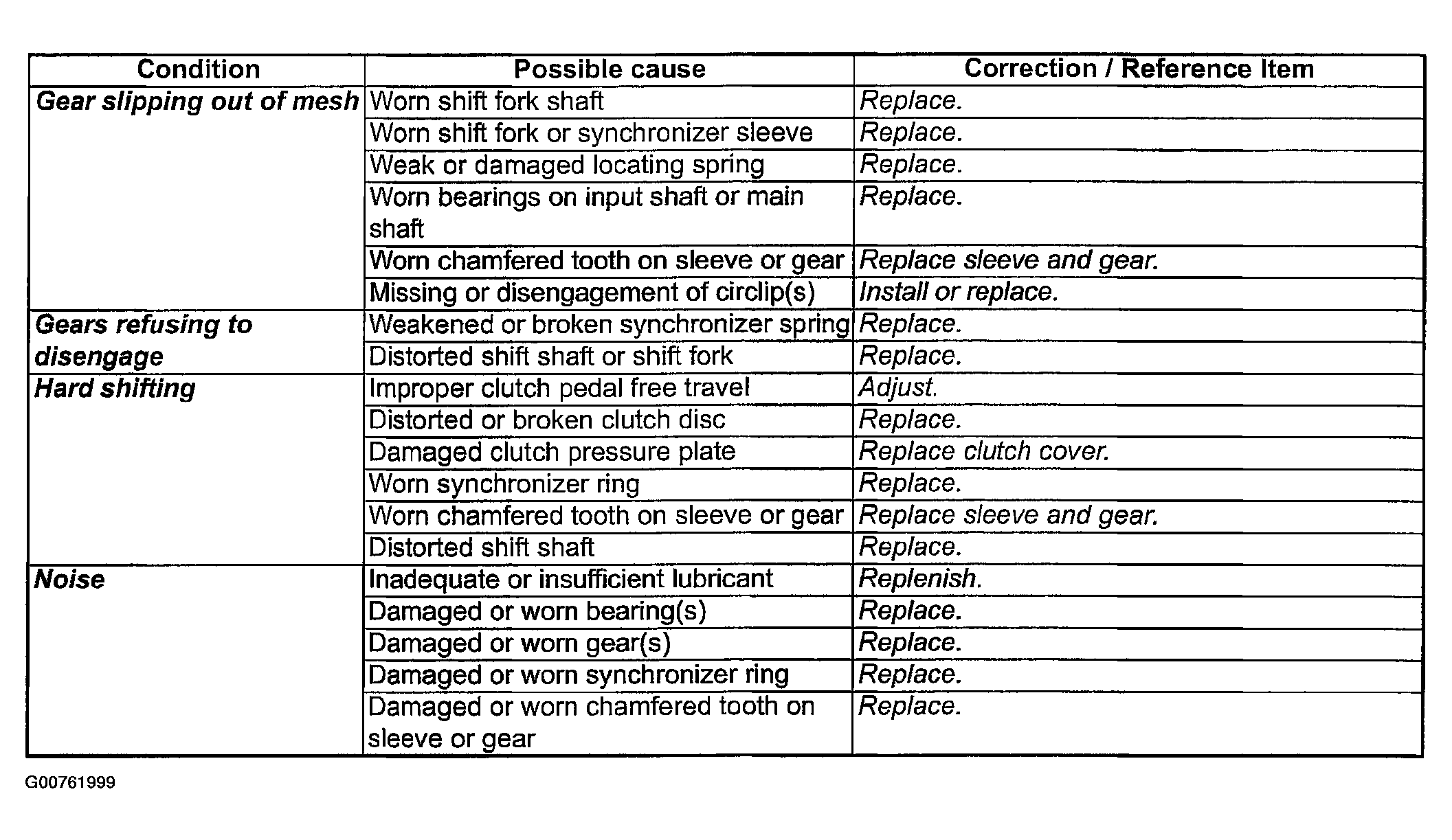

Fig 1: Manual Transmission Symptom Diagnosis Chart
Courtesy of SUZUKI OF AMERICA CORP.
