Gear shift diagram [A] and TCC lock-up diagram [B]

WARNING: This page is about a different car, the 2004 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

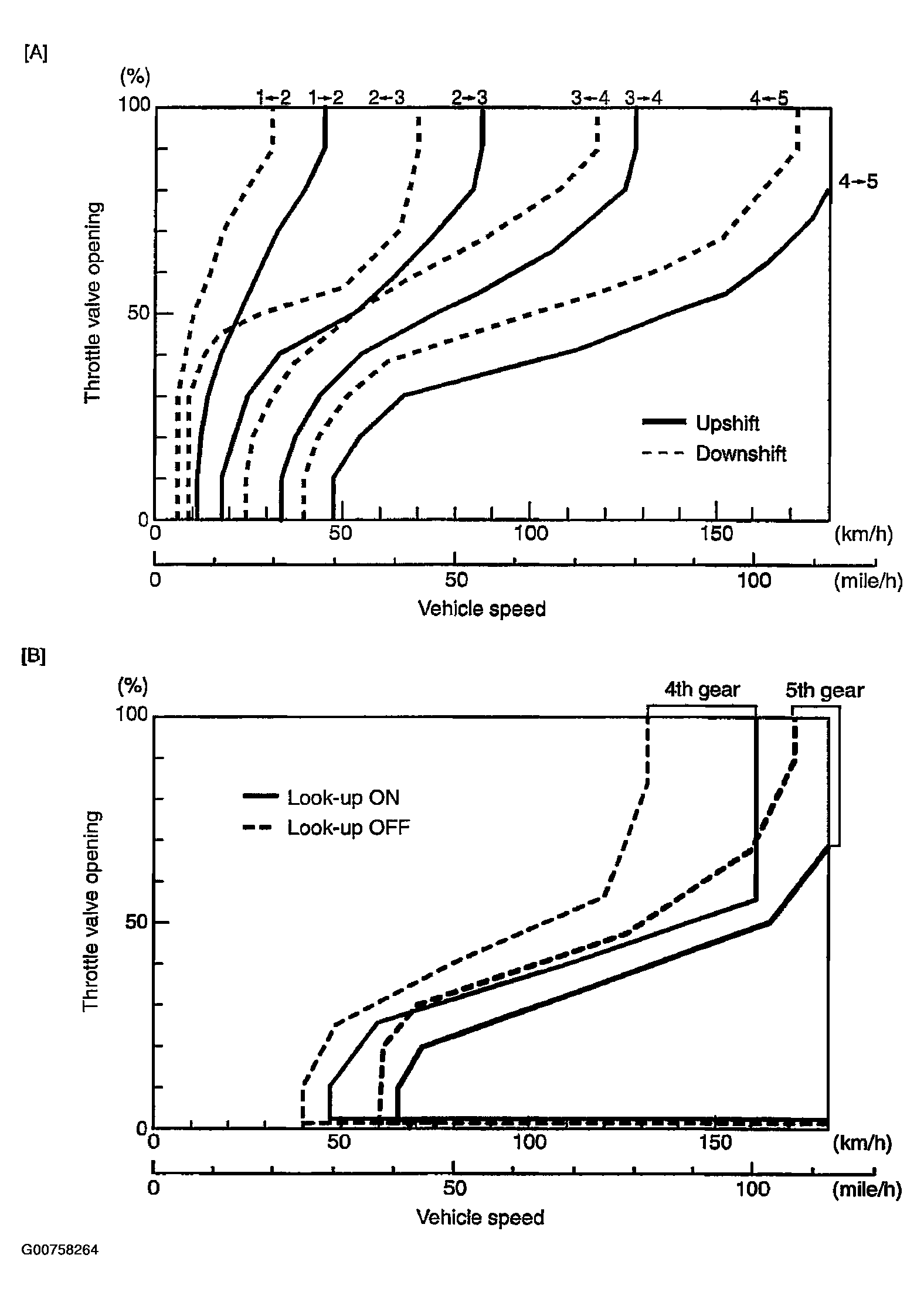

Fig 1: Gear Shift Diagram [A] & TCC Lock-Up Diagram [B] (Normal Mode)

Courtesy of SUZUKI OF AMERICA CORP.

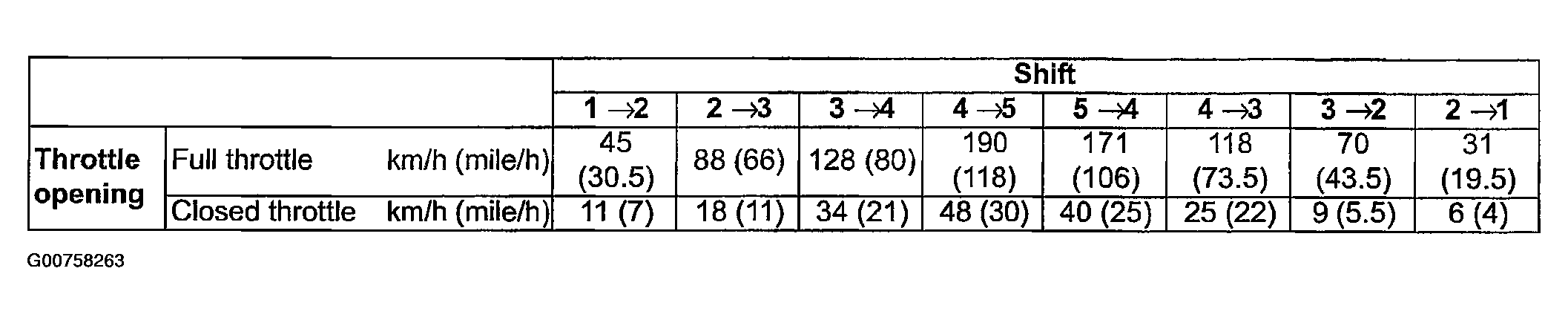

Fig 2: Automatic Shift Schedule (Power Mode)

Courtesy of SUZUKI OF AMERICA CORP.

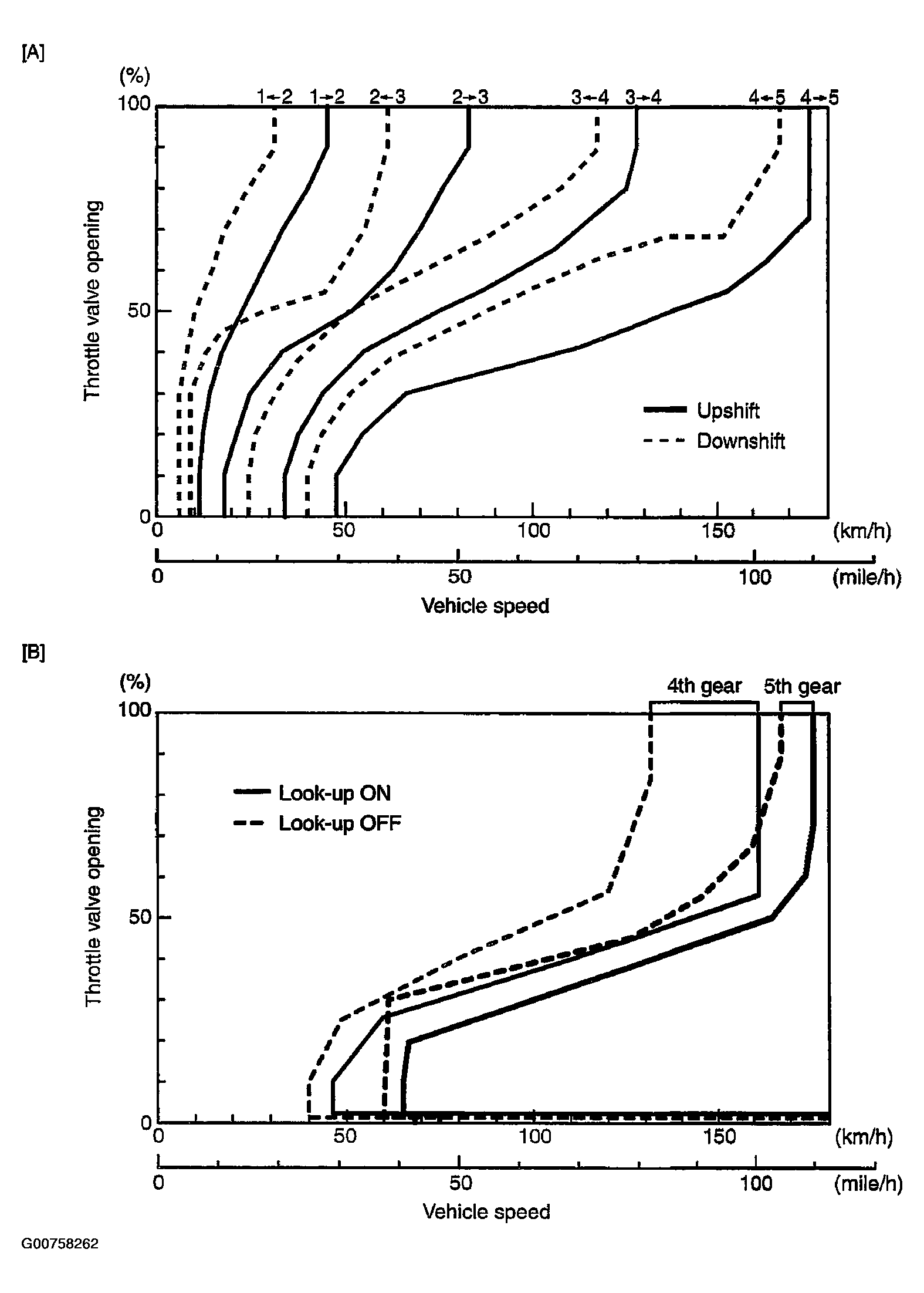

Fig 1: Gear Shift Diagram ]A] & TCC Lock-Up Diagram [B] (Power Mode)

Courtesy of SUZUKI OF AMERICA CORP.
