Bearing and Race Installation Diagram

WARNING: This page is about a different car, the 2004 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

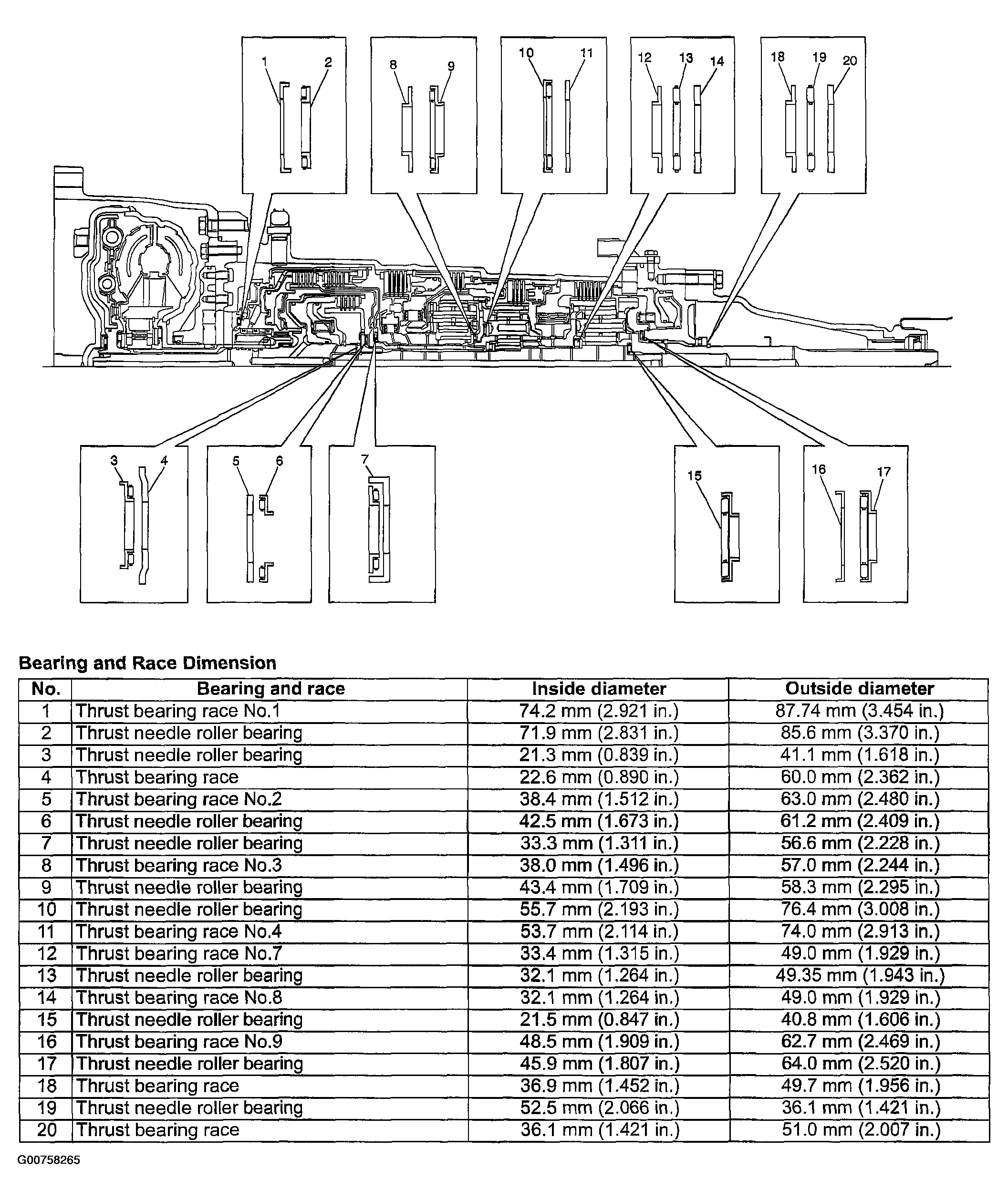

Fig 1: Identifying Bearing & Racing Installation Diagram
G00758265Courtesy of SUZUKI OF AMERICA CORP.
