Operation of Shift Solenoids and TCC Solenoid

WARNING: This page is about a different car, the 2004 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

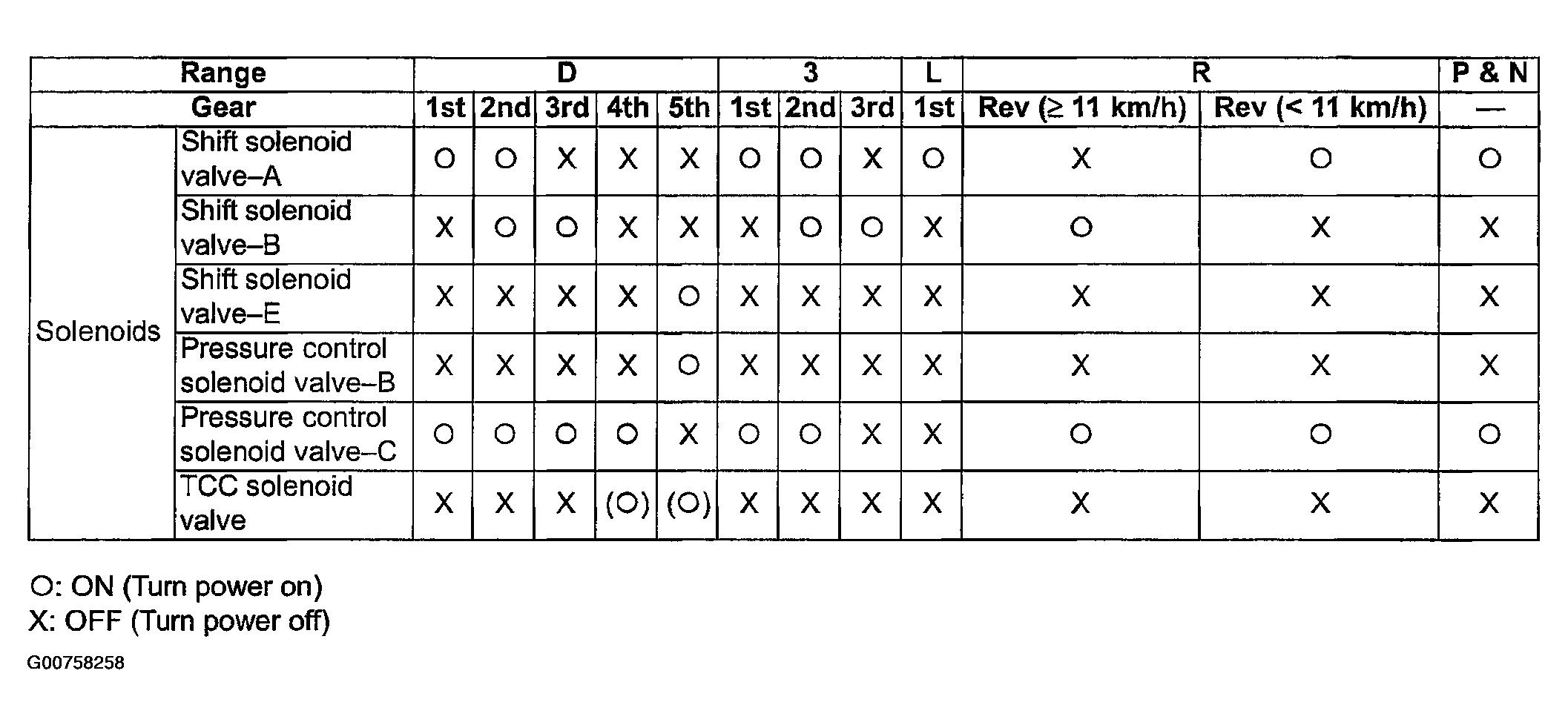

Fig 1: Identifying Operation Of Shift Solenoids & TCC Solenoid Chart
G00758258Courtesy of SUZUKI OF AMERICA CORP.
