No Lock-up Occurs: Troubleshooting

WARNING: This page is about a different car, the 2004 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • When performing a road test, select a place where there is no traffic or possibility of a traffic accident and be very careful during testing to avoid occurrence of an accident.
  • Road test should be carried out with 2 persons, a driver and tester, on a level road.

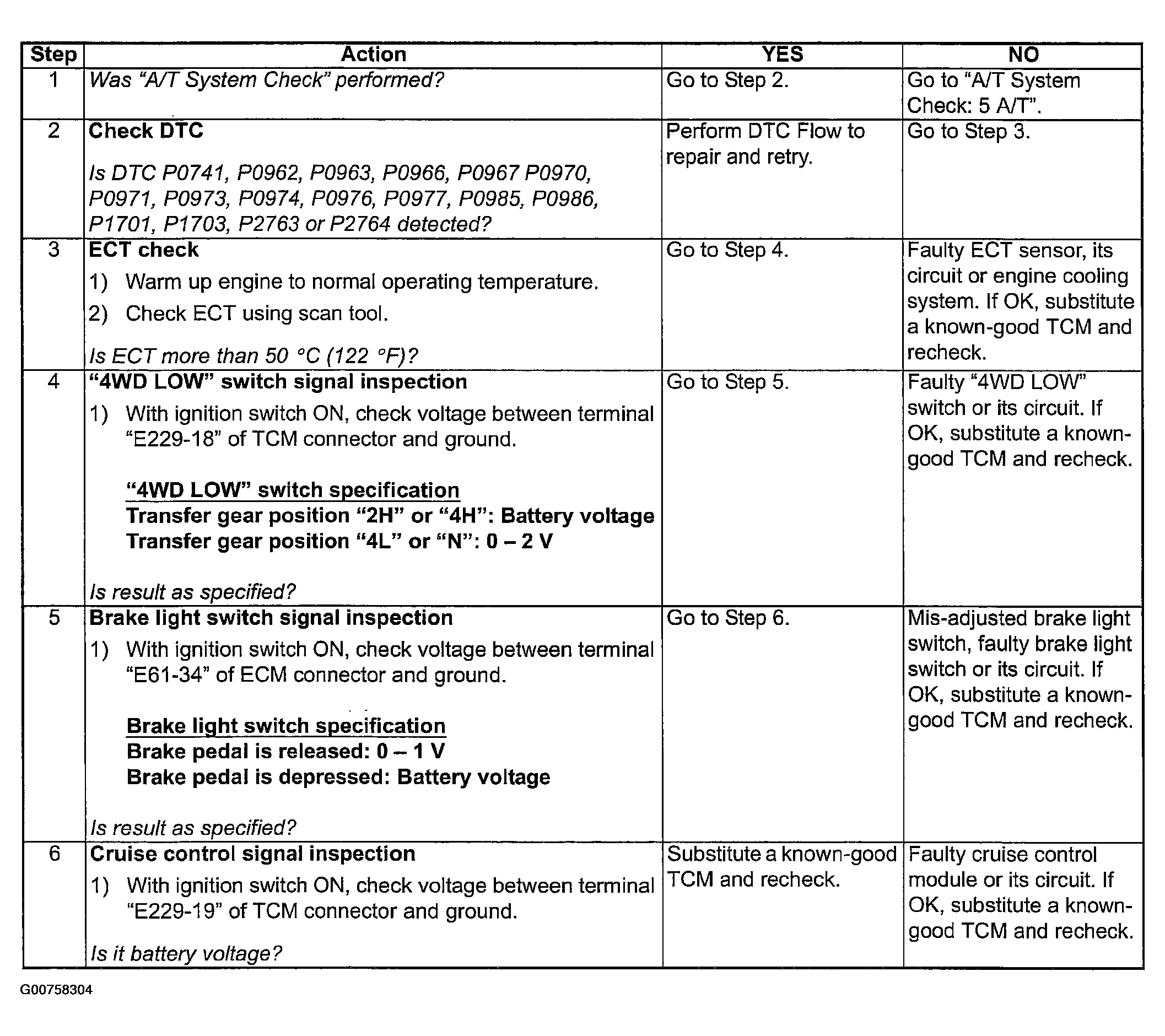

Fig 1: No Lock-Up Occurs - Troubleshooting Chart
G00758304Courtesy of SUZUKI OF AMERICA CORP.
