No Gear Shift to O/D: Troubleshooting

WARNING: This page is about a different car, the 2004 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • When performing a road test, select a place where there is no traffic or possibility of a traffic accident and be very careful during testing to avoid occurrence of an accident.
  • Road test should be carried out with 2 persons, a driver and tester, on a level road.

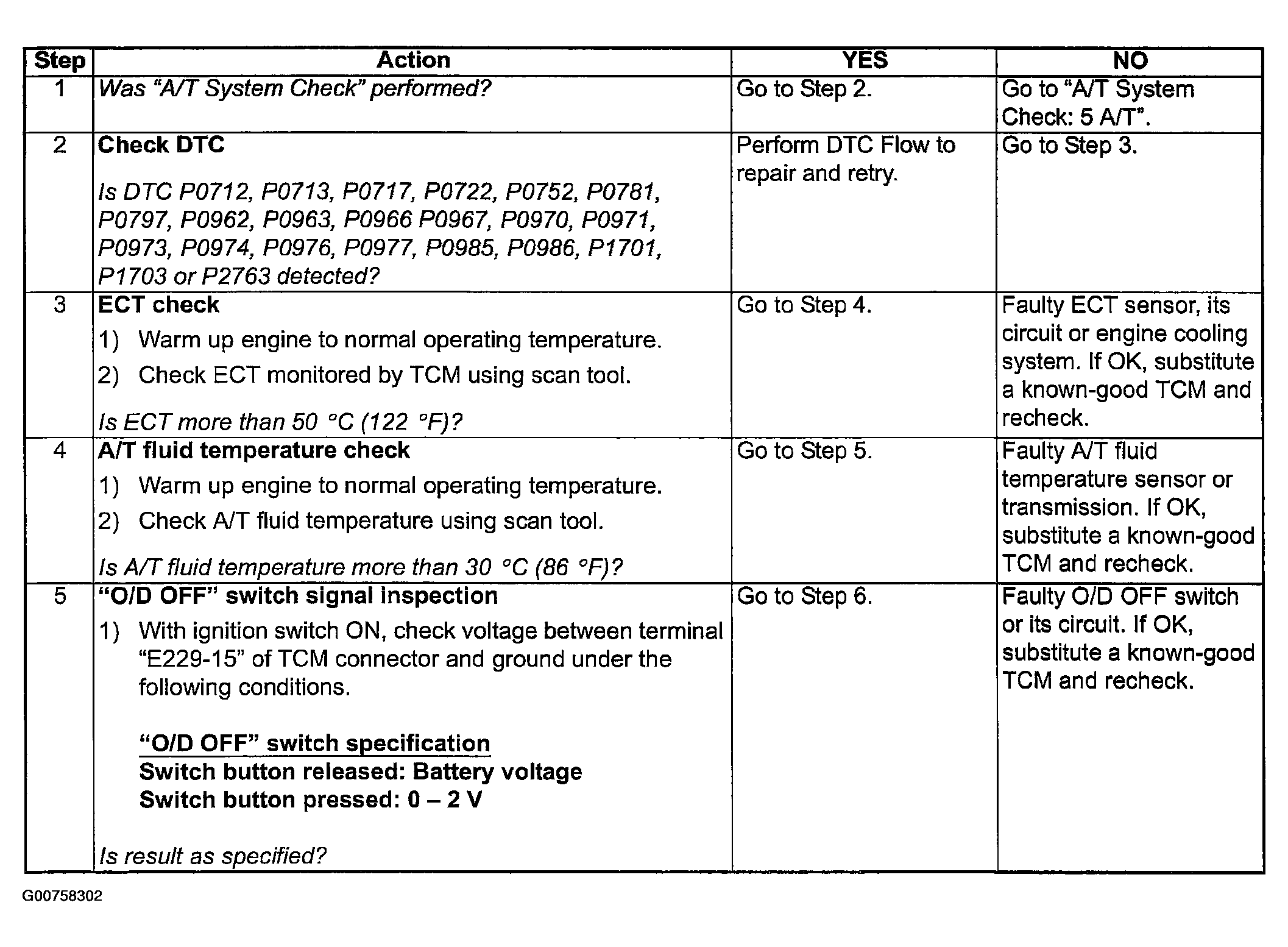

Fig 1: No Gear Shift To O/D - Troubleshooting Chart (1 Of 2)
G00758302Courtesy of SUZUKI OF AMERICA CORP.

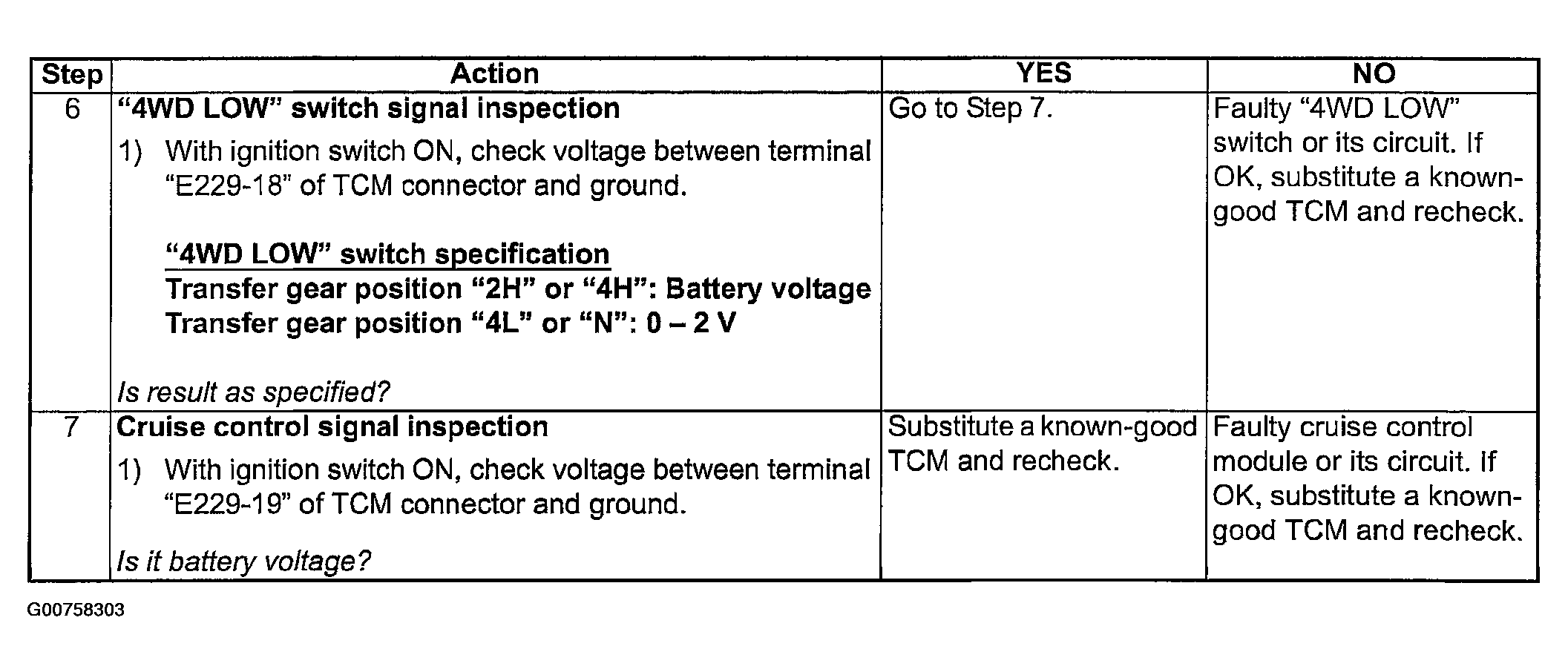

Fig 2: No Gear Shift To O/D - Troubleshooting Chart (2 Of 2)
G00758303Courtesy of SUZUKI OF AMERICA CORP.
