DTC P2743 (No. 58): Transmission Fluid Temperature Sensor "B" Circuit High: Wiring Diagram

WARNING: This page is about a different car, the 2004 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

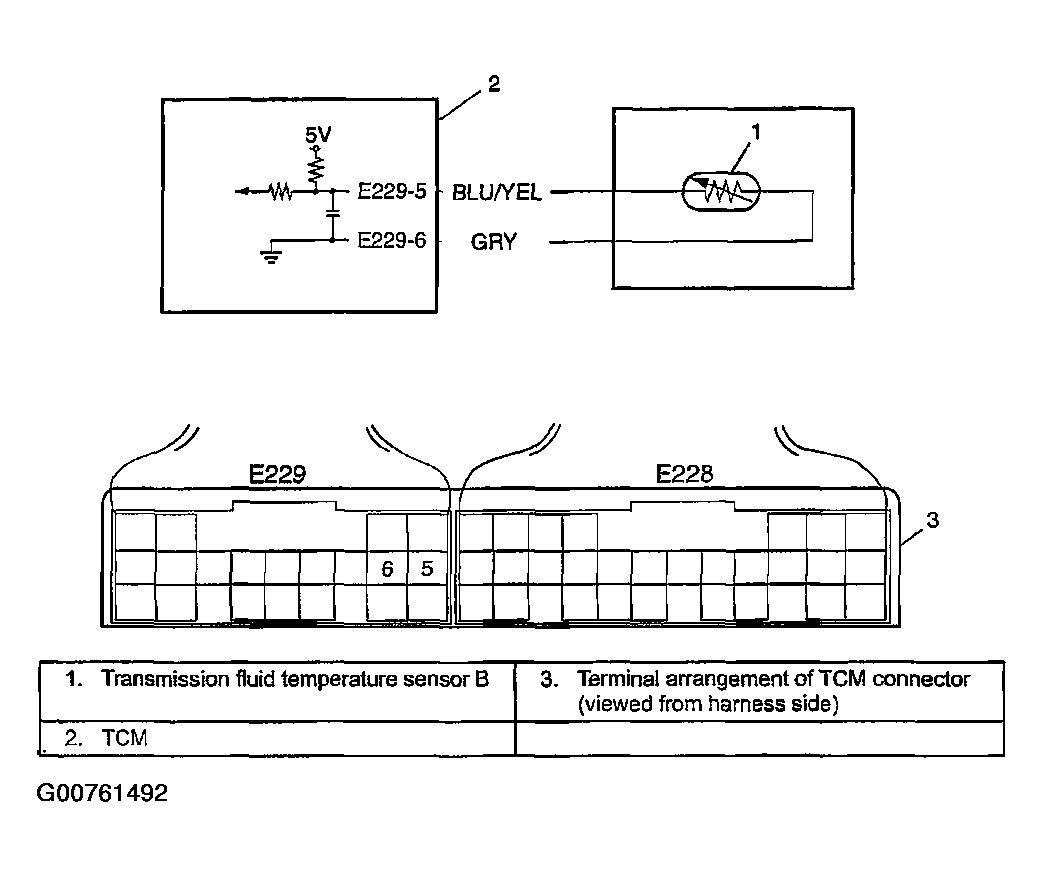

Fig 1: DTC P2743 (No. 58) Transmission Fluid Temperature Sensor "B" Circuit High - Wiring Diagram
G00761492Courtesy of SUZUKI OF AMERICA CORP.
