DTC P1875 (No. 15): 4WD Low Switch Circuit Malfunction (Open): Wiring Diagram

WARNING: This page is about a different car, the 2004 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

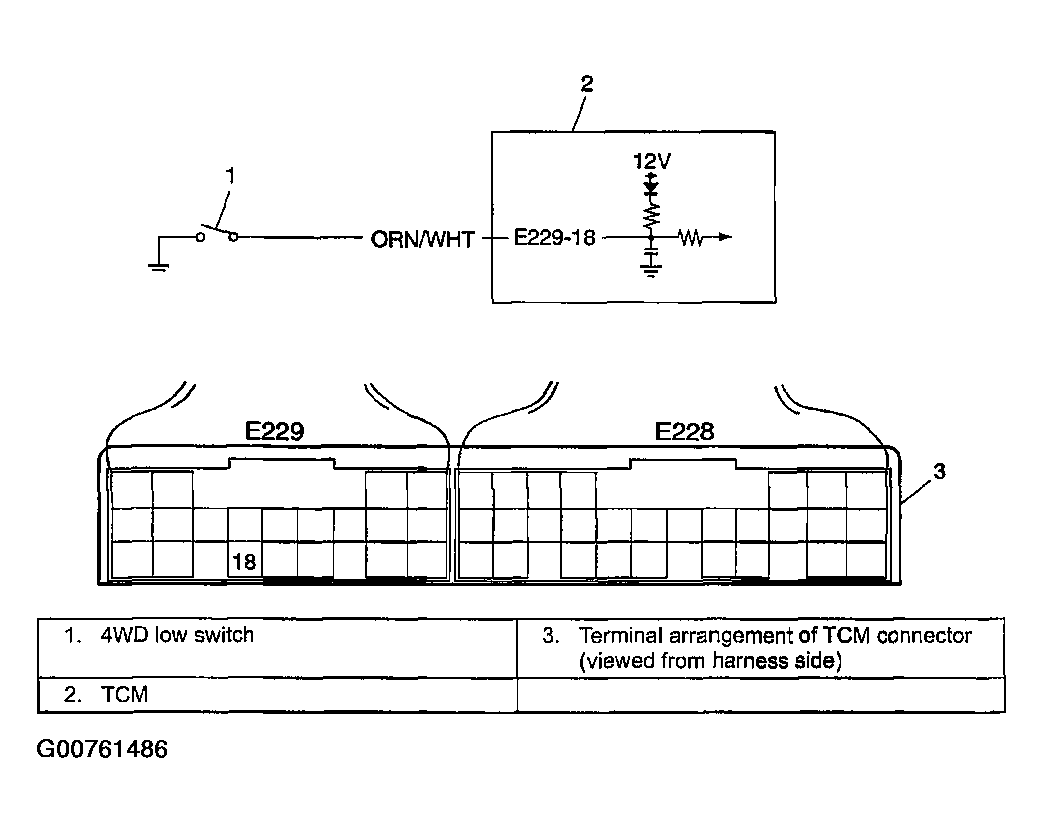

Fig 1: DTC P1875 (No. 15) 4WD Low Switch Circuit Malfunction (Open) - Wiring Diagram
G00761486Courtesy of SUZUKI OF AMERICA CORP.
