DTC P1701 (No. 76): CAN Communication Problem - TCM: Wiring Diagram

WARNING: This page is about a different car, the 2004 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

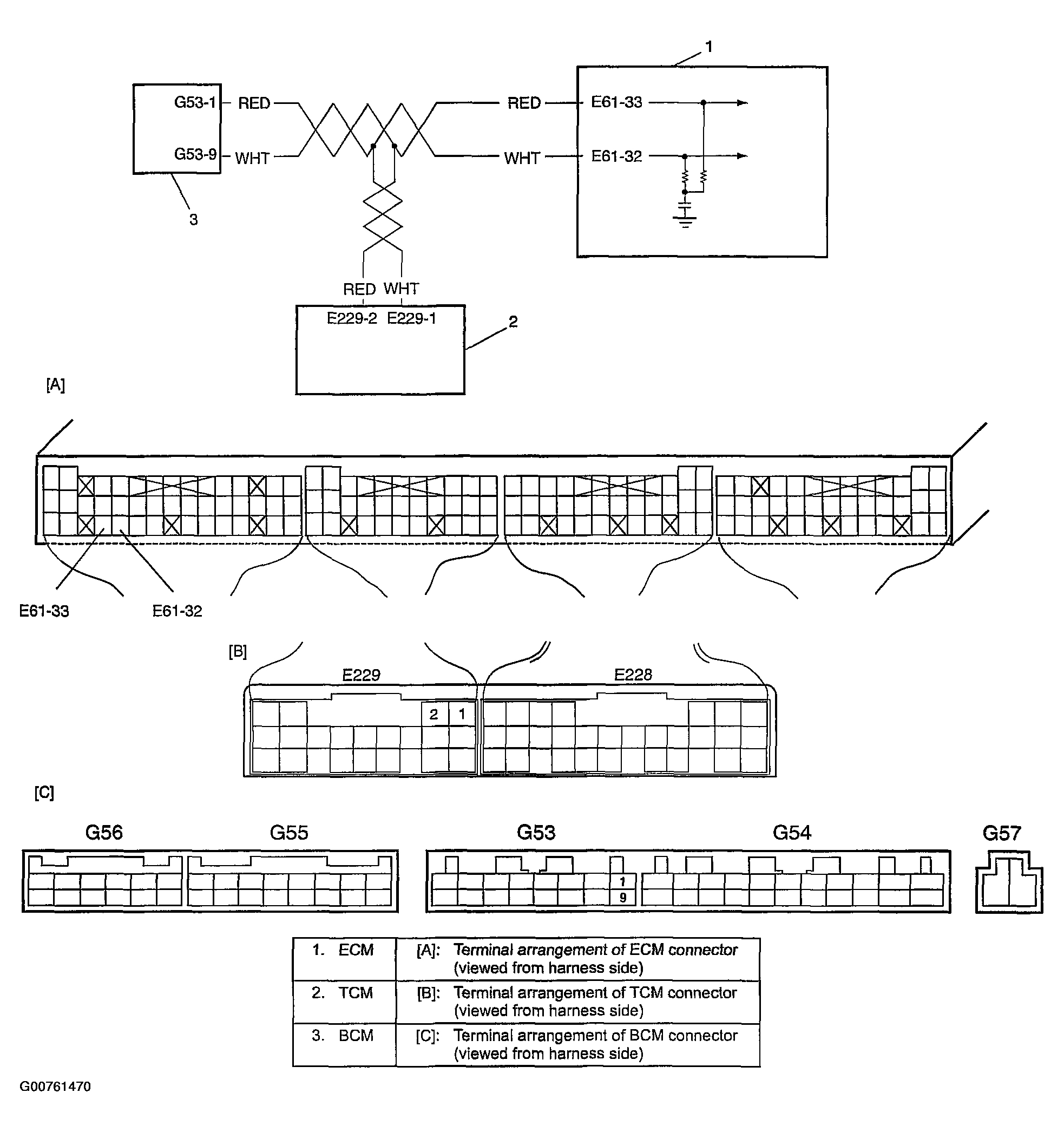

Fig 1: DTC P1701 (No. 76) CAN Communication Problem - TCM - Wiring Diagram
G00761470Courtesy of SUZUKI OF AMERICA CORP.
