DTC P0974, P0977, P0986 (No. 21/23/48): Shift Solenoid "A, B & E" Control Circuit High: Wiring Diagram

WARNING: This page is about a different car, the 2004 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

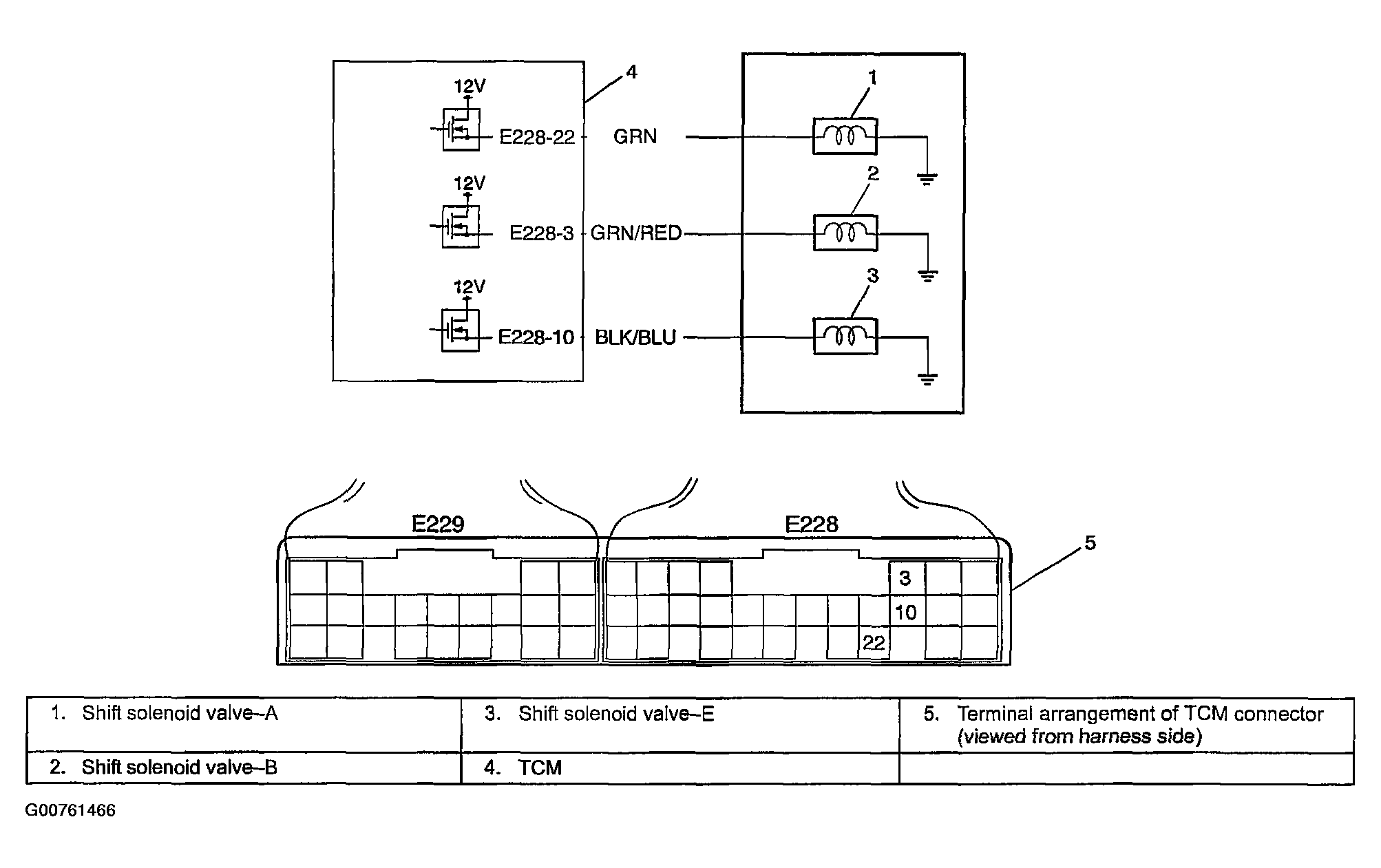

Fig 1: DTC P0974/P0977/P0986 (No. 21/No. 23/No. 48) Shift Solenoid "A" Control Circuit High/Shift Solenoid "B" Control Circuit High/Shift Solenoid "E" Control Circuit High - Wiring Diagram
G00761466Courtesy of SUZUKI OF AMERICA CORP.
