DTC P0973, P0976, P0985 (No. 22/24/49): Shift Solenoid "A, B & E" Control Circuit Low: Wiring Diagram

WARNING: This page is about a different car, the 2004 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

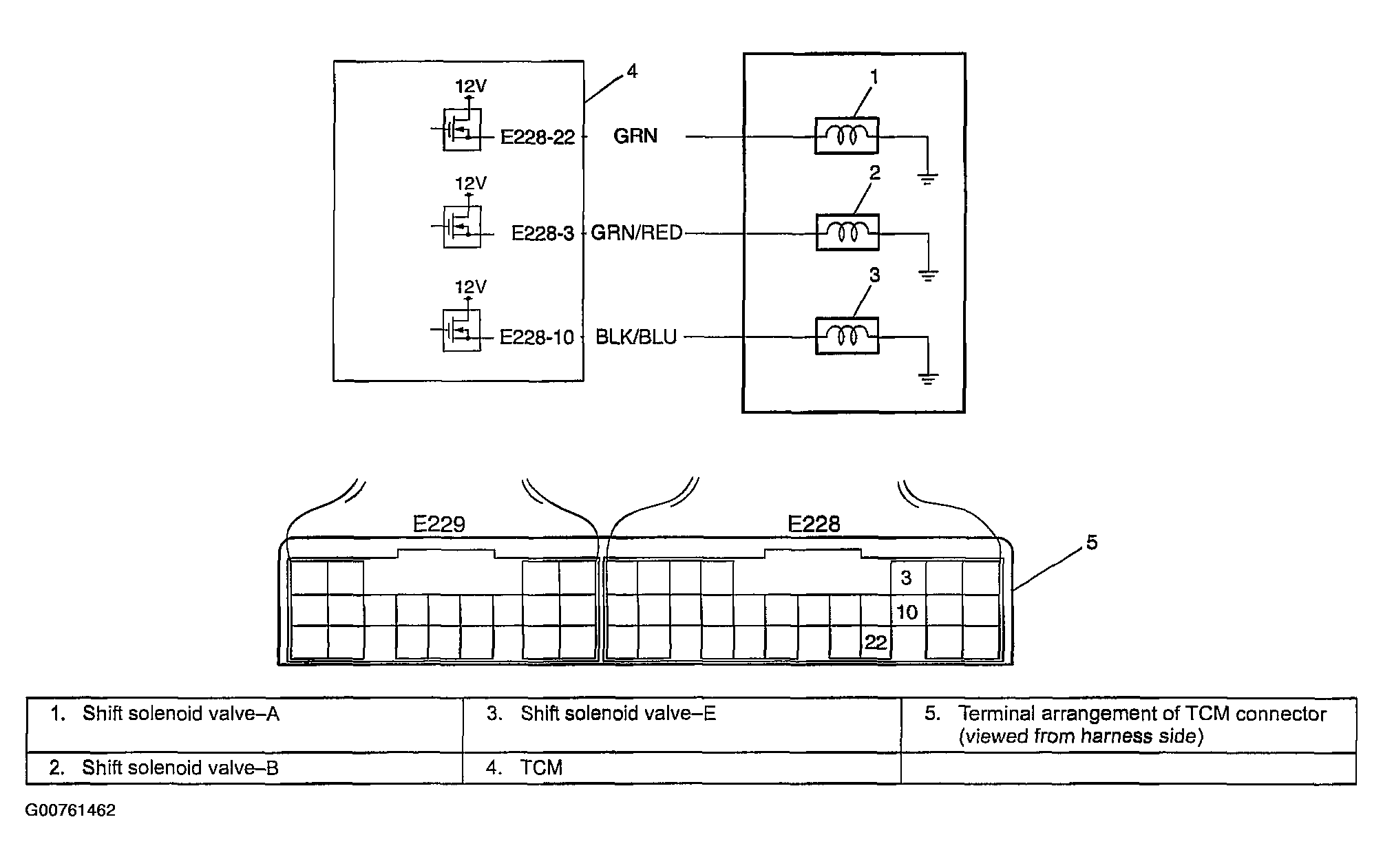

Fig 1: DTC P0973/P0976/P0985 (No. 22/No. 24/ No. 49) Shift Solenoid "A" Control Circuit Low/Shift Solenoid "B" Control Circuit Low/Shift Solenoid/Shift Solenoid "E" Control Circuit Low - Wiring Diagram
G00761462Courtesy of SUZUKI OF AMERICA CORP.
