DTC P0963, P0967, P0971 (No. 42/44/46): Control Circuit High/Pressure Control Solenoid "A-C": Wiring Diagram

WARNING: This page is about a different car, the 2004 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

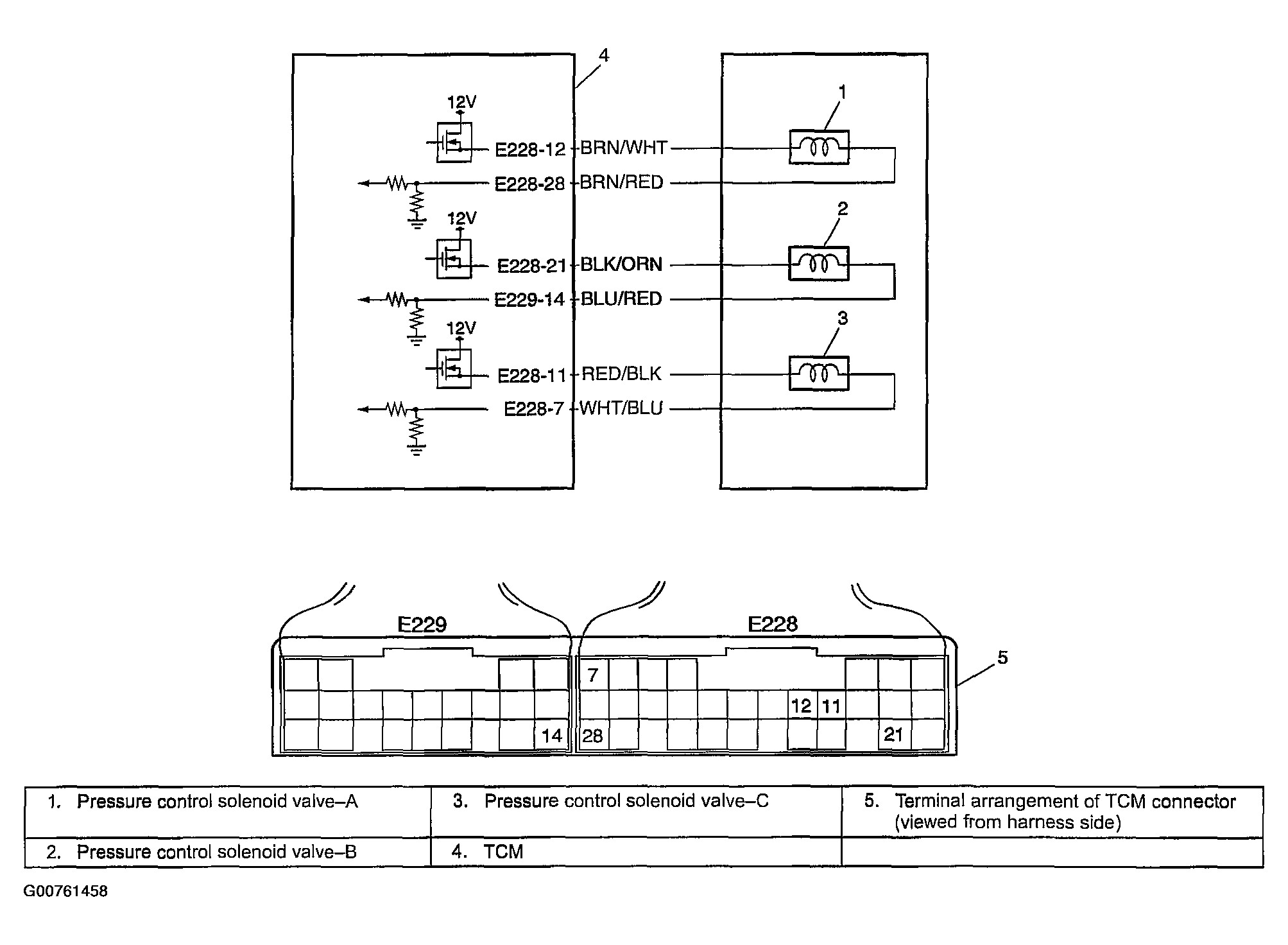

Fig 1: DTC P0963/P0967/P0971 (No. 42/No. 44/No. 46) Pressure Control Solenoid "A" Control Circuit High/Pressure Control Solenoid "B" Control Circuit High/Pressure Control Solenoid "C" Control Circuit High - Wiring Diagram

Courtesy of SUZUKI OF AMERICA CORP.
