Diagnostic Trouble Codes Troubleshooting

WARNING: This page is about a different car, the 2004 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: DTC Troubleshooting Chart (1 Of 2)
G00761460Courtesy of SUZUKI OF AMERICA CORP.

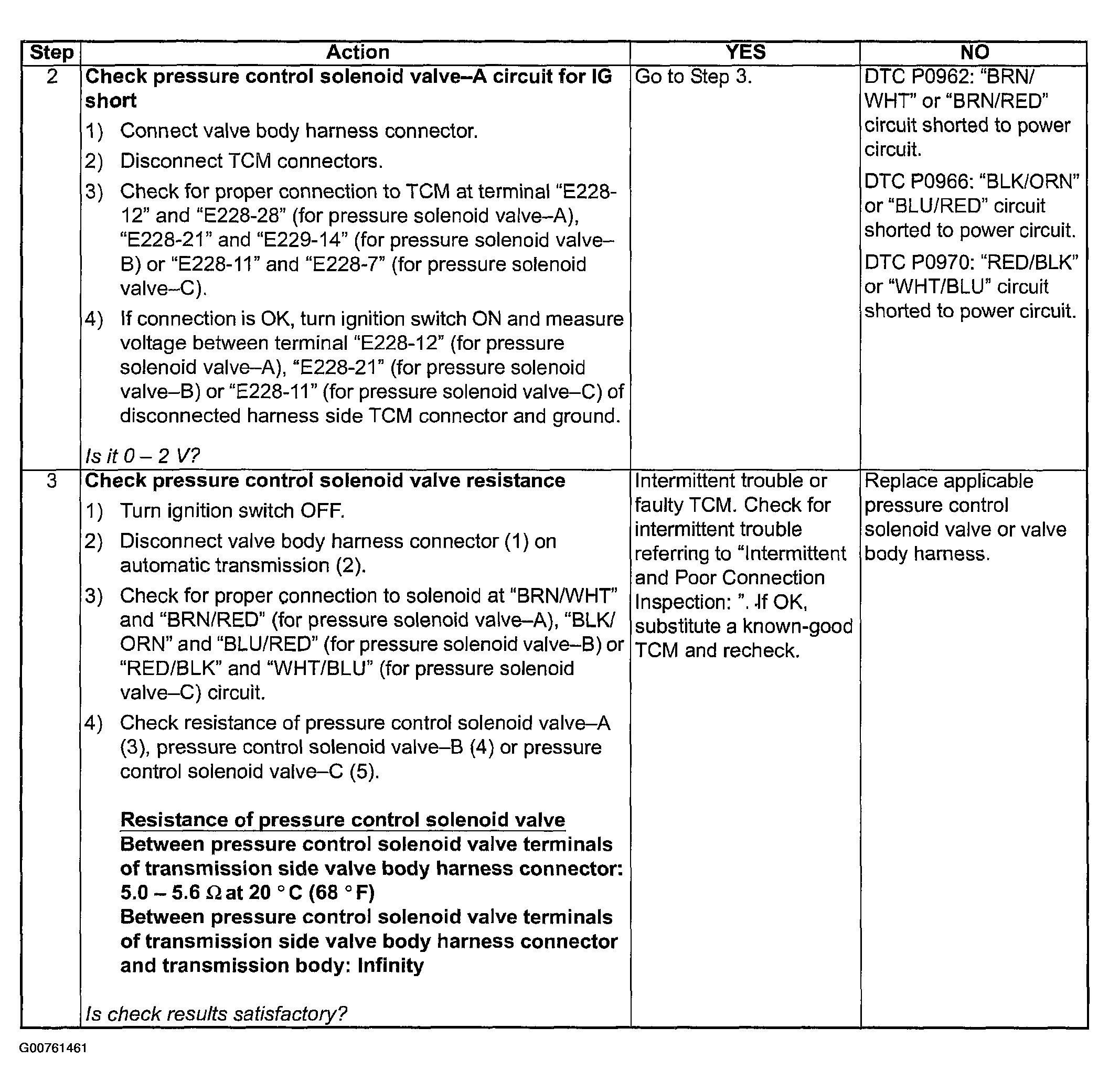

Fig 2: DTC Troubleshooting Chart (2 Of 2)
G00761461Courtesy of SUZUKI OF AMERICA CORP.
