DTC P0962, P0966, P0970 (No. 41/43/45): Control Circuit Low/Pressure Control Solenoid "A-C": Wiring Diagram

WARNING: This page is about a different car, the 2004 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

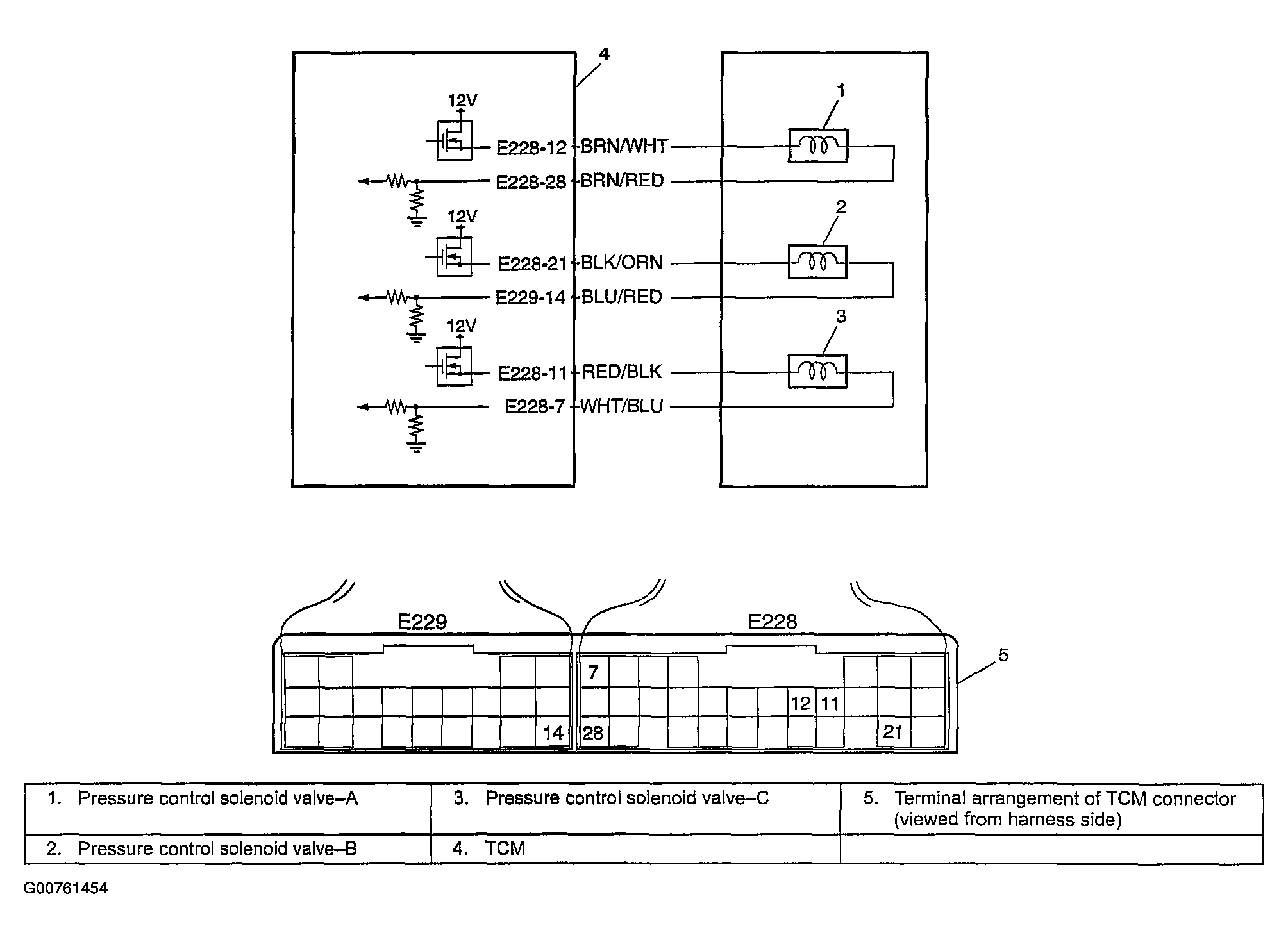

Fig 1: DTC P0962/P0966/P0970 (No. 41/No. 43/ No. 45) Pressure Control Solenoid "A" Control Circuit Low/Pressure Control Solenoid "B" Control Circuit/Pressure Control Solenoid "C" Control Circuit Low - Wiring Diagram

Courtesy of SUZUKI OF AMERICA CORP.
