Table For Detecting Condition

WARNING: This page is about a different car, the 2004 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

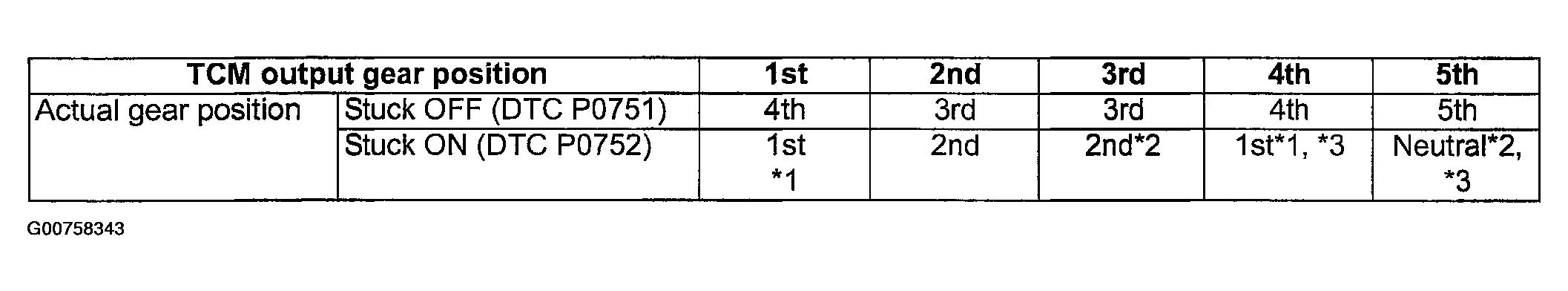

Fig 1: Detecting Condition Table
G00758343Courtesy of SUZUKI OF AMERICA CORP.
