DTC P0717 (No. 14): Input/Turbine Speed Sensor Circuit No Signal: Wiring Diagram

WARNING: This page is about a different car, the 2004 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

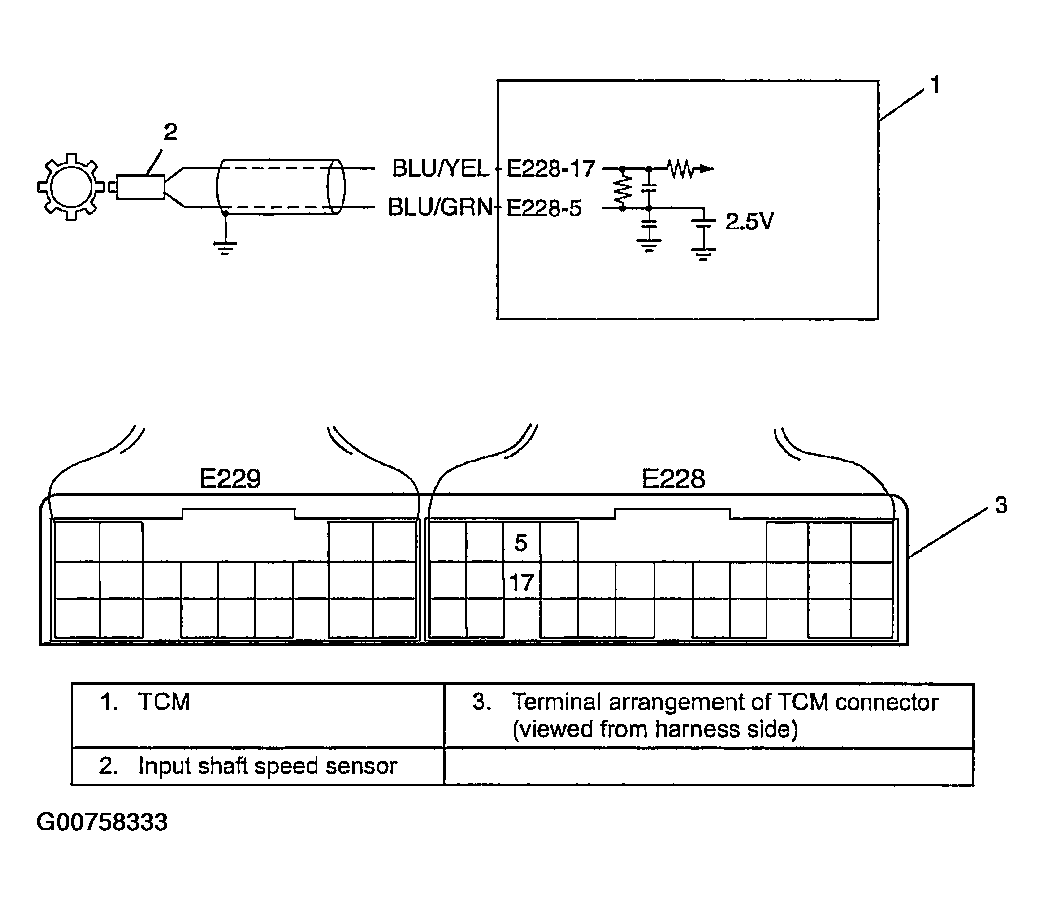

Fig 1: DTC P0717 (No. 14) Input/Turbine Speed Sensor Circuit No Signal - Wiring Diagram
G00758333Courtesy of SUZUKI OF AMERICA CORP.
