Diagnostic Trouble Codes Troubleshooting

WARNING: This page is about a different car, the 2004 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

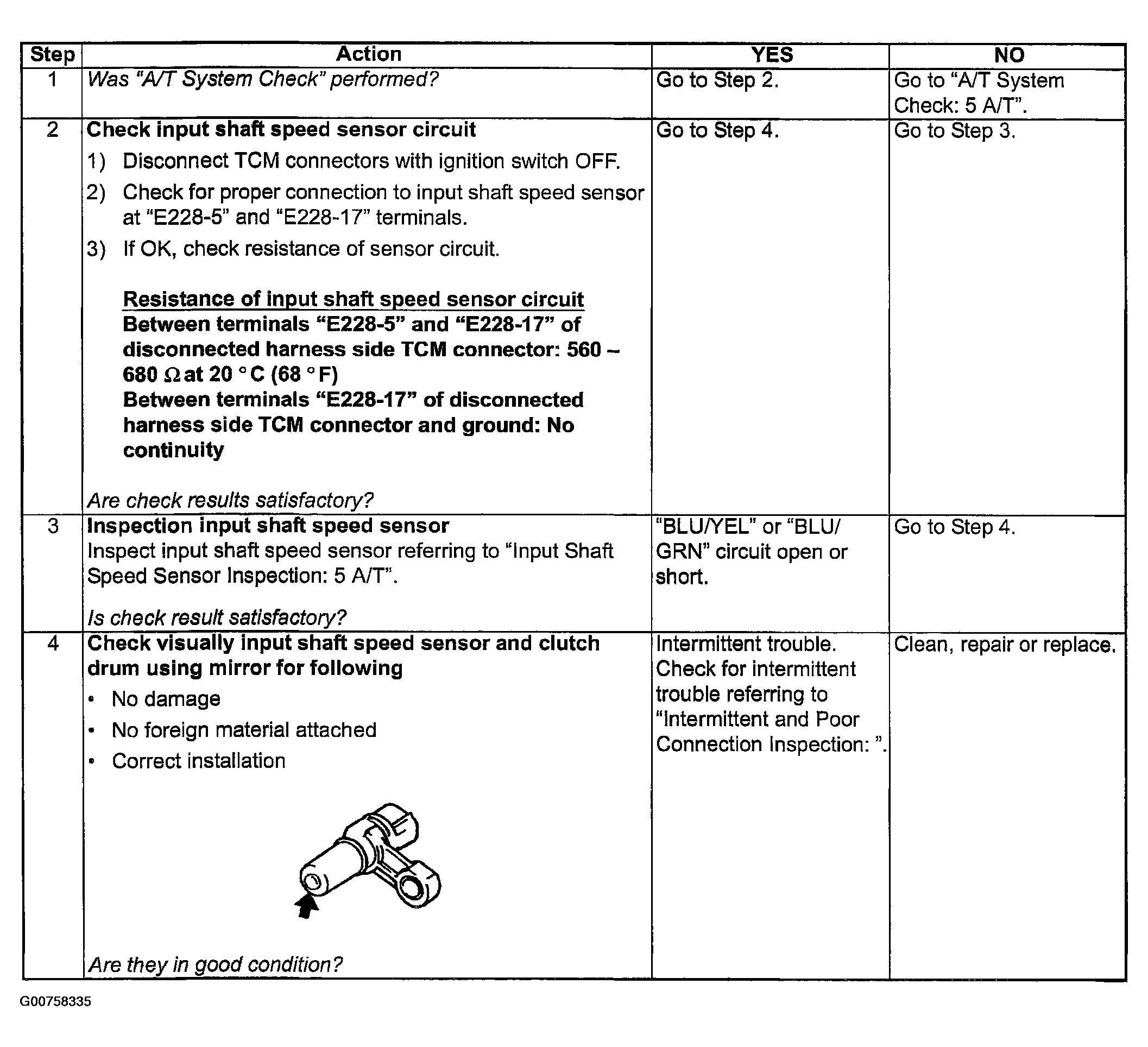

Fig 1: DTC Troubleshooting Chart
G00758335Courtesy of SUZUKI OF AMERICA CORP.
