DTC P0713 (No. 36): Transmission Fluid Temperature Sensor "A" Circuit High: Wiring Diagram

WARNING: This page is about a different car, the 2004 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

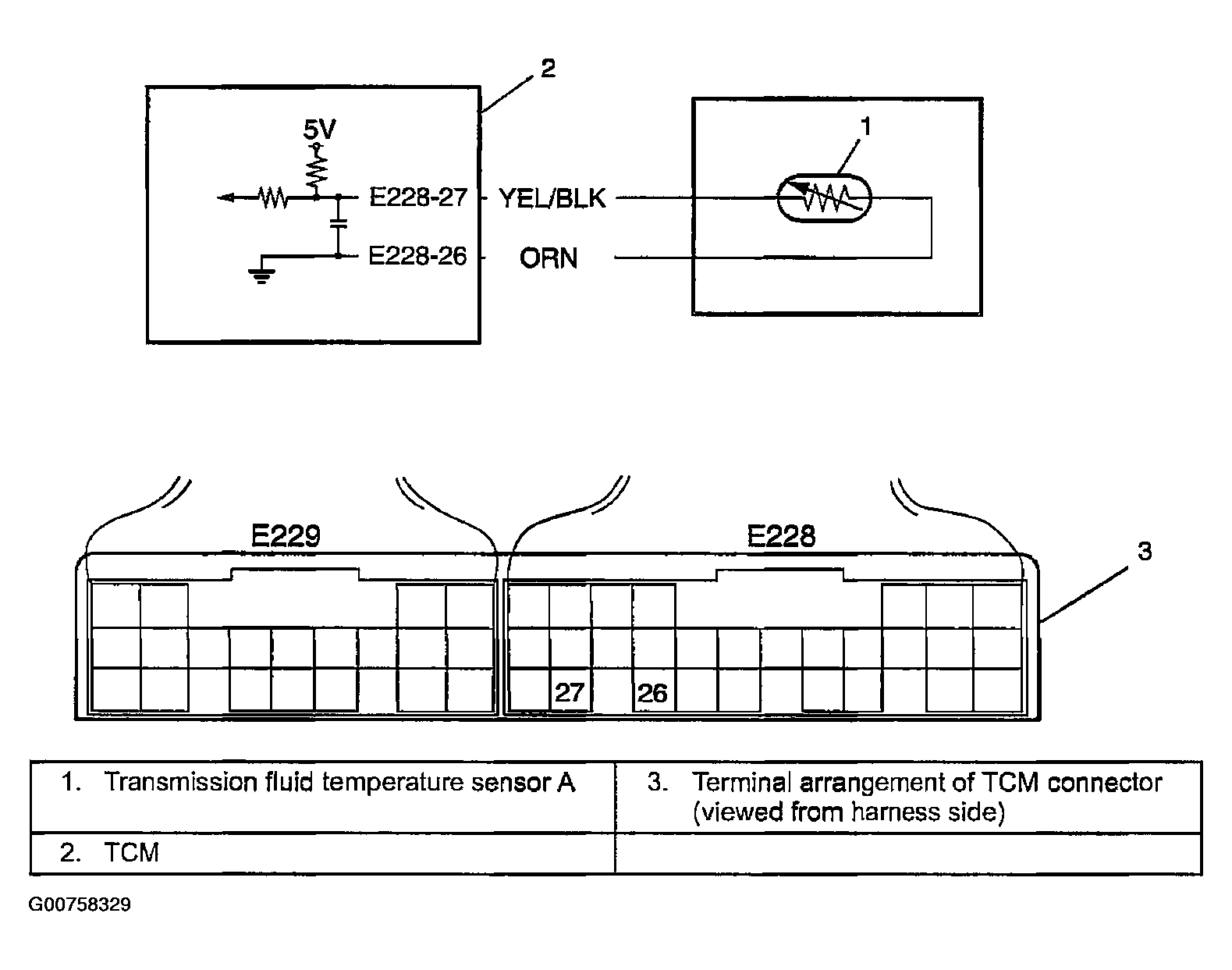

Fig 1: DTC P0713 (No. 36) Transmission Fluid Temperature Sensor "A" Circuit High - Wiring Diagram
G00758329Courtesy of SUZUKI OF AMERICA CORP.
