DTC P0712 (No. 38): Transmission Fluid Temperature Sensor "A" Circuit Low: Wiring Diagram

WARNING: This page is about a different car, the 2004 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

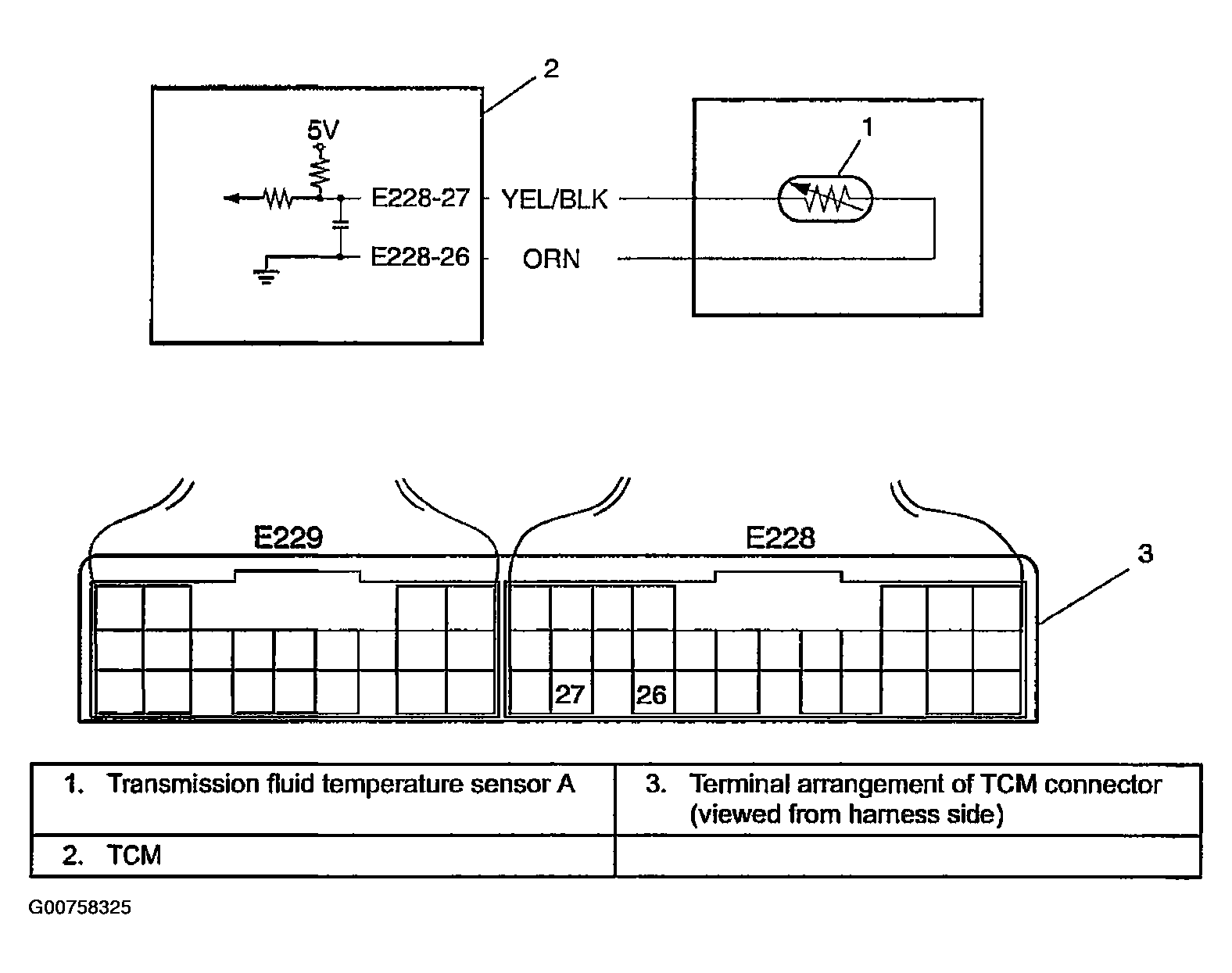

Fig 1: DTC P0712 (No. 38) Transmission Fluid Temperature Sensor "A" Circuit Low
G00758325Courtesy of SUZUKI OF AMERICA CORP.
