DTC P0711 (No. 81): Transmission Fluid Temperature Sensor Range/ Performance: Wiring Diagram

WARNING: This page is about a different car, the 2004 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

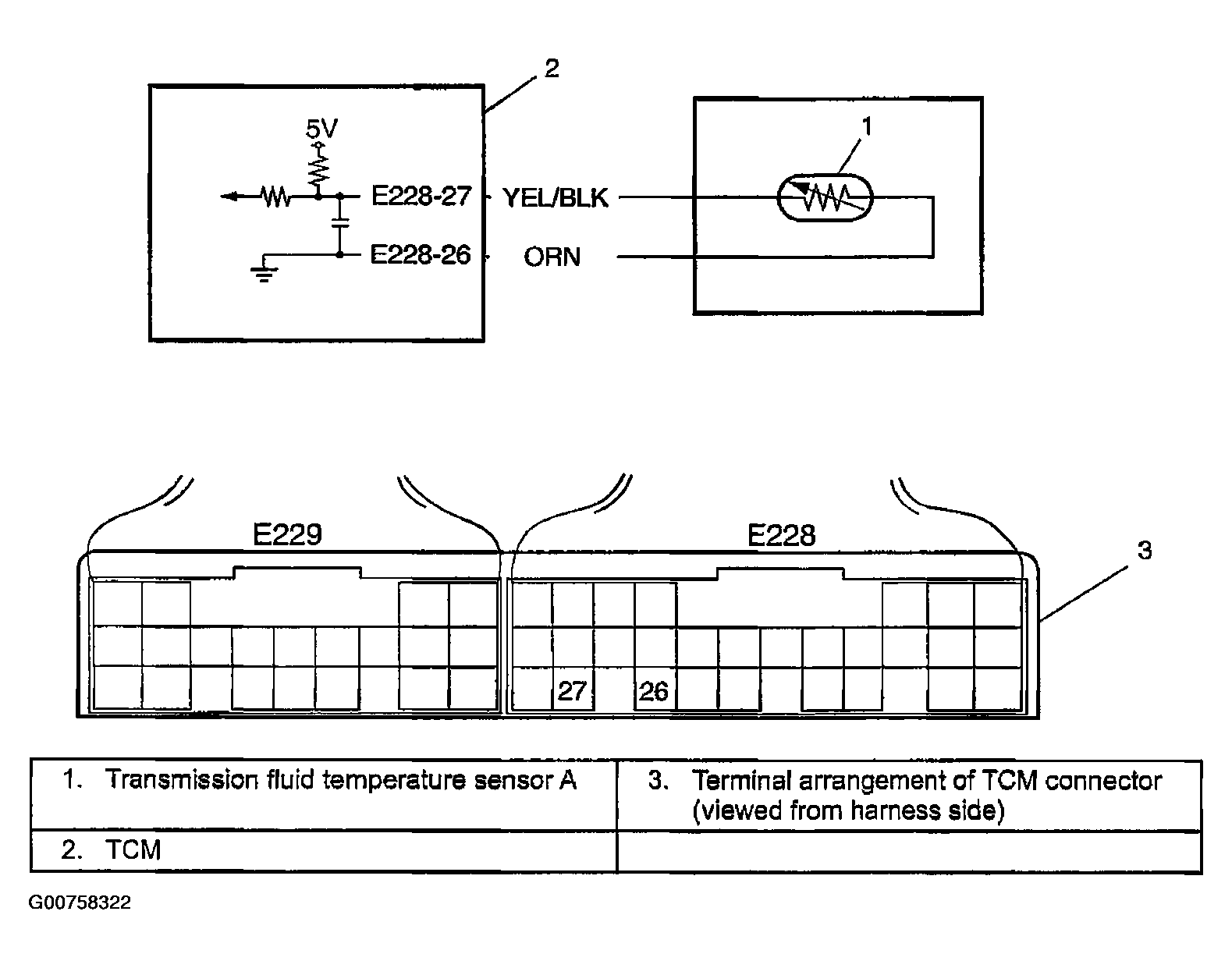

Fig 1: DTC P0711 (No. 81) Transmission Fluid Temperature Sensor Range/Performace - Wiring Diagram
G00758322Courtesy of SUZUKI OF AMERICA CORP.
