DTC P0707 (No. 34): Transmission Range Sensor Circuit Low: Wiring Diagram

WARNING: This page is about a different car, the 2004 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

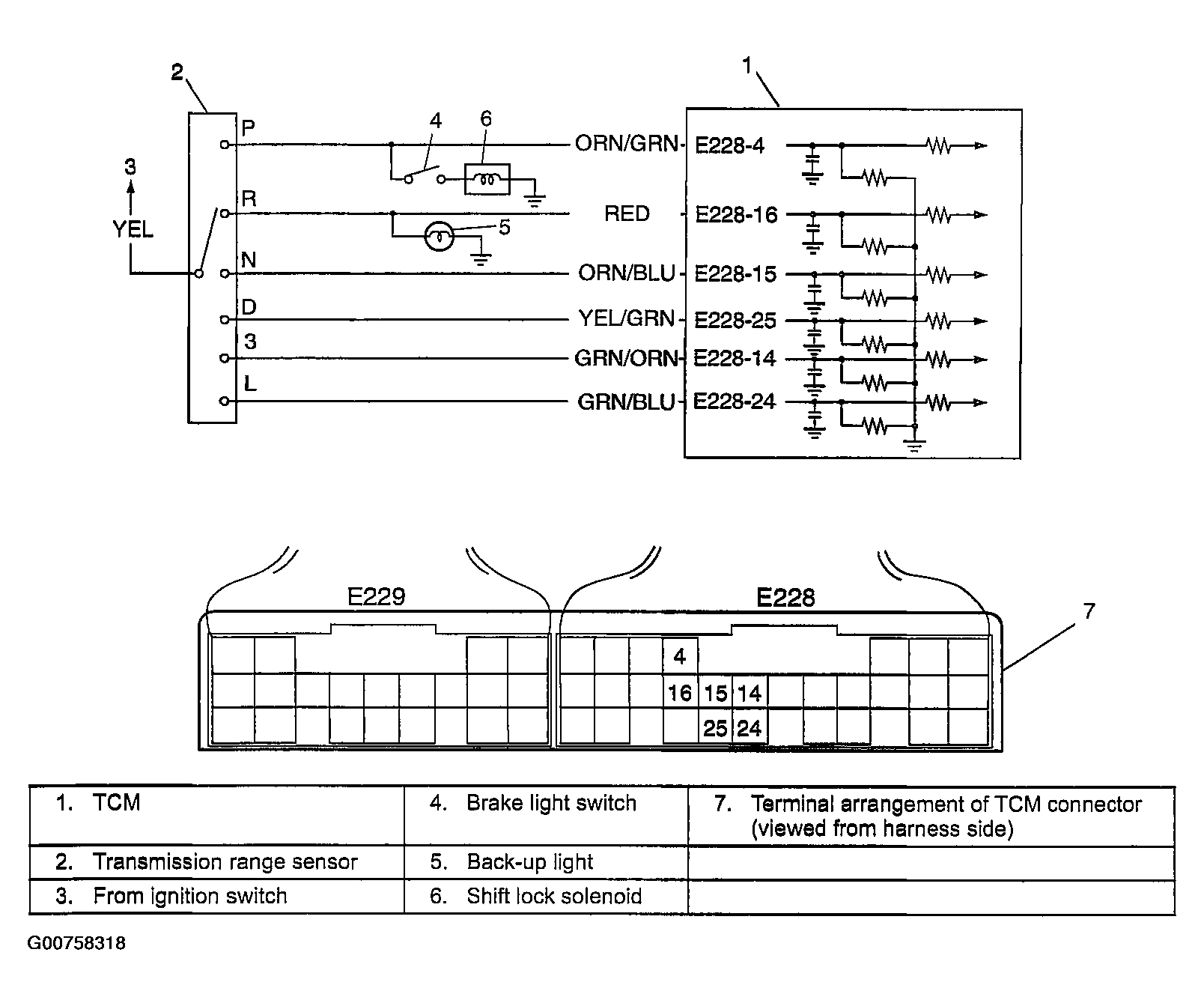

Fig 1: DTC P0707 (No. 34) Transmission Range Sensor Circuit Low - Wiring Diagram
G00758318Courtesy of SUZUKI OF AMERICA CORP.
