Trouble Diagnosis 1

WARNING: This page is about a different car, the 2004 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

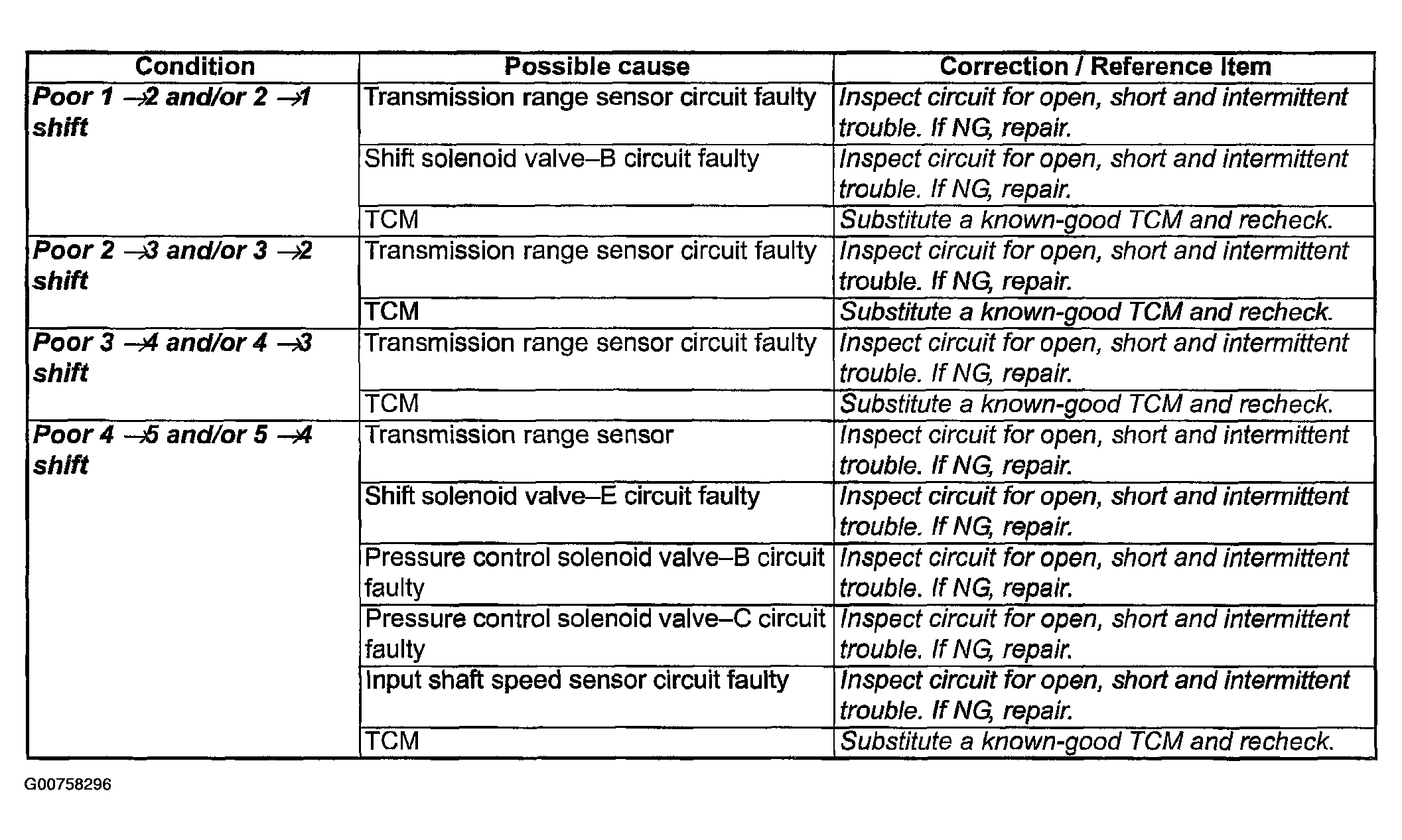

Fig 1: Troubleshooting Diagnosis 1 - Electrical Repair Chart (1 Of 3)
G00758296Courtesy of SUZUKI OF AMERICA CORP.

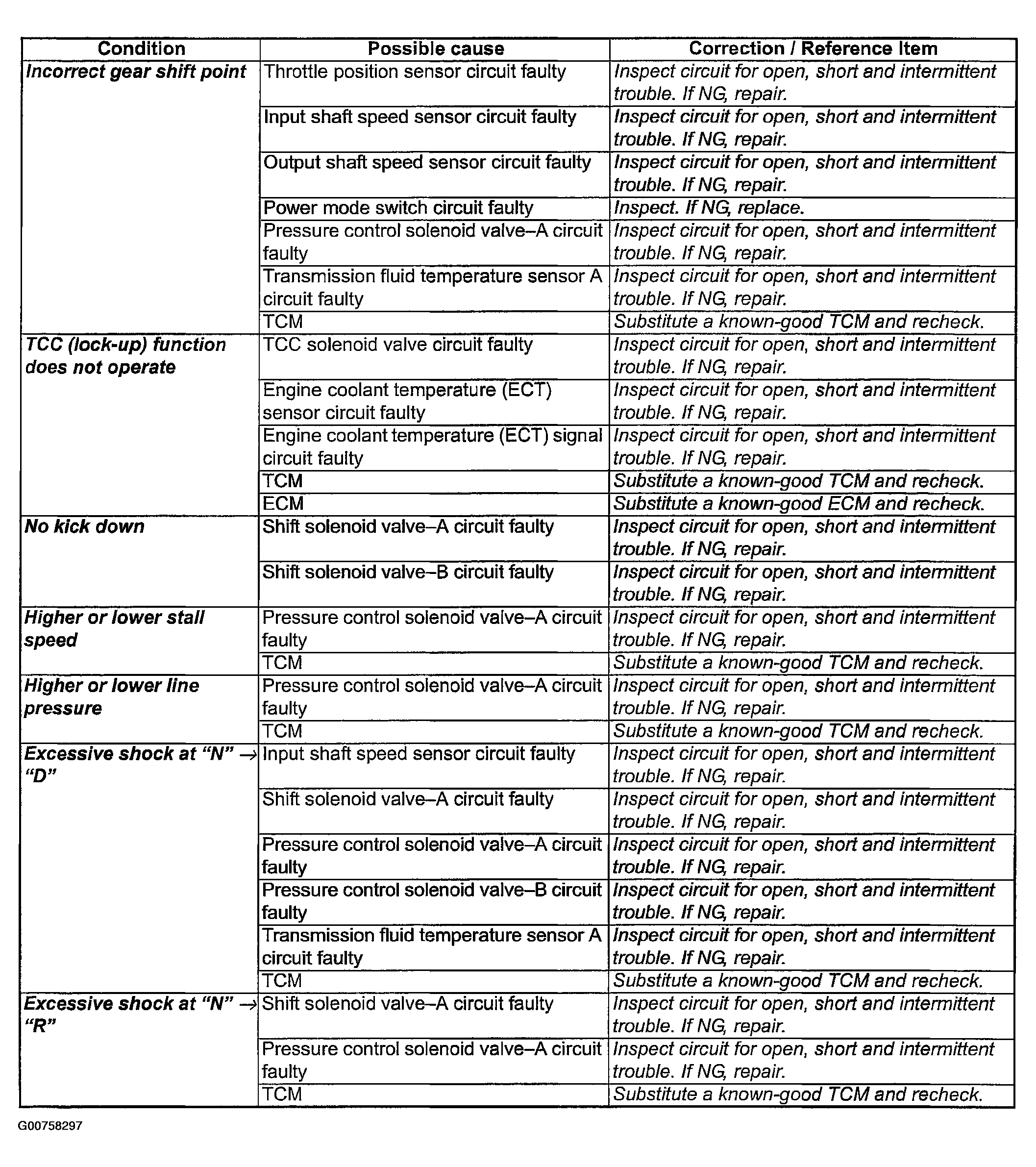

Fig 2: Troubleshooting Diagnosis 1 - Electrical Repair Chart (2 Of 3)
G00758297Courtesy of SUZUKI OF AMERICA CORP.

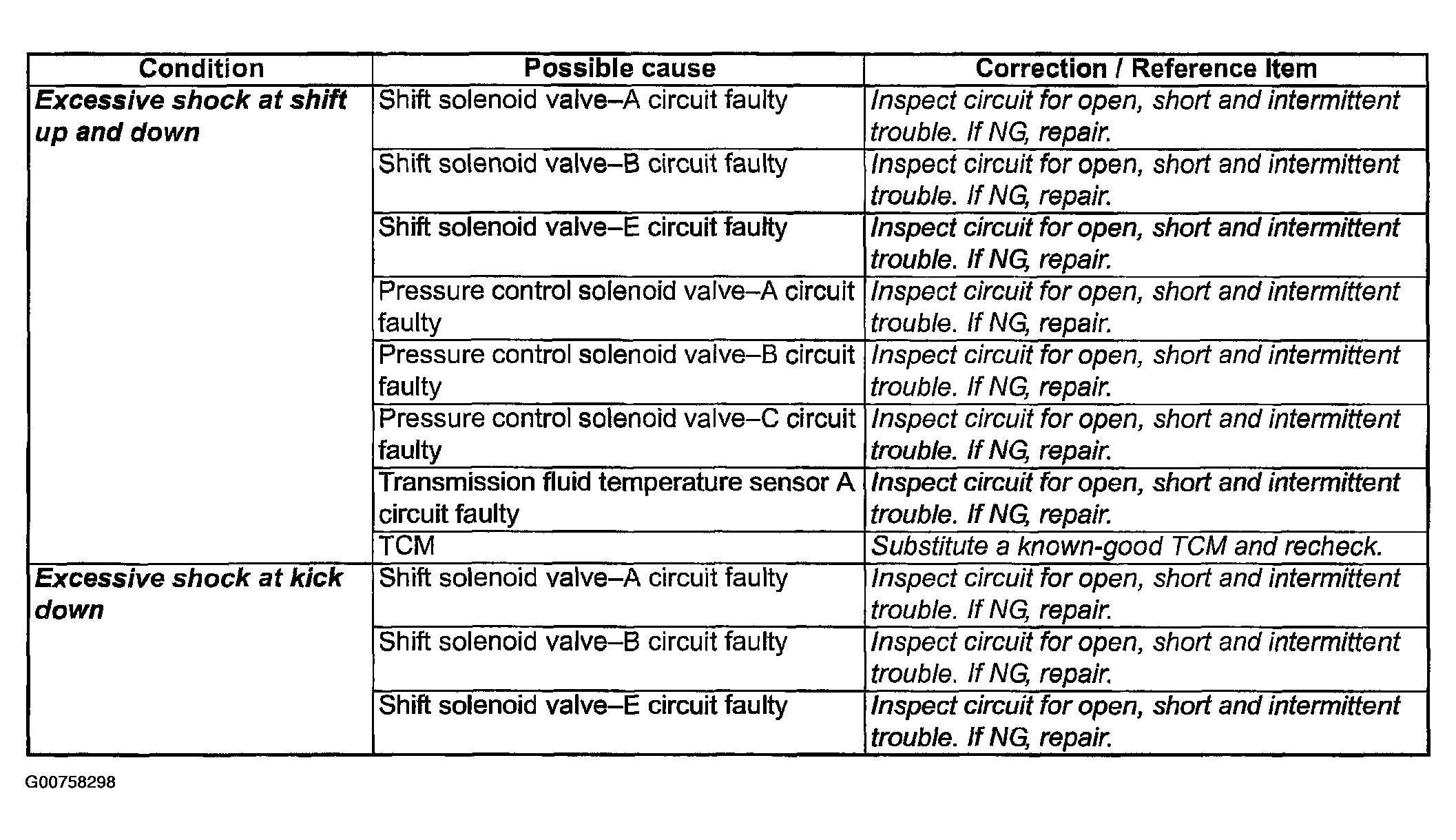

Fig 3: Troubleshooting Diagnosis 1 - Electrical Repair Chart (2 Of 3)
G00758298Courtesy of SUZUKI OF AMERICA CORP.
