Solenoid Valves (Shift Solenoid-A, Shift Solenoid-B, Shift Solenoid-E, TCC Solenoid, Pressure Control Solenoid-A, Pressure Control Solenoid-B, and Pressure Control Solenoid-C) Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative cable at battery.
Pull out fluid level gauge and lift up vehicle.
Remove exhaust No.1 pipe (1) and exhaust pipe bracket (2).
Remove drain plug (3) and drain A/T fluid.
Install drain plug (3).

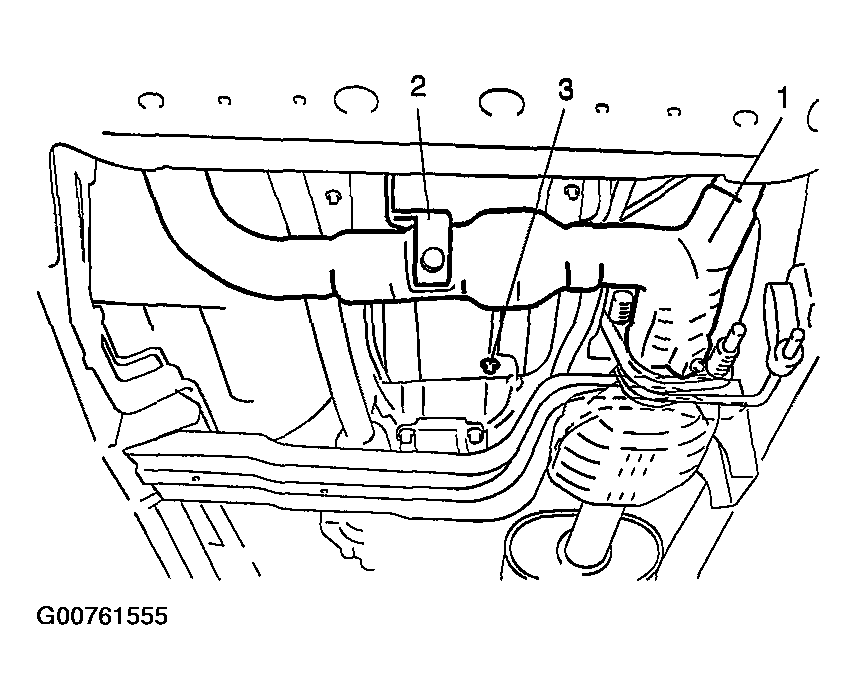

Fig 1: Installing Drain Plug
Courtesy of SUZUKI OF AMERICA CORP.
Remove A/T oil pan (1).

Fig 2: Removing A/T Oil Pan
Courtesy of SUZUKI OF AMERICA CORP.
Remove A/T oil strainer (1).

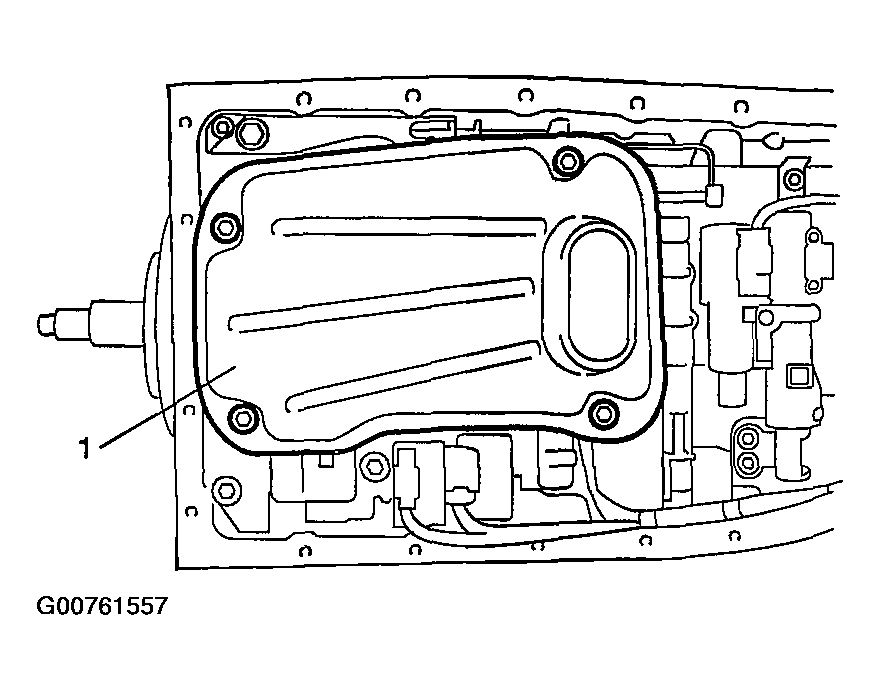

Fig 3: Removing A/T Oil Strainer
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect shift solenoid-A connector (1), shift solenoid-B connector (2), shift solenoid-E connector (3), TCC solenoid connector (4), Pressure control solenoid-A connector (5), Pressure control solenoid-B connector (6) and Pressure control solenoid-C connector (7).
Remove solenoid valves.

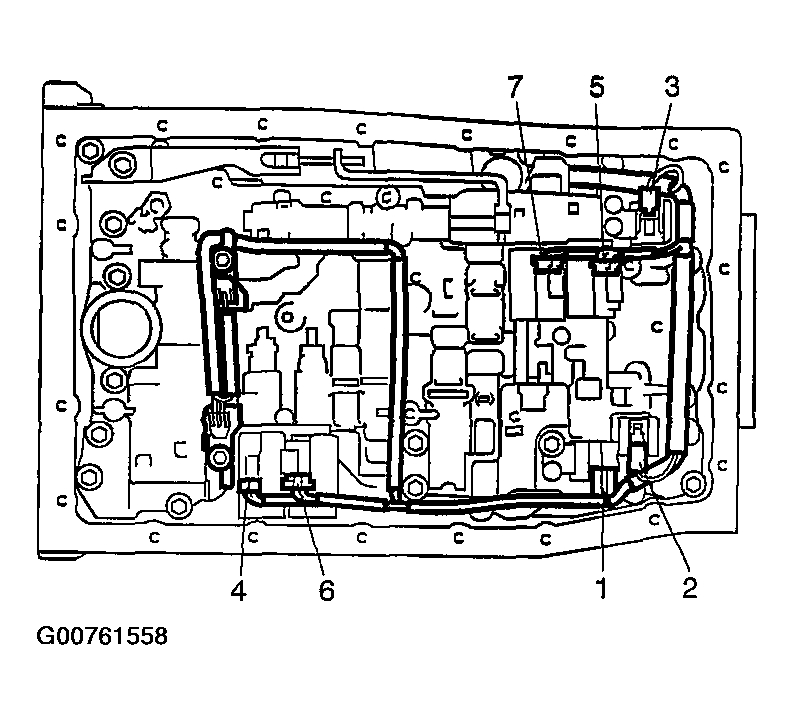

Fig 4: Removing Solenoid Valves

Courtesy of SUZUKI OF AMERICA CORP.
