Resistance check

WARNING: This page is about a different car, the 2004 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Be very careful as dust etc. does not enter when solenoid valves are inspected. Measure resistance between terminal (2) and solenoid valve body. If resistance is out of specification, replace solenoid valve.

Shift solenoid-A, Shift solenoid-B and Shift solenoid-E resistance

  1. Standard: 11 - 15 ohms (at 20 °C (68 °F))

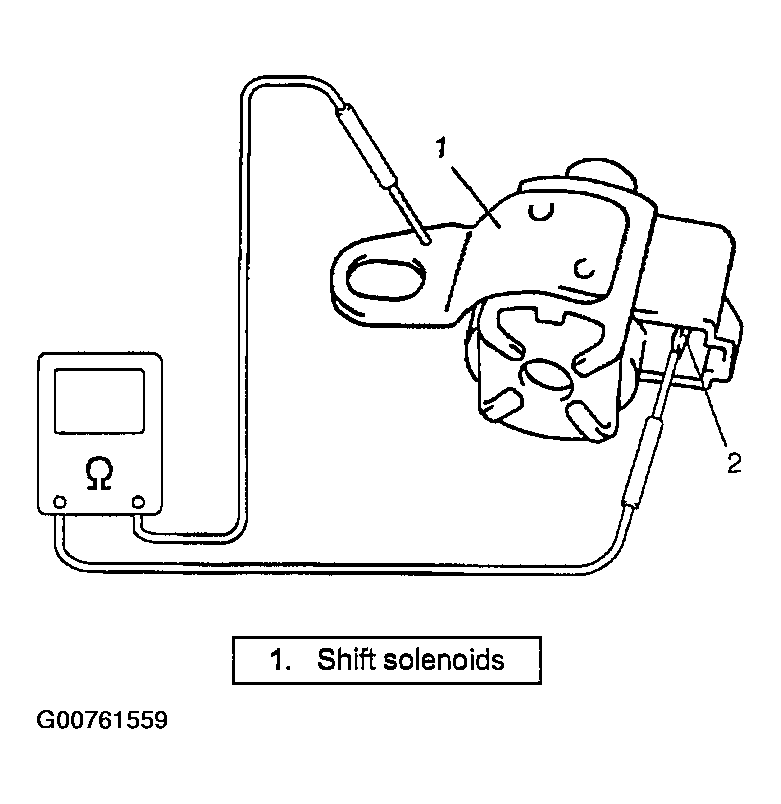

Fig 1: Measuring Resistance Between Terminal & Solenoid Valve Body
G00761559Courtesy of SUZUKI OF AMERICA CORP.
