Operation Check
WARNING: This page is about a different car, the 2004 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.
- With solenoid connected to battery (2) as shown in the figure, check that solenoid valve is actuated with click sound.

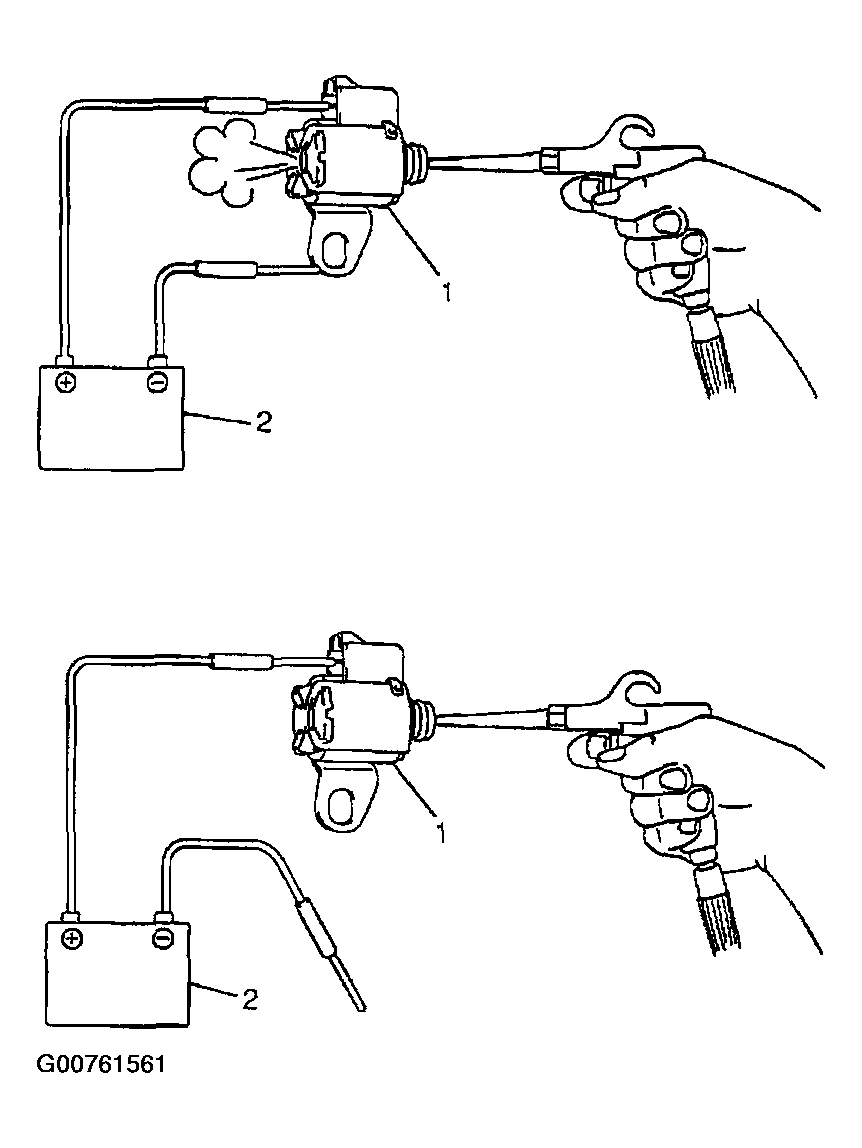

- With shift solenoid valve (1) connected to battery (2), confirm that shift solenoid valve is open by blowing air (50 - 200 kPa, 0.5 - 2.0 kg/cm2, 7 - 28.5 psi) into solenoid valve as shown in the figure.
- With shift solenoid valve (1) not connected to battery (2), confirm that shift solenoid valve is closed by blowing air (50 - 200 kPa, 0.5 - 2.0 kg/cm2, 7 - 28.5 psi) into solenoid valve as shown in the figure.
CAUTION:
Do not insert air gun against strainer installed on inlet of solenoid valve too deeply, when blowing air into solenoid valve. If not, the strainer will be damaged.
