Output Shaft Speed Sensor Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative cable at battery.
  2. Hoist vehicle.
  3. Disconnect output shaft speed sensor connector.
  4. Remove output shaft speed sensor (1) from transmission.

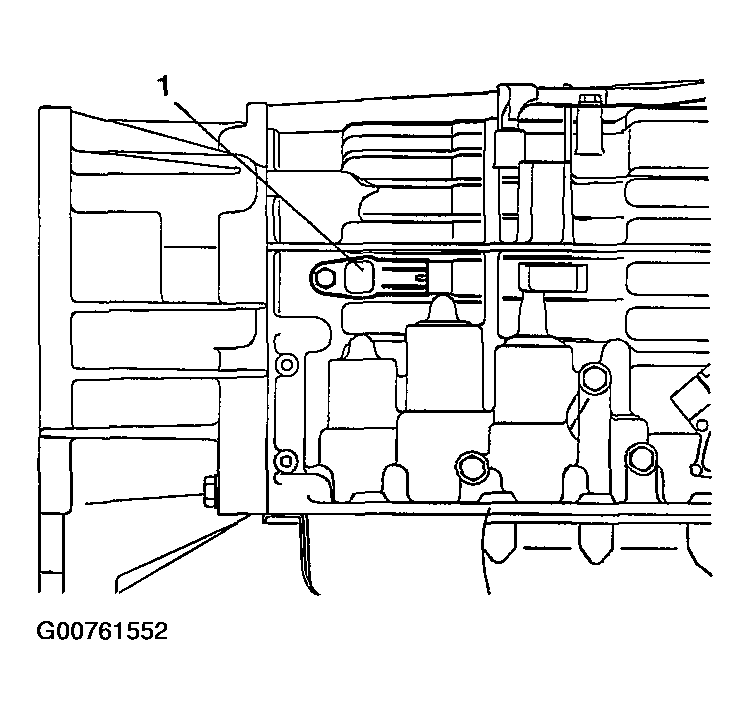

Fig 1: Removing Output Shaft Speed Sensor
G00761552Courtesy of SUZUKI OF AMERICA CORP.
