Clutch Disc
WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

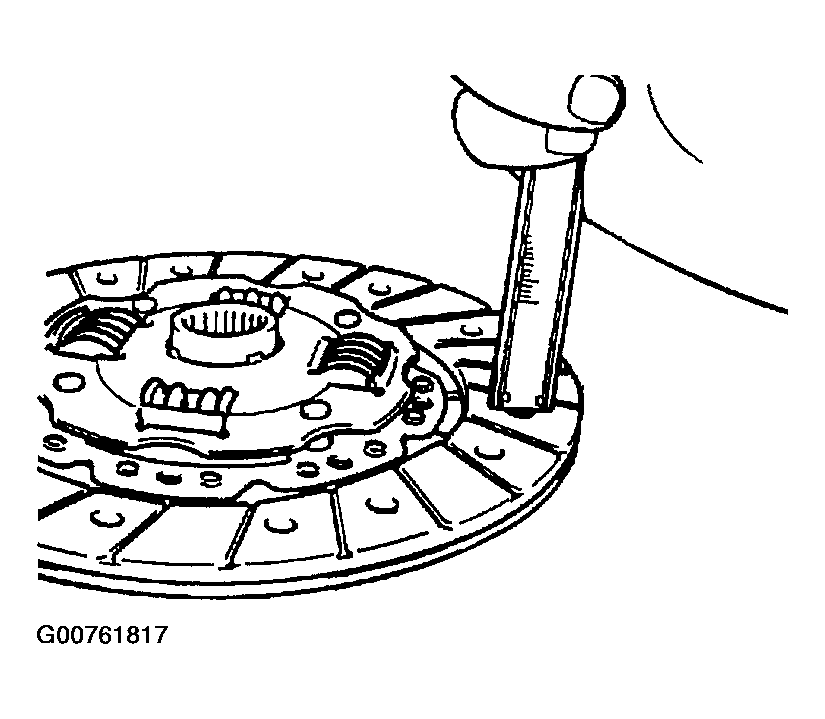

Measure depth of rivet head depression, i.e. distance between rivet head and facing surface. If depression is found to have reached service limit at any of holes, replace disc assembly.
Rivet head depth
Standard: 1.6 mm (0.06 in.)
Service limit: 0.5 mm (0.02 in.)
