Manual Transmission Rear Case Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Remove countershaft gutter (2) from transmission rear case (1).

Fig 1: Removing Countershaft Gutter
Courtesy of SUZUKI OF AMERICA CORP.

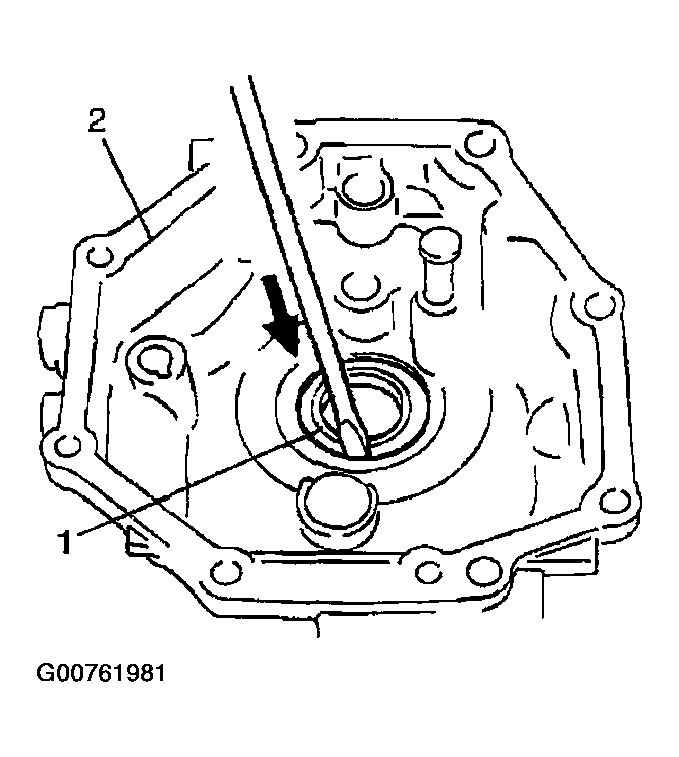

Take out oil seal (1) from rear case (2).

Fig 2: Taking Out Oil Seal
Courtesy of SUZUKI OF AMERICA CORP.
Remove interlock cam plug (1) by using Torx(R) wrench (2).

Fig 3: Removing Interlock Cam Plug
Courtesy of SUZUKI OF AMERICA CORP.
Remove pin by using special tool.
Special tool

(A): 09922-85811

Fig 4: Removing Pin
Courtesy of SUZUKI OF AMERICA CORP.
Pull out interlock cam component (1).

Fig 5: Pulling Out Interlock Cam
Courtesy of SUZUKI OF AMERICA CORP.
