Automatic Gear Shift Diagram

WARNING: This page is about a different car, the 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Automatic shift schedule as a result of shift control is shown. In case that select lever is shifted to "L" at a higher than 55 km/h or 34 mile/h speed, 2nd or 3rd gear is operated and then down shifts to "1st" at a speed lower than that. No up shift is available in "L".

The same as, the select lever is shifted to "2" at a higher than 105 km/h (66 mile/h) speed, 3rd gear is operated and then down shifts to "2nd" at a speed lower than that.

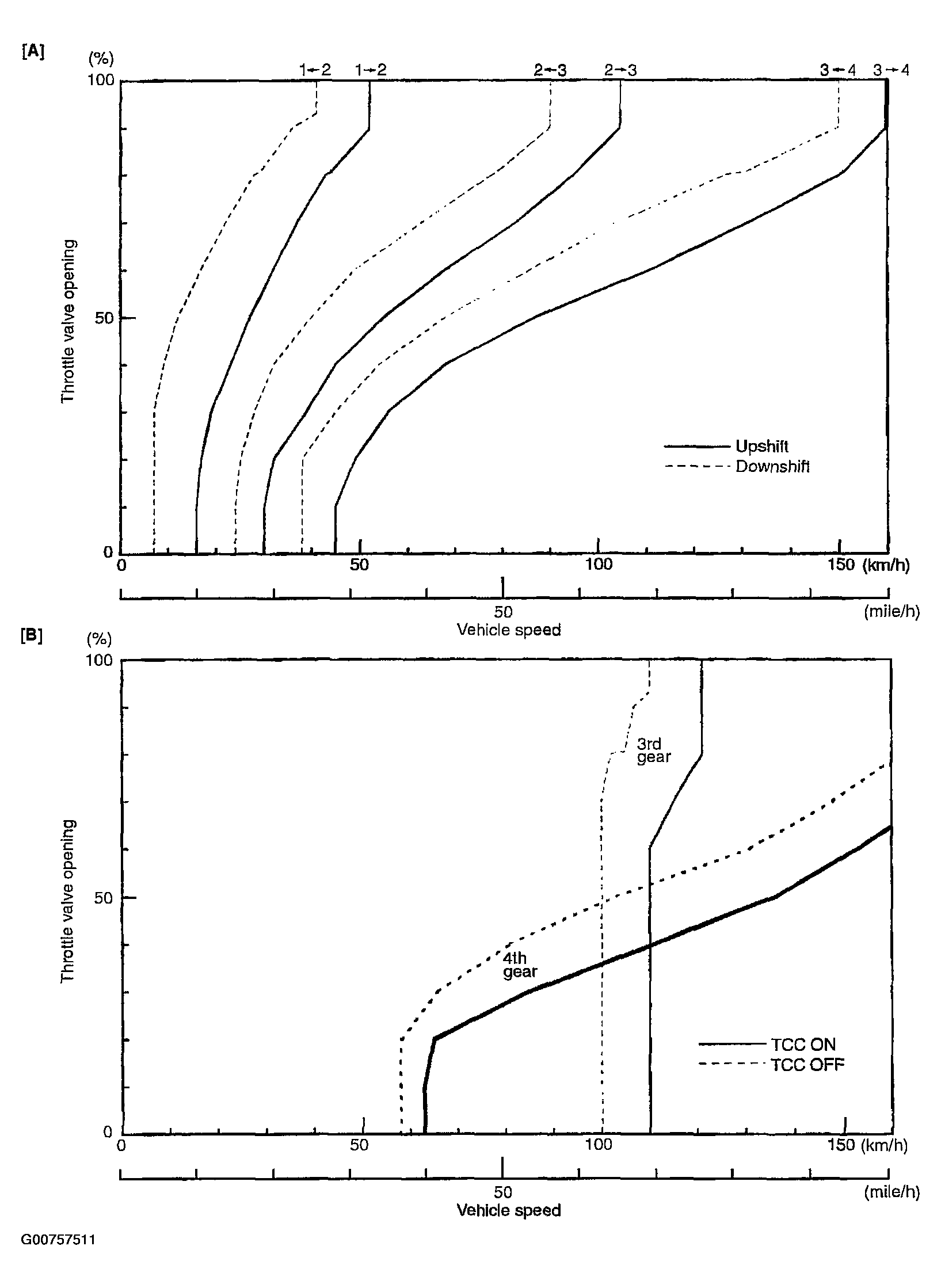

Fig 1: Automatic Shift Schedule For Power Mode

Courtesy of SUZUKI OF AMERICA CORP.

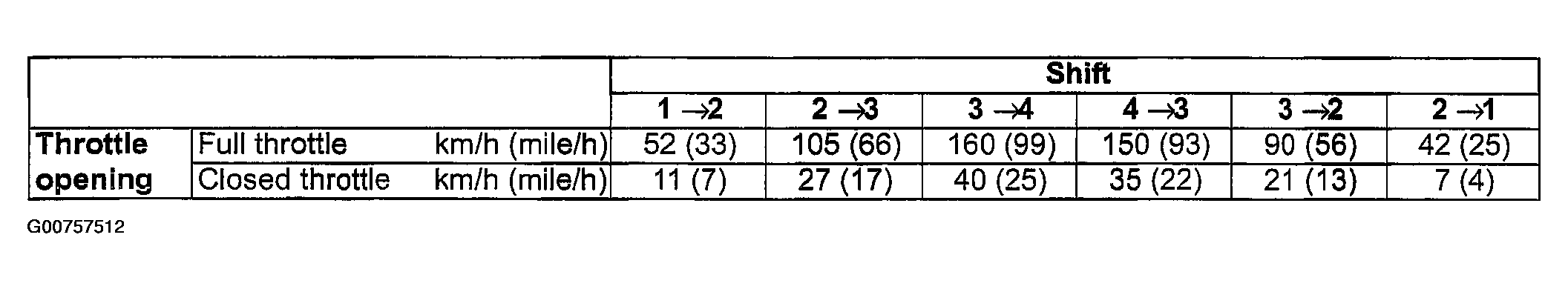

Fig 2: Gear shift diagram [A] and TCC lock-up diagram [B]

Courtesy of SUZUKI OF AMERICA CORP.

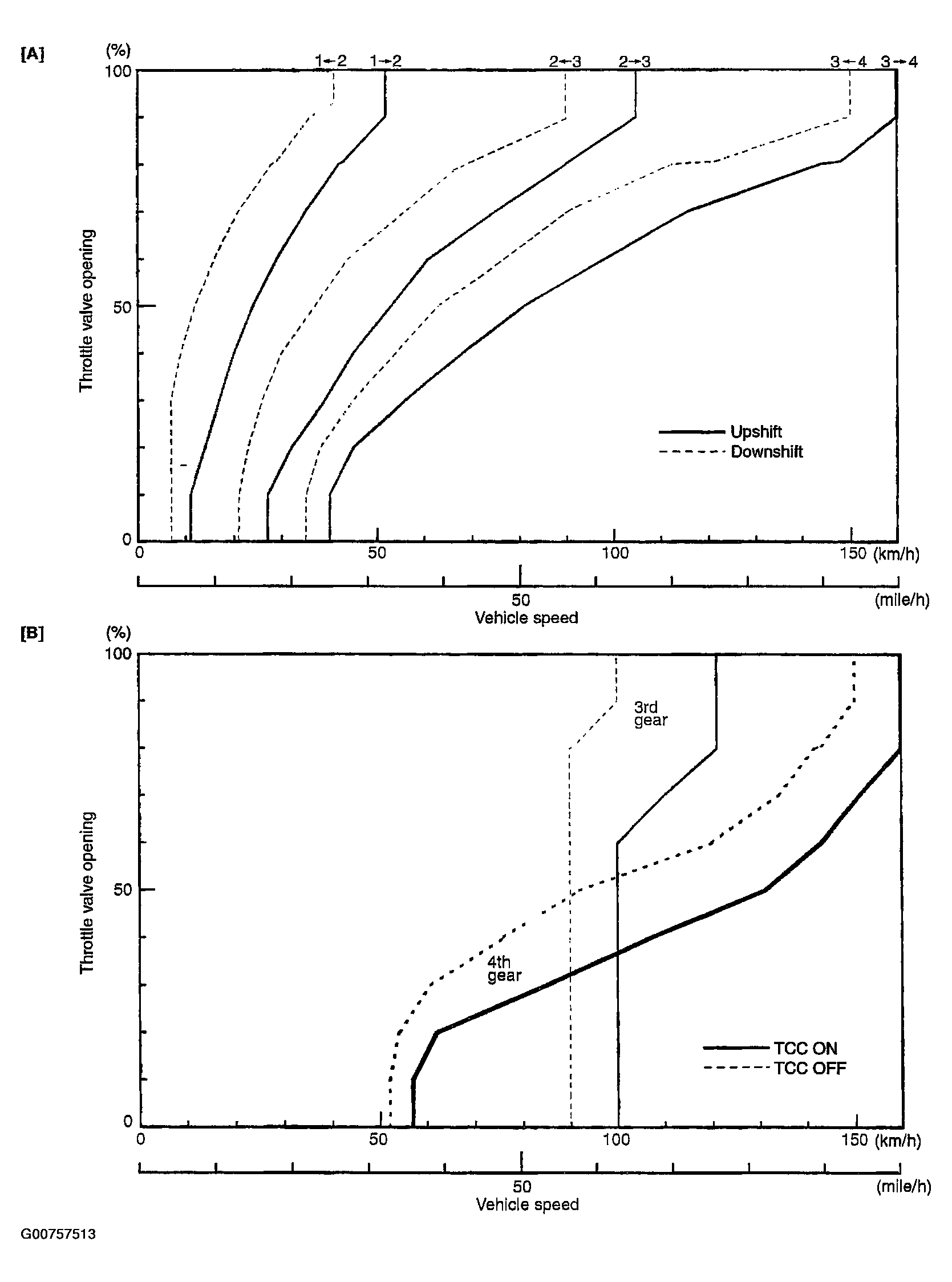

Fig 3: Automatic Shift Schedule For Normal Model

Courtesy of SUZUKI OF AMERICA CORP.

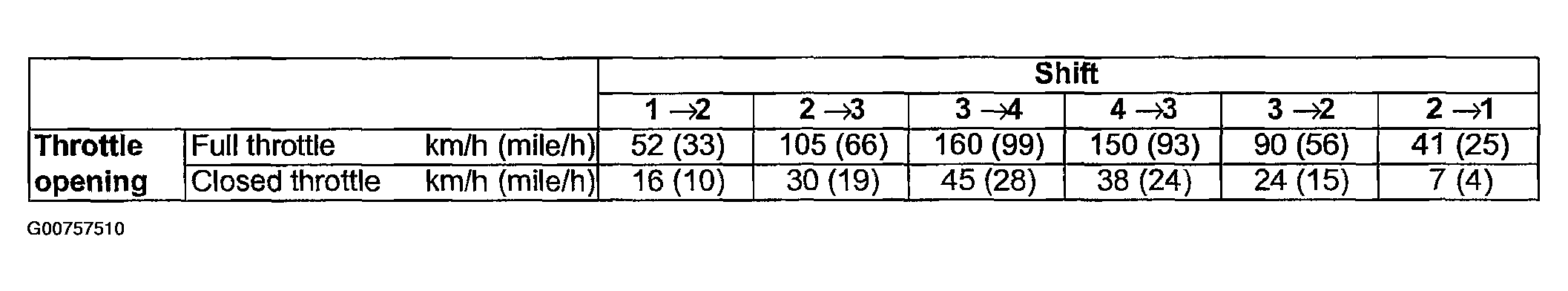

Fig 4: Gear shift diagram [A] and TCC lock-up diagram [B]

Courtesy of SUZUKI OF AMERICA CORP.
