Visual Inspection

WARNING: This page is about a different car, the 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Visually check the following parts and systems.

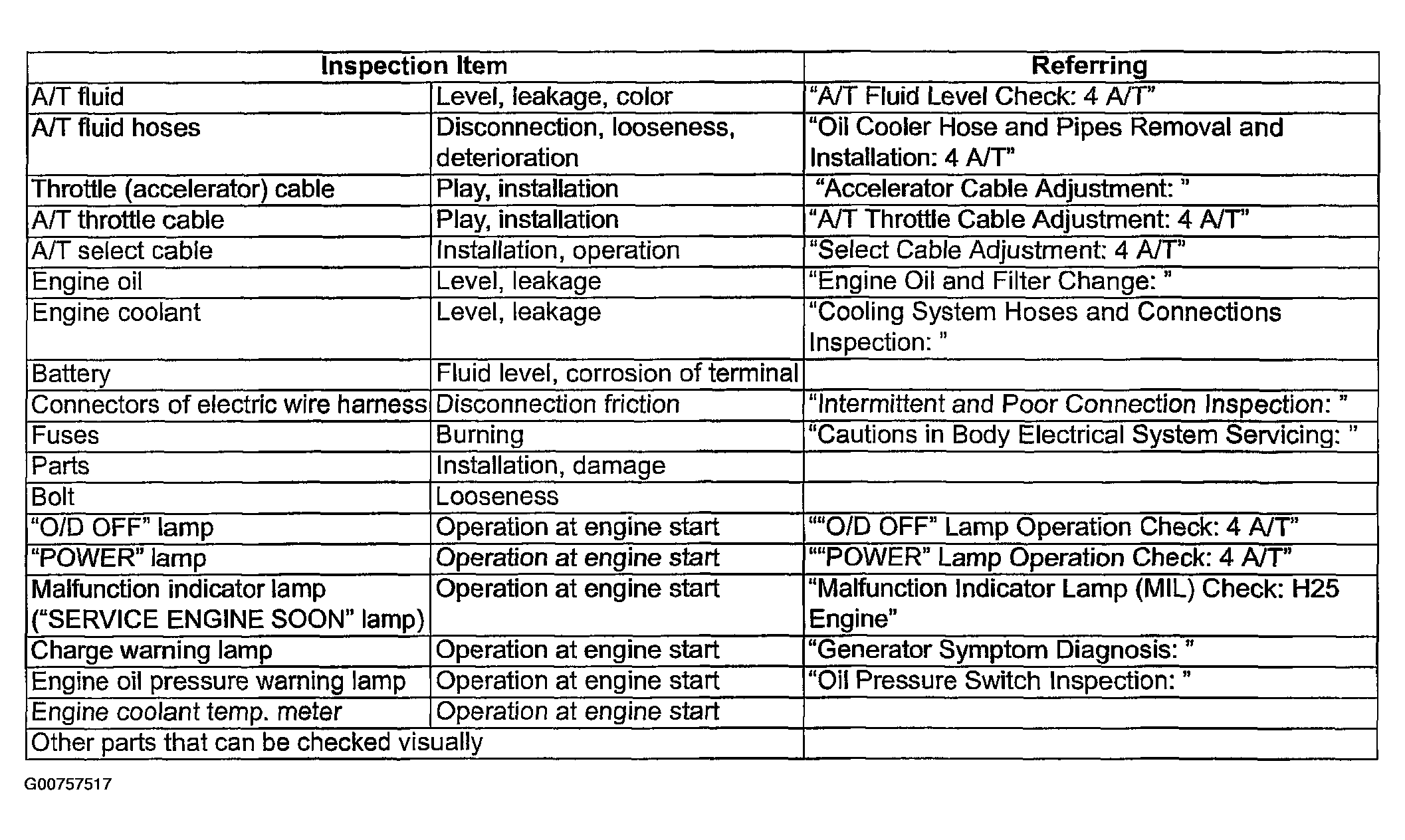

Fig 1: Visual Inspection Table
G00757517Courtesy of SUZUKI OF AMERICA CORP.
