DTC P1875: "4WD LOW" Switch Circuit Malfunction (If Equipped): Wiring Diagram

WARNING: This page is about a different car, the 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

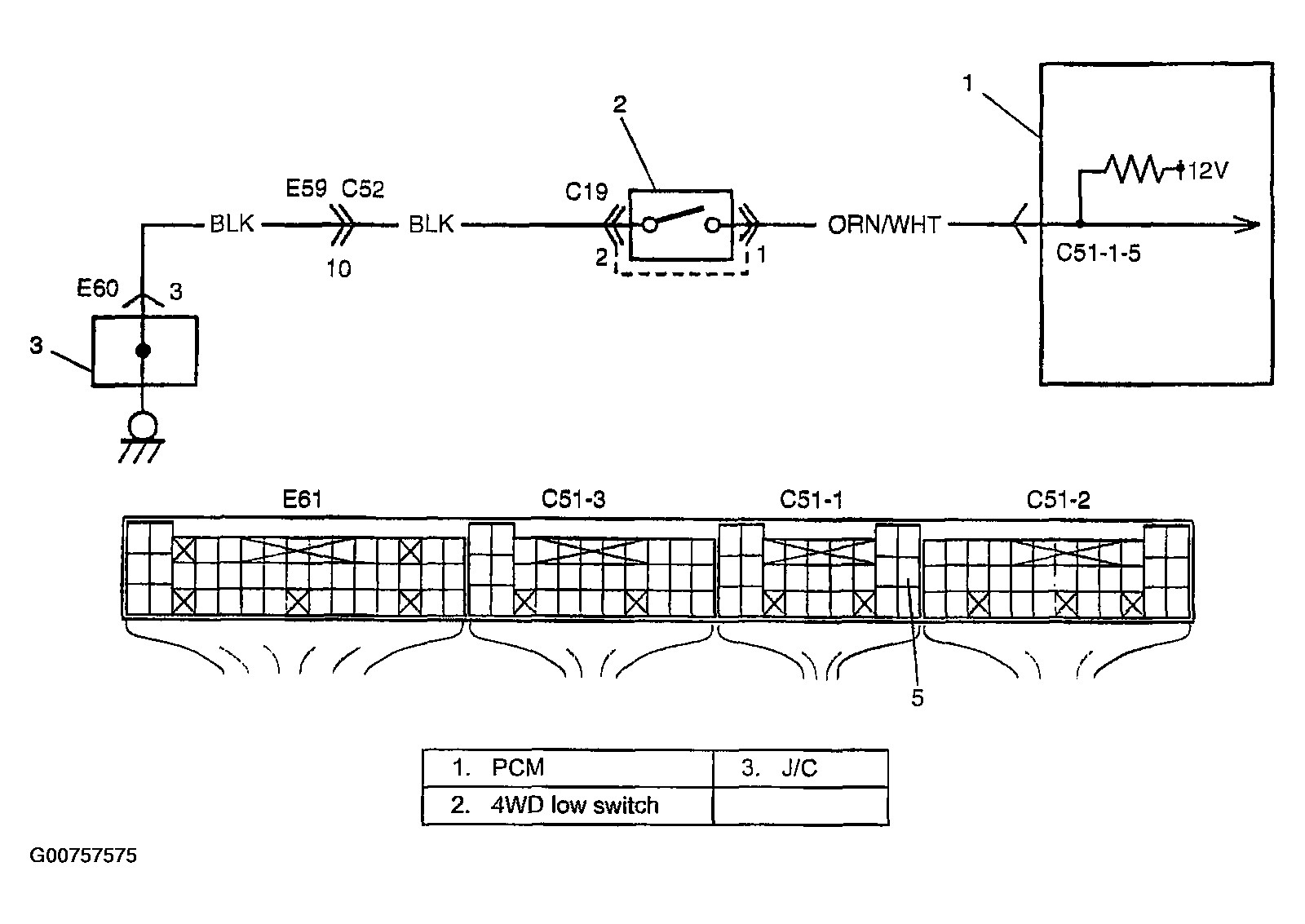

Fig 1: DTC P1875 Wiring Diagram
G00757575Courtesy of SUZUKI OF AMERICA CORP.
