Diagnostic Trouble Codes Trouble Shooting

WARNING: This page is about a different car, the 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

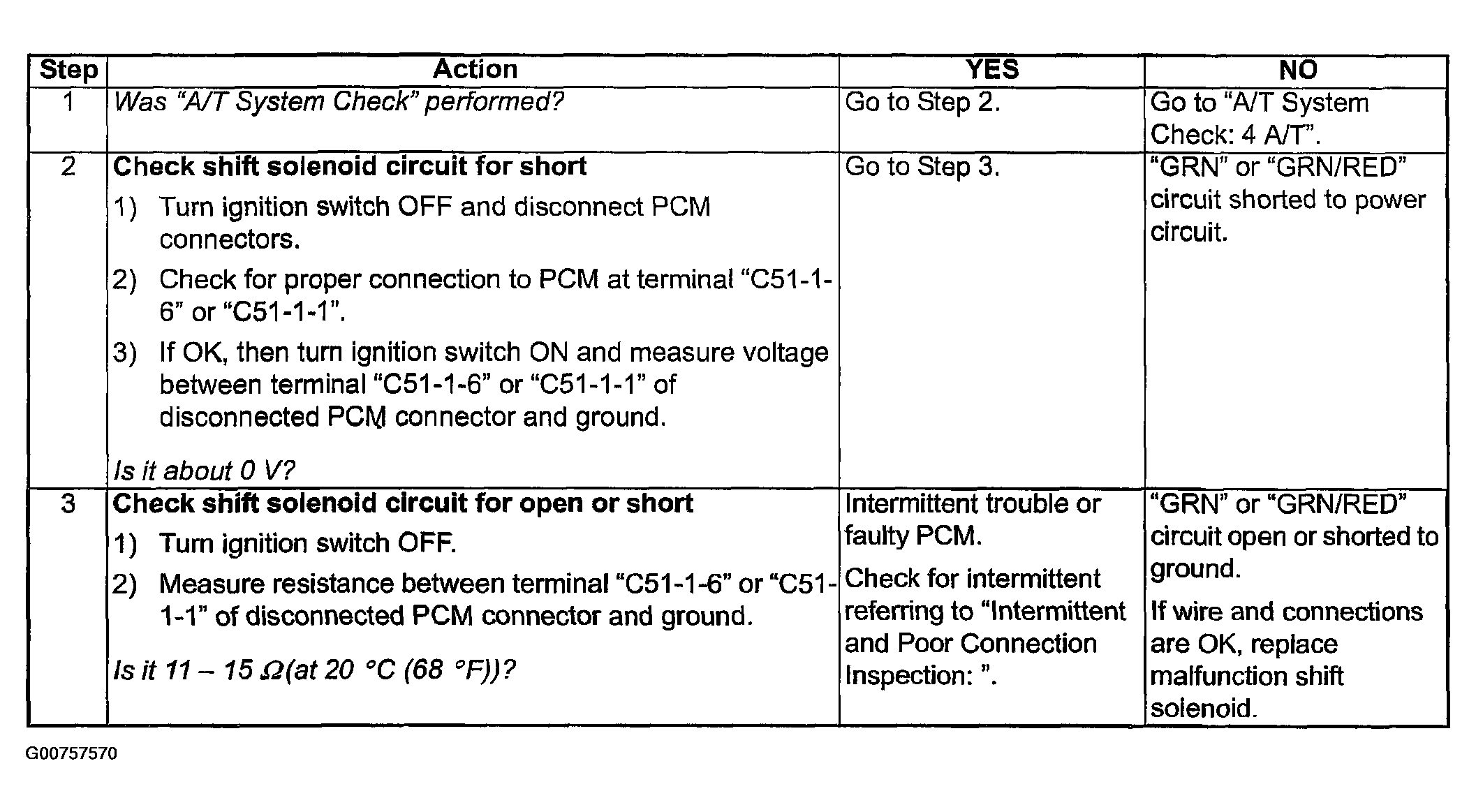

Fig 1: DTC P0973/P0974/P0976/P0977 Trouble Shooting Chart
G00757570Courtesy of SUZUKI OF AMERICA CORP.
